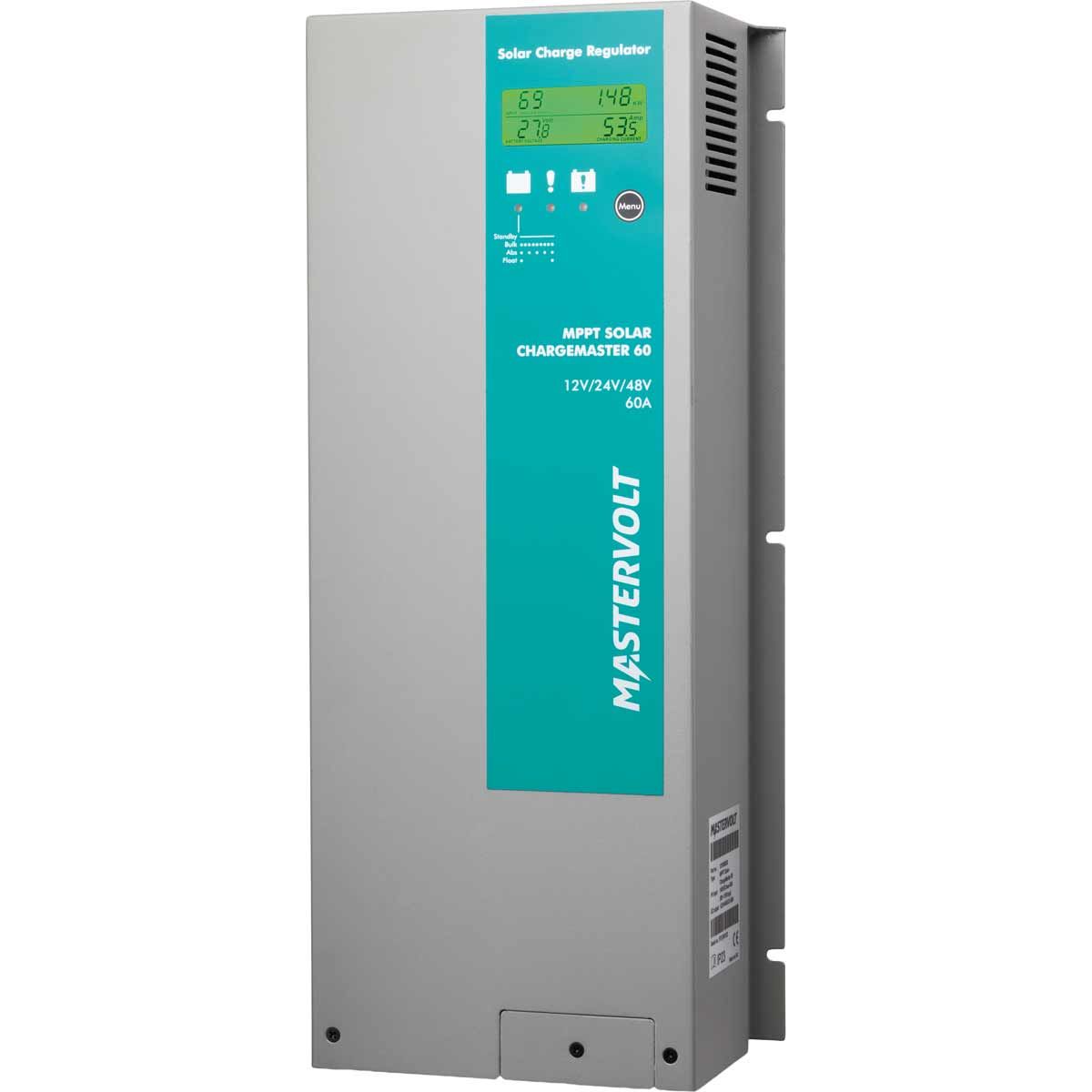

Mastervolt ChargeMaster Solar Regulator SCM60 MPPT (12V / 24V / 48V)
Mastervolt ChargeMaster Solar Regulator SCM60 MPPT (12V / 24V / 48V)
SKU:M131906000
Couldn't load pickup availability
Mastervolt SCM60 solar charge regulator 131906000 is based on Maximum Power Point Tracking (MPPT) technology and is an extremely efficient method of charging your batteries with solar energy. Using MPPT, you can charge batteries up to 30% faster than a PWM regulator, with the same number of solar panels. The solar charge regulator is suitable for both 36 cells panels (12V) and 60 cell and 72 cells panels (24V). Because the maximum input voltage is up to 145V, it can be connected to multiple panels in series, reducing cabling and power loss. The Mastervolt SCM60 Solar regulator has a robust casing and is protected against condensation in conformity with IP23. It also has built-in protection against overload, high/low battery voltage, overheating, short circuits and reverse polarity, all of which makes it a safe and reliable option for the marine environment. A temperature sensor with 6m cable is included.
The Solar ChargeMaster controller is suitable for all kinds of lead-acid batteries in 12V and 24V. The device features a large display and switchable output with evening / night lighting function. It is safe, user friendly and flexible.
Battery Charger Specifications:
System voltage (battery): 12/24/48 V auto select
Max charge current: 60A
Battery types: AGM, Gel, flooded, Lithium Ion
Battery temperature sensor: included
Switchable output (max. current): via MasterBus
Energy consumption (night): <1mA
Specifications solar input (DC):
Nominal PV Voltage (12V): 13.2-115V
Nominal PV Voltage (24V): 26.4-115V
Nominal PV Voltage (48V): 52.8-115V
Max PV Voltage: 145V
Nominal PV current: 50A
Max PV power (12V system): 900 Wp
Max PV power (24V system): 1800 Wp
Max PV power (48V system): 3600 Wp
Max efficiency: >98%
Static MPP efficiency: 99.9%
Mastervolt 131906000 General Specifications:
Cooling: passive
Display/read-out: backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting.
Grounding: terminal
IP Rating: IP23
SCM60 Solar Charge Regulator Technical Specifications:
Technology: MPPT (Maximum Power Point Tracker)
Protections: over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients.
Relative humidity: 95% non-condensing
