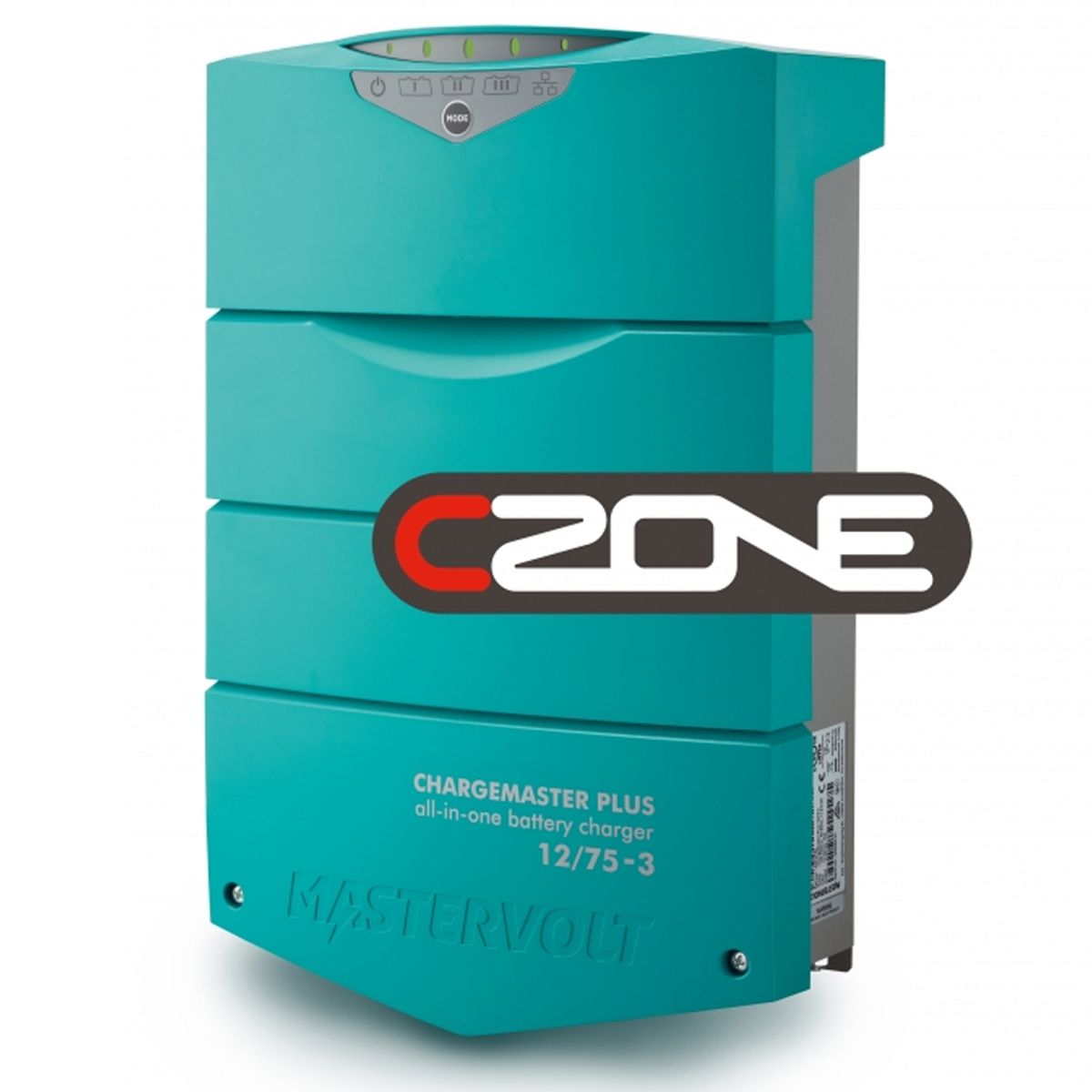

Mastervolt ChargeMaster Plus Battery Charger (12V / 75A)
Mastervolt ChargeMaster Plus Battery Charger (12V / 75A)
SKU:M44310755
Couldn't load pickup availability
The Mastervolt ChargeMaster Plus battery charger is designed to help batteries perform better and last longer, providing fast and complete charging wherever you are. It also performs the job of a battery isolator, prioritising charge to the battery that needs it most. The energy from the alternator is fed through to the batteries with the integrated VSR, meaning all your charging needs are provided by the ChargeMaster Plus. The charger is compact and the robust connections are ergonomic, making the unit very quick and easy to install.
The 3-STEP+ charging memory ensures more power and a longer life for your batteries, and will even charge depleted batteries. The ChargeMaster is suitable for all types of battery, and also has a wide input voltage range, which ensures perfect automatic operation anywhere in the world.
ChargeMaster Plus is MasterBus compatible, meaning they can be connected easily to a MasterBus system where you can operate and monitor all Mastervolt devices in one panel. In addition, they can also be linked via CZone and NMEA 2000 integrations without additional equipment, meaning it can link up with displays, shunts and power systems. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.
Communication & monitoring
Communication interfaces: MasterBus, CZone, NMEA
General specifications
Nominal output voltage : 12 V
Max. output current primary output: 75 A
Smart In-/Output voltage: 12 V
Smart In-/Output current: 5-40 A (adjustable)
Smart In-/Output input current: max. 40 A
Total charge current: 75 A at 14.4 V
Max. AC current (230 V / 120 V): 6.5 A / 13 A
Number of battery outlets: 3 (max.)
Battery bank size: 320-800 Ah
Nominal input voltage: 120/230 V (80-275 V) 50/60 Hz
AC connection: screw terminals, suitable up to up to 6mm²
Power supply mode: yes
Galvanic isolation: yes
Display/read-out: LED display
Dimensions, hxwxd: 384 x 250 x 127mm (15.1 x 9.8 x 5.0 inch)
Weight: 5.9 kg (13.0 lb)
Compliance: CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RMRS, RRR
Technical specifications
Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
Temperature compensation: -30 mV/°C / -17 mV/°F; temperature sensor included
DC voltage compensation: through automatic compensation or MasterShunt
Power consumption (DC side): < 2 mA (MasterBus off)
Current Control function: yes, through MasterBus or CZone
Power factor control: > 0.98
Temperature range (ambient temp.): -25 °C to 80 °C, derating < 0 °C and > 40 °C (-13 °F to 176 °F)
Cooling: vario fan
Protection degree: IP23, vertical mounting
Protections: over-temperature, overload, short circuit, high/low battery voltage, ignition protection
Charger Status Interface (alarm contact): yes, using a Multipurpose Contact Output (code M77030500)
