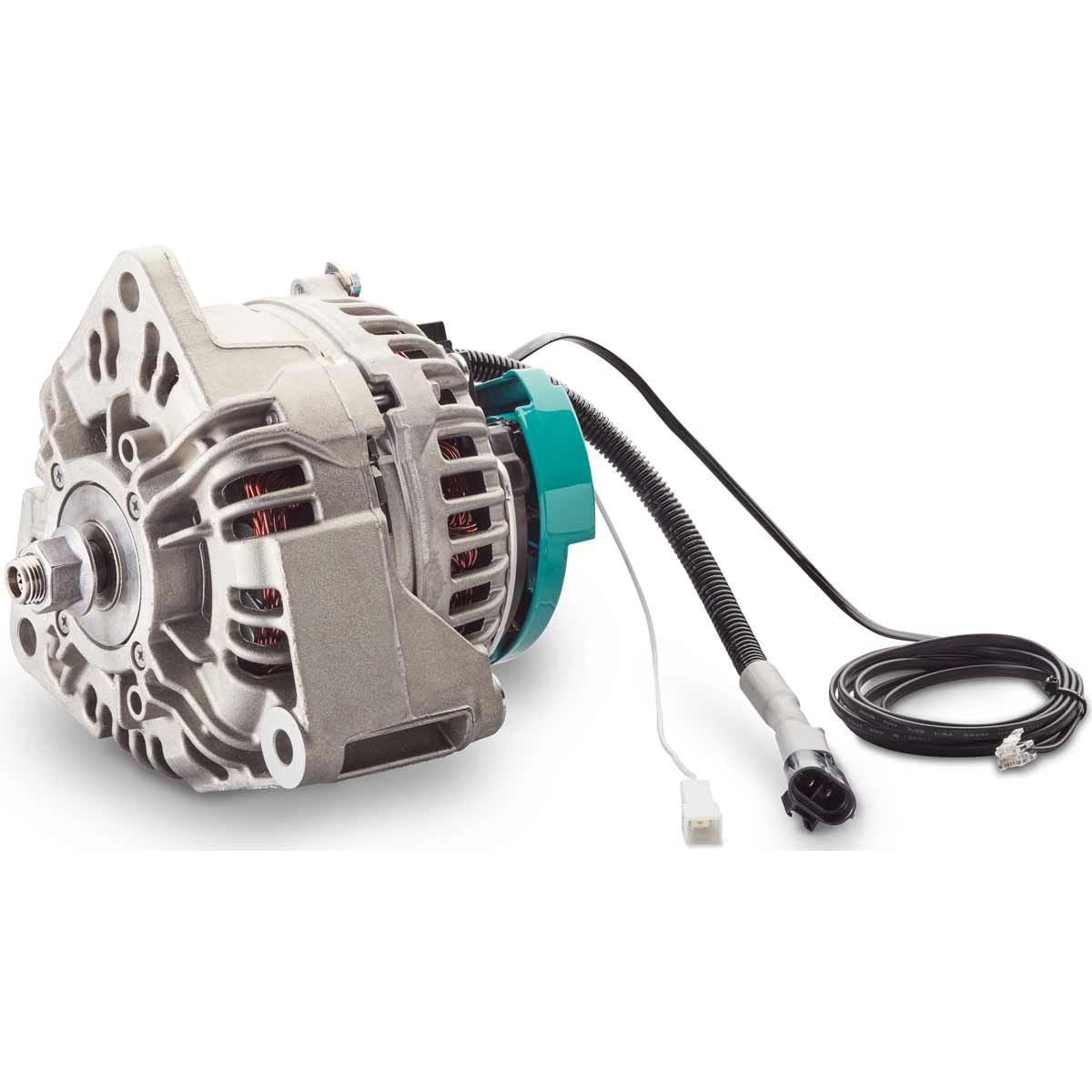

Mastervolt Alpha Compact Alternator 28/150 for Volvo (24V / Pulley)
Mastervolt Alpha Compact Alternator 28/150 for Volvo (24V / Pulley)
SKU:M46228152
Couldn't load pickup availability
Alpha Compact 28/150 VP for Volvo Penta Engines.
Alpha Compact alternators are optimised to deliver continuous high power output in energy storage applications. Combined with Mastervolt Alpha Pro regulators, they create a high performance, plug-and-play charging solution. This combination is suitable for all battery types, including Lithium Ion.
These automotive style alternators offer many advantages. Most manufacturers offer a second alternator option, better known as PTO or Power Take Off option. This provides a straight-forward way to add an Alpha Compact as a second alternator. Alternatively, the stock alternator can be replaced with an Alpha Compact to obtain a powerful, MasterBus enabled 3-step charger.
Compared to conventional alternators, Alpha Compact offers lower weight, smaller dimensions and reduced fuel consumption. This is made possible by its open construction with double internal fans. An integrated temperature sensor controls the operating temperature.
The Alpha Compact VP alternators are fitted with a multi-groove pulley as standard (Mastervolt 48420170). Other Alpha Compact models come without pulley. Mastervolt offers a complete range of multi-groove pulleys.
Applications: Worldwide use in marine, mobile, infrastructure and industrial applications.
Please note: product excludes Alpha Pro III charge regulator.
General specifications:
Charge regulation: via optional Alpha Pro III charge regulator (art.no. 45513000)
Isolated operation: yes, with optional isolation bushings
Rotational direction: clockwise
Galvanic isolation: non-isolated
Cooling: integrated dual fan
Mounting: swivel arm
Pulley included: yes (product code 48420170)
Weight: 7.9 kg (17.4 lb)
Technical specifications:
System voltage: 24V DC
Nominal current (at 6000 rpm, 25°C): 150A
Charge current (at 1800 rpm, 25°C): 30A
Cut-in speed: 1700 rpm
Max. rotational speed: 16,000 rpm
Power Take Off: 8.4 kW (11.4 hp)
Max. operating temperature: 120°C (248°F)
Connections: positive output stud = 2x M8; W (rpm) signal connection = isolated fast-on; field current connection = Mastervolt plug
Temperature sensor: integrated, RJ12 connection
