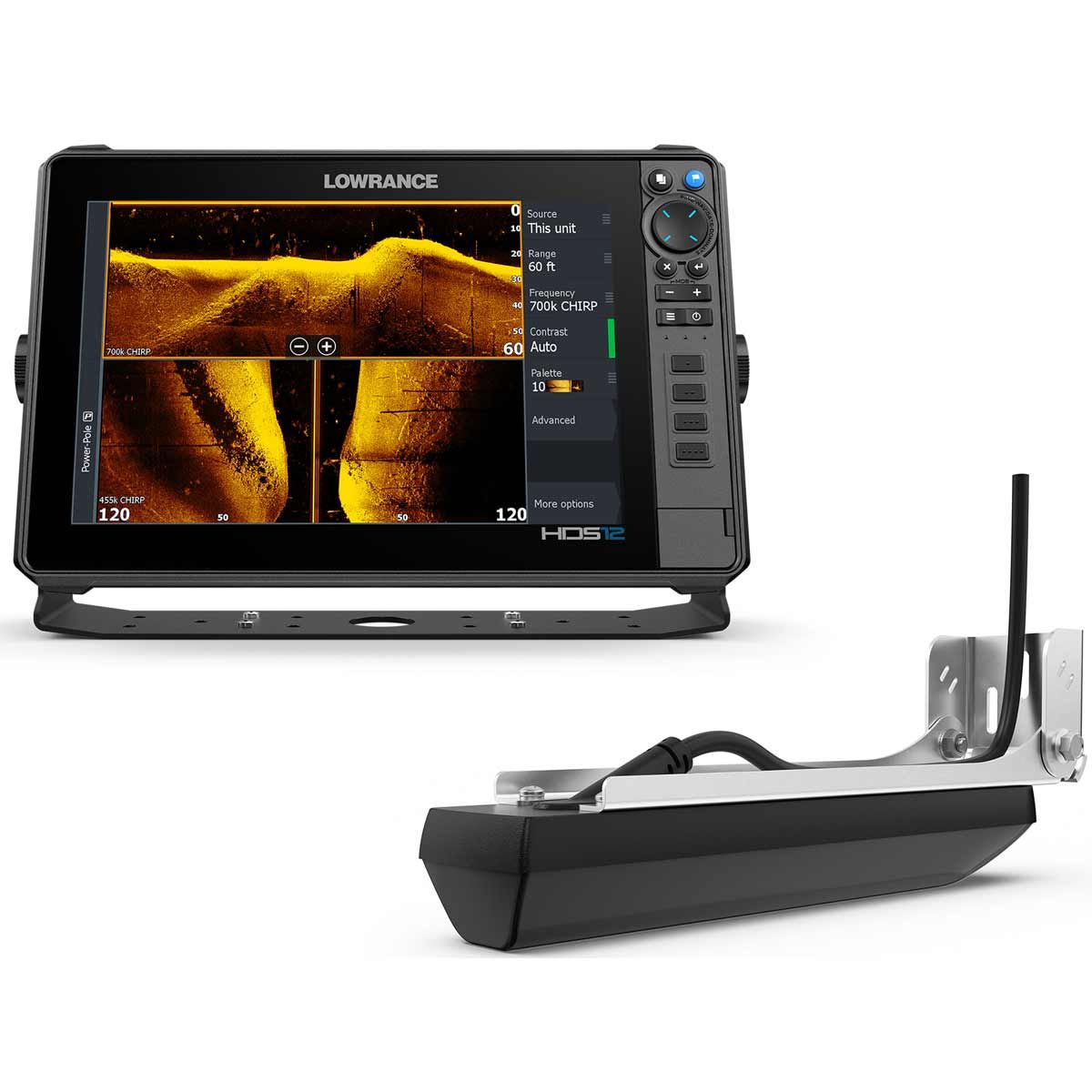

Lowrance HDS 12 Pro Fishfinder with Active Imaging HD 3-in-1 (ROW)

See more and catch more with the Lowrance HDS PRO, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget 2 Live Sonar and new, ultra high-definition ActiveImaging HD.

Lowrance's clearest sonar ever, Active Imaging HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging. FishReveal has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module)

ActiveTarget 2 Live Sonar provides wider, higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget transducers, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.

The ultimate clarity - The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great.

The SolarMAX HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses – a real difference maker on the water. See unmatched clarity on-screen with Lowrance's superior, high-resolution Active Imaging HD sonar and ActiveTarget 2 Live Sonar technologies.

All the chart details - Powerful, intuitive charts are key to any fishing system, helping anglers find the best fishing spots and navigate there safely. HDS Pro comes pre-loaded with C-MAP charts, and the option to upgrade to either C-MAP DISCOVER or REVEAL, so you can spend more time catching fish and less time finding them. C-MAP charts bring great routes, social layers, and even real-time mapping with the powerful Genesis Live. HDS PRO is also compatible with Navionics and other chart suppliers.

Complete bow to stern boat control - HDS PRO gives you full bow-to-stern networking and control of the Ultimate Fishing System.

With HDS PRO at the heart of your fishing system, it's easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS PRO offers support for the complete range of top fish-finding technologies – from ActiveTarget 2 Live Sonar and Active Imaging HD to touchscreen control of Power-Pole Anchors, Ghost Trolling Motor and more.

Expand your system - taking advantage of radar, autopilot and NMEA 2000® compatibility - and add SiriusXM Weather/Audio to monitor changing weather conditions and to listen to your favourite tunes.

More options - The expanded options and capabilities of HDS PRO give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS PRO can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active Imaging Transducer to enable the new FishReveal SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget Transducer to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.

Specifications:
Autopilot:
Manoeuvres / Turn Patterns: Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes: Course, Heading, Waypoint, Power Steer

Connectivity:
Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet: 1x 100 Mbit, 6 max MFD's on a network
NMEA 0183: 1x RS422 port Baud rates: 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200
NMEA 2000: 1x Micro-C
PC Connectivity: None
Video: Output: No, Input: Composite video RCA - single channel via optional adaptor
WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module

Display:
Backlight Colour: Pure White LED
Resolution: 1280x720
Screen Brightness: >1200 Nits
Size and Type: 12" (305mm), SolarMAX HD IPS technology, Multi-touch, P-CAP

Environment
Humidity: IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
Shock and Vibration: 100,000 cycles of 20 G

GPS:
Correction: DGPS, WAAS
GPS Receiver Channels: 16
Position Accuracy: 20m RMS
Time to First Fix: 30s
Update rate: 10 Hz

MFD:
AIS: AIS Chart and Radar overlay. Target vessel details.
Autopilot: Outboard PilotNAC-1NAC-2Ghost Trolling Motor, MotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway)
Cartography included: C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
Cartography supported: C-MAP Reveal, C-MAP Discover, C-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+) C-MAP Genesis, C-MAP Precision Contour HD (AMER only) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
Digital Switching: Czone Naviop
External Storage: 2 micro SD cards up to 32GB
GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage: 8.0 GB Internal
Multimedia: SonicHub, SonicHub2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Radar (inc. compatibility): 4G & 3G (Broadband) Halo20/20+ & Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar)
Sonar (inc. compatibility): Integrated: CHIRPBroadband, Active Imaging DownScan, Active Imaging SideScan, Active Imaging HD DownScan, Active Imaging HD SideScan, Compatible with: ActiveTarget, ActiveTarget2, S3100 SonarHub, StructureScan, StructureScanHD, StructureScan3D, LiveSight (requires PSI-1 module)
Weather: SiriusXM via WM-3 (USA only) SiriusXM via WM-4 (USA only)
Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail

Interface:
Touchscreen: Full Multi-touch touchscreen
Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
