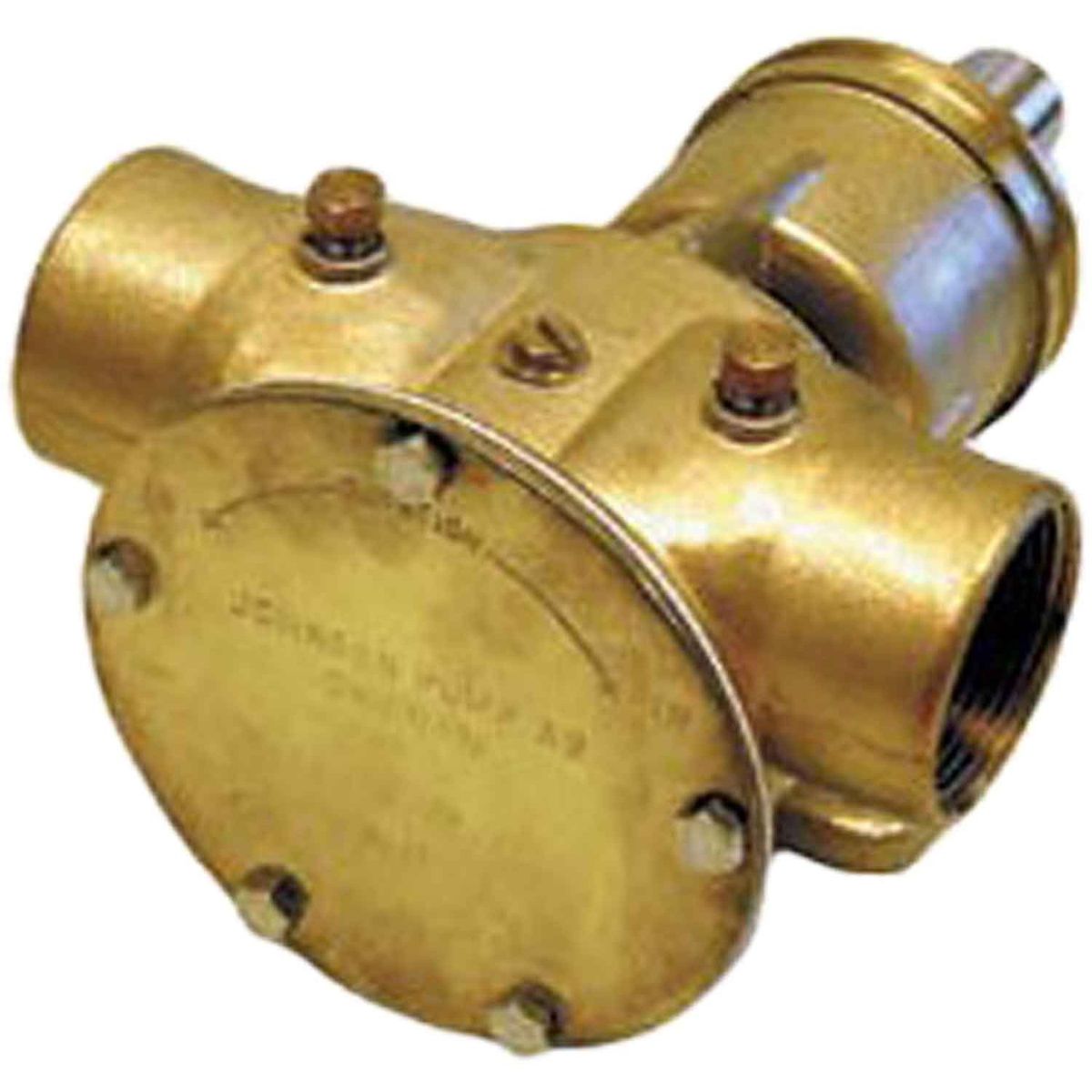

Johnson F8B Foot Mounted Engine Cooling Pump (1-1/2" BSP / 24mm Shaft) 10-13021-1

Johnson F8B Foot Mounted Engine Cooling Pump (1-1/2" BSP / 24mm Shaft) 10-13021-1

SKU:10-13021-1

Regular price £1,500.65
Regular price £1,500.65 Sale price £1,500.65
Sale Sold out
Tax included. Shipping calculated at checkout.
Johnson flexible impeller marine engine cooling pump. This Johnson F8B-8 pump is pulley driven and foot mounted. The pump will replace Jabsco 52200-2011 and 6400-2001, and has been fitted to marine engines: Albin Motor G62, G62T, Caterpillar 3208 and Schwarting S424. Johnson 10-13021-1 Spare Parts: Position | Spare Parts | Part Number | Quantity 1 | Body | 01-13164-1 | 1 2 | Shaft | 01-35132 | 1 3 | Cam | 01-42680 | 1 4 | Impeller | 08-819B | 1 5 | End Cover | 01-42422-1 | 1 6 | Gasket | 01-42424 | 1 7 | Wear Plate | 01-42423 | 1 8 | Pin | 01-42426 | 1 9 | Spacer | 01-45374 | 1 11 | Ball Bearing | 05-08-504 | 2 12 | Retaining Ring | 05-34-118 | 1 13 | Screw | 05-04-178 | 5 14 | Screw | 05-04-108 | 1 17 | Mech Seal | 05-20-505 | 1 18 | Retaining Ring | 05-34-108 | 2 21 | O-Ring | 05-06-537 | 1 Johnson Pump Diagram
