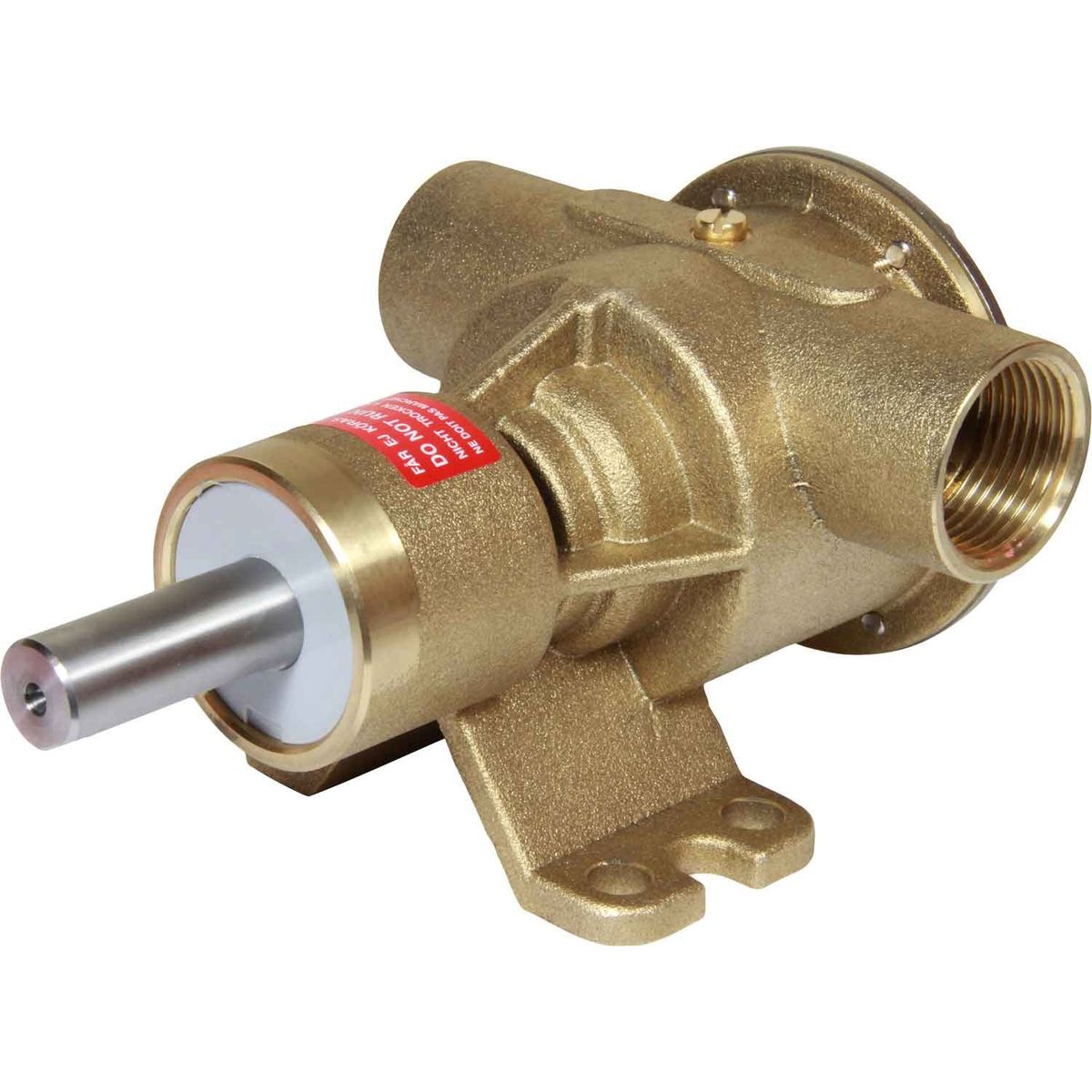

Johnson F7B-8 Foot Mounted Engine Cooling Pump (1" BSP / 17mm Shaft) 10-24572-01

Johnson F7B-8 Foot Mounted Engine Cooling Pump (1" BSP / 17mm Shaft) 10-24572-01

SKU:10-24572-01

Regular price £457.52
Regular price £531.95 Sale price £457.52
Sale Sold out
Tax included. Shipping calculated at checkout.
Johnson flexible impeller marine engine cooling pump 10-24572-01 fits the following boat engines: - Volvo Penta MD2030 & MD2040 - CMD ATM100 - Isuzu 4BG1 & 6BG1 Gen-set This Johnson F7B-8 pump is pulley driven and foot mounted with a 17mm shaft. Replaces Johnson 10-24070-1 (F7B-8), 10-24465-01 (F4B-9), 10-24572-13 (F7B-8), Volvo Penta 3580945 water pumps. Johnson 10-24572-01 Spare Parts: Position | Spare Part | Part Number | Quantity 1 | Body | 01-24574-3 | 1 2 | Shaft | 01-46744 | 1 3 | End Cover | 01-46648-3 | 1 4 | Impeller | 08-1028B | 1 5 | Cam | 01-42679 | 1 6 | Pin | 01-42400 | 1 7 | Wear Plate | 01-46798-2 | 1 8 | Washer | 01-45680 | 1 9 | Plate | 01-45047 | 1 10 | Spacer | 01-46009 | 1 11 | Screw | 0.0279.301 | 6 12 | Screw | 01-46794-01 | 1 13 | O-Ring | 0.2172.012 | 1 14 | O-Ring | 0.2173.402 | 1 15 | Ball Bearing | 0.3437.742 | 2 16 | Mechanical Seal | 0.2247.022 | 1 17 | Retaining Ring | 0.0371.040 | 1 18 | External Circlip | 0.0370.017 | 1 19 | External Circlip | 0.0370.516 | 1 20 | Label | 01-46797 | 1 Johnson Pump Diagram
