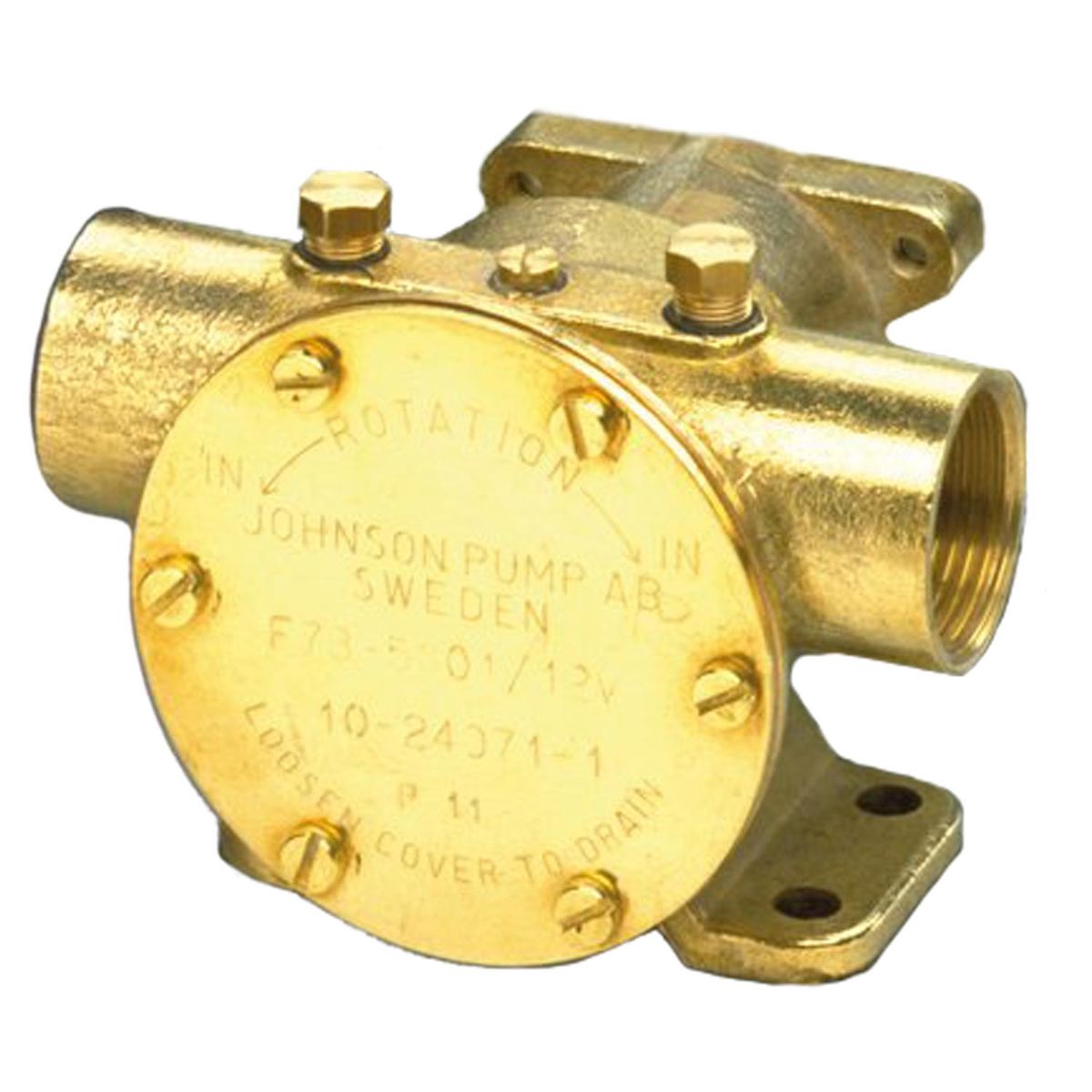

Johnson F7B-5001 Clutched Bilge / Deckwash Pump (12V-24V / 1" BSP) 10-24577-99

Johnson F7B-5001 Clutched Bilge / Deckwash Pump (12V-24V / 1" BSP) 10-24577-99

SKU:10-24577-99

Regular price £484.92
Regular price £701.95 Sale price £484.92
Sale Sold out
Tax included. Shipping calculated at checkout.
The Johnson F7B-5001 clutched pump is for deckwash and bilge applications. The bronze clutched pump has a neoprene impeller, mechanical seal and the pump self primes. This Johnson pump has 1" BSP ports and has a flow rate of 107 litres per minute (2000 rpm). 12V or 24V. Clutch sold separately. Johnson 10-24577-99 Spare Parts: Position | Spare Part | Part Number | Quantity 1 | Body | 01-24574-1 | 1 2 | Shaft | 01-46745 | 1 3 | End Cover | 01-46648-3 | 1 4 | Impeller | 09-1028B | 1 5 | Cam | 01-42679 | 1 6 | Pin | 01-42400 | 1 7 | Wear Plate | 01-46798-2 | 1 8 | Washer | 01-45680 | 1 9 | Spacer | 01-46009 | 1 10 | Screw | 0.0279.301 | 6 11 | Screw | 01-46794-01 | 1 12 | O-Ring | 0.2172.012 | 1 13 | O-Ring | 0.2173-402 | 1 14 | Ball Bearing | 0.3431.742 | 2 15 | Mech Seal | 0.2247.022 | 1 16 | Retaining Ring | 0.0371.040 | 1 17 | Ext Circlip | 0.0370.017 | 1 18 | Ext Circlip | 0.0370.516 | 1 19 | Label | 01-46797 | 1 27 | Assembly Kit | 09-46436 | 1 Johnson Pump Diagram
