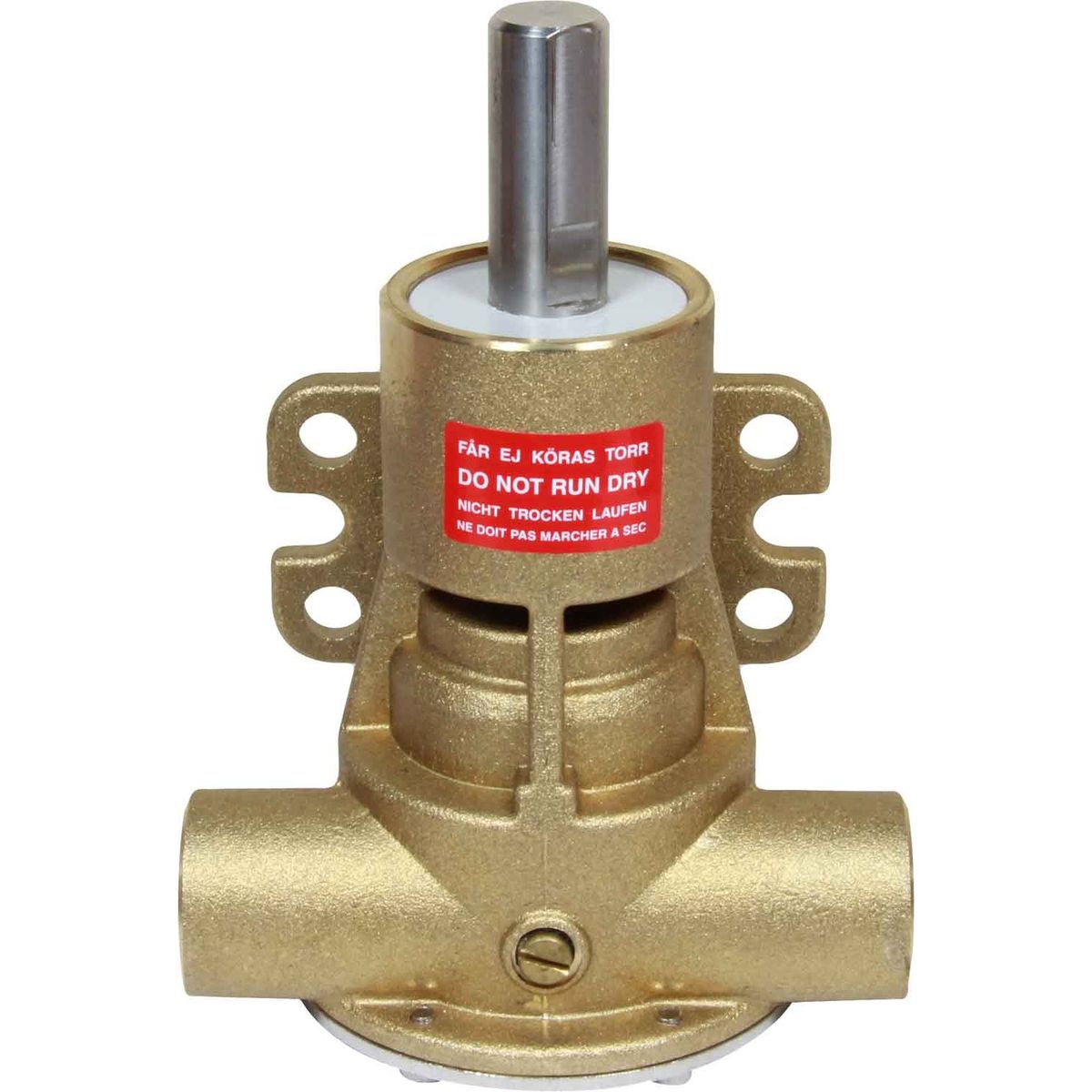

Johnson F5B-8 Foot Mounted Engine Cooling Pump (3/4" BSP / 17mm Shaft) 10-24571-01

Johnson F5B-8 Foot Mounted Engine Cooling Pump (3/4" BSP / 17mm Shaft) 10-24571-01

SKU:10-24571-01

Regular price £491.57
Regular price £574.95 Sale price £491.57
Sale Sold out
Tax included. Shipping calculated at checkout.
Johnson flexible impeller marine engine cooling pump. This F5B pump is pulley driven and foot mounted. Johnson F5B-8 engine cooling water pump replaces Johnson 10-24463-01 (F4B-903), 10-24571-13 (F5B-8) and 10-24073-1 (F5B-8) flexible impeller pumps. Fits the following marine engines: - CMD AM45 - Diecon FD35 - Isuzu 4JG2 Gen-set Johnson 10-24571-01 Spare Parts: Position | Spare Part | Part Number | Quantity 1 | Body | 01-24573-1 | 1 2 | Shaft | 01-46744 | 1 3 | End Cover | 01-46747-2 | 1 4 | Impeller | 08-1027B-1 | 1 5 | Cam | 01-42397 | 1 6 | Pin | 01-42400 | 1 7 | Wear Plate | 01-42399-2 | 1 8 | Washer | 01-45680 | 1 9 | Plate | 01-45047 | 1 10 | Spacer | 01-46009 | 1 11 | Tap Bolt | 0.0141.700 | 6 12 | Screw | 01-46794-05 | 1 13 | O-Ring | 0.2173.475 | 1 14 | O-Ring | 0.2173.402 | 1 15 | Ball Bearing | 0.3437.742 | 2 16 | Mech Seal | 0.2247.022 | 1 17 | Retaining Ring | 0.0371.040 | 1 18 | Ext. Circlip | 0.0370.017 | 1 19 | Ext. Circlip | 0.0370.516 | 1 20 | Label | 01-46797 | 1 Johnson Pump Diagram
