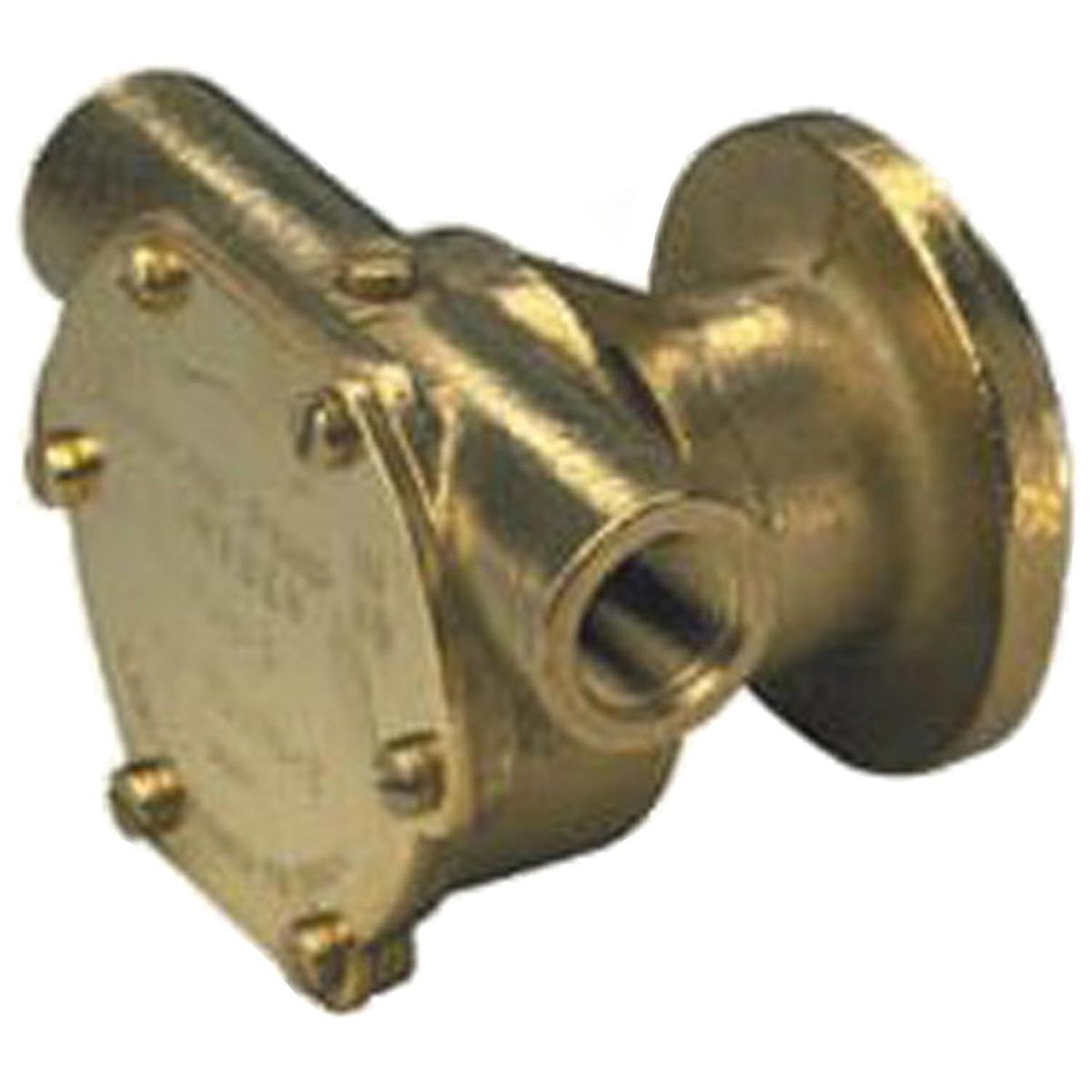

Johnson F4B-9 Flange Mounted Engine Cooling Pump (Vetus / 10-35161-1) 10-35161-1

Johnson F4B-9 Flange Mounted Engine Cooling Pump (Vetus / 10-35161-1) 10-35161-1

SKU:10-35161-1

Regular price £416.30
Regular price £909.95 Sale price £416.30
Sale Sold out
Tax included. Shipping calculated at checkout.
Johnson 10-35161-1 F4B-9 flange mounted engine cooling flexible impeller pump. The Johnson 10-35161-1 is from the F4B family of pumps. It is designed to be flange mounted to the engine timing cover. This pump has 3/8" BSP female ports. This pump fits Vetus K3, K3D and K4 marine engines and will replace Jabsco 29470-2131 pumps. The replacement impeller for this pump is available, part number: JP-09-810B. Johnson 10-35161-1 Spare Parts: Position | Spare Part | Part Number | Quantity 1 | Body | 01-35099-2 | 1 2 | Shaft | 01-45032 | 1 3 | Impeller | 09-810B | 1 4 | Cam | 01-42389 | 1 5 | End Cover | 01-45282 | 1 6 | Gasket | 01-45284 | 1 7 | Eccentric Sleeve | 01-45831 | 1 8 | Clip | 01-43238 | 2 9 | Screw | 05-04-124 | 1 10 | Screw | 05-04-163 | 6 11 | Screw | 05-04-114 | 1 12 | Lip Seal | 05-29-139 | 2 13 | Retaining Ring | 05-34-131 | 1 14 | Ball Bearing | 05-08-503 | 2 15 | Ball Bearing | 05-08-501 | 1 16 | Spacer | 01-45955 | 1
