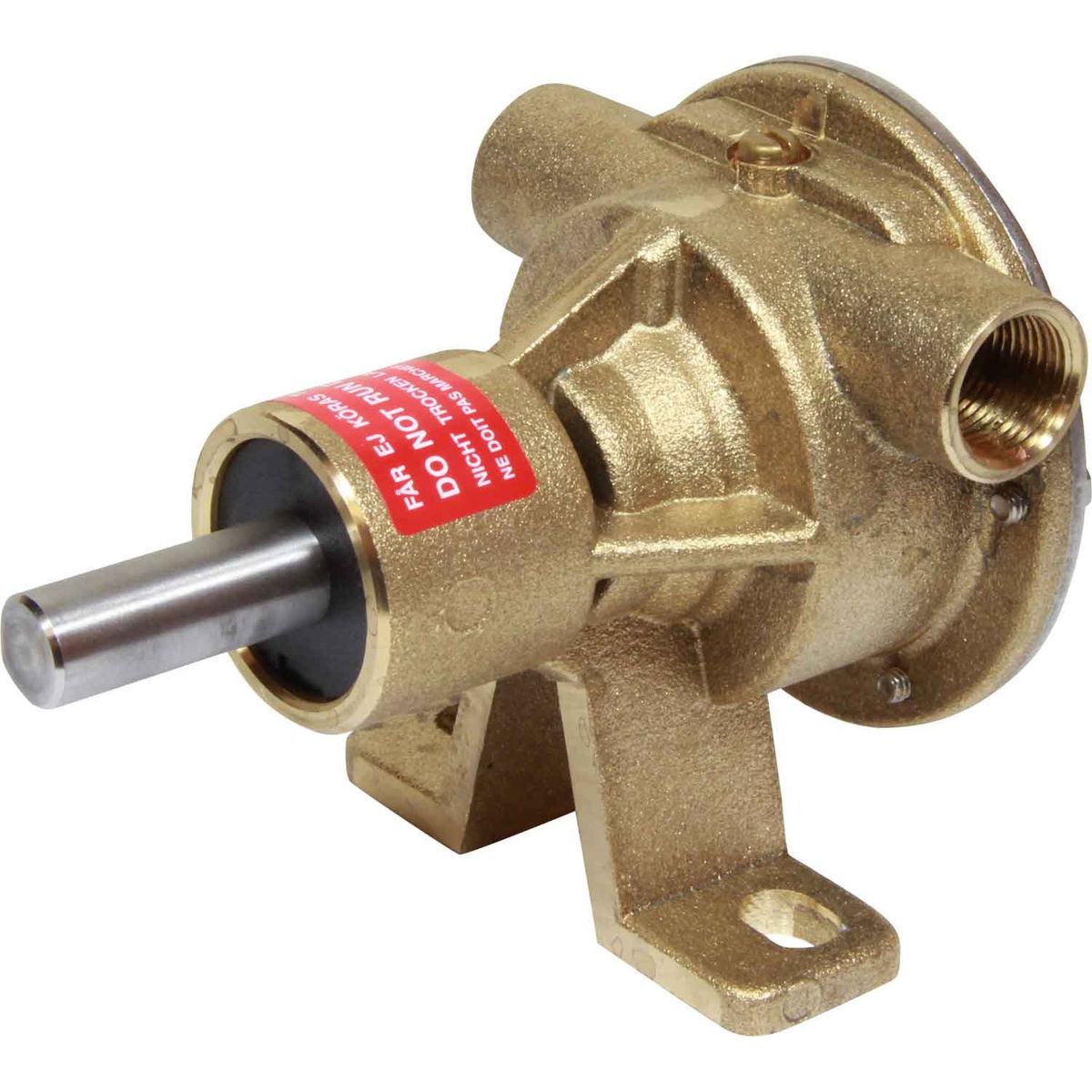

Johnson F4B-8 Foot Mounted Engine Cooling Pump (3/8" BSP / 12mm Shaft) 10-24570-01

Johnson F4B-8 Foot Mounted Engine Cooling Pump (3/8" BSP / 12mm Shaft) 10-24570-01

SKU:10-24570-01

Regular price £392.12
Regular price £814.95 Sale price £392.12
Sale Sold out
Tax included. Shipping calculated at checkout.
Johnson F4B-8 flexible impeller marine engine cooling pump, part number Johnson 10-24570-01. This multipurpose pump is pulley driven and foot mounted, with 3/8" BSP female ports and a 12mm shaft. This engine cooling pump fits Isuzu 2CA1 engines. Johnson 10-24570-01 Spare Parts: Position | Spare Part | Part Number | Quantity 1 | Body | 01-35882-1 | 1 2 | Shaft | 01-46735-1 | 1 3 | End Cover | 01-46007-2 | 1 4 | Impeller | 09-810B | 1 5 | Cam | 01-42389 | 1 6 | Spacer | 01-45542 | 1 7 | Pin | 01-42400 | 1 8 | Wear Plate | 01-46737-2 | 1 9 | Plate | 01-45049 | 1 10 | Washer | 01-45659 | 1 11 | Label | 01-46797 | 1 12 | Washer | 01-46790-01 | 1 14 | Screw | 0.0279.300 | 6 15 | Screw | 01-46794-04 | 1 16 | O-Ring | 0.2173.476 | 1 17 | O-Ring | 0.2173.432 | 1 18 | Ball Bearing | 0.3431.748 | 2 19 | Mechanical Seal | 0.2247.021 | 1 20 | Internal Circlip | 0.0371.028 | 1 21 | External Circlip | 0.370.012 | 2 Johnson Pump Diagram
