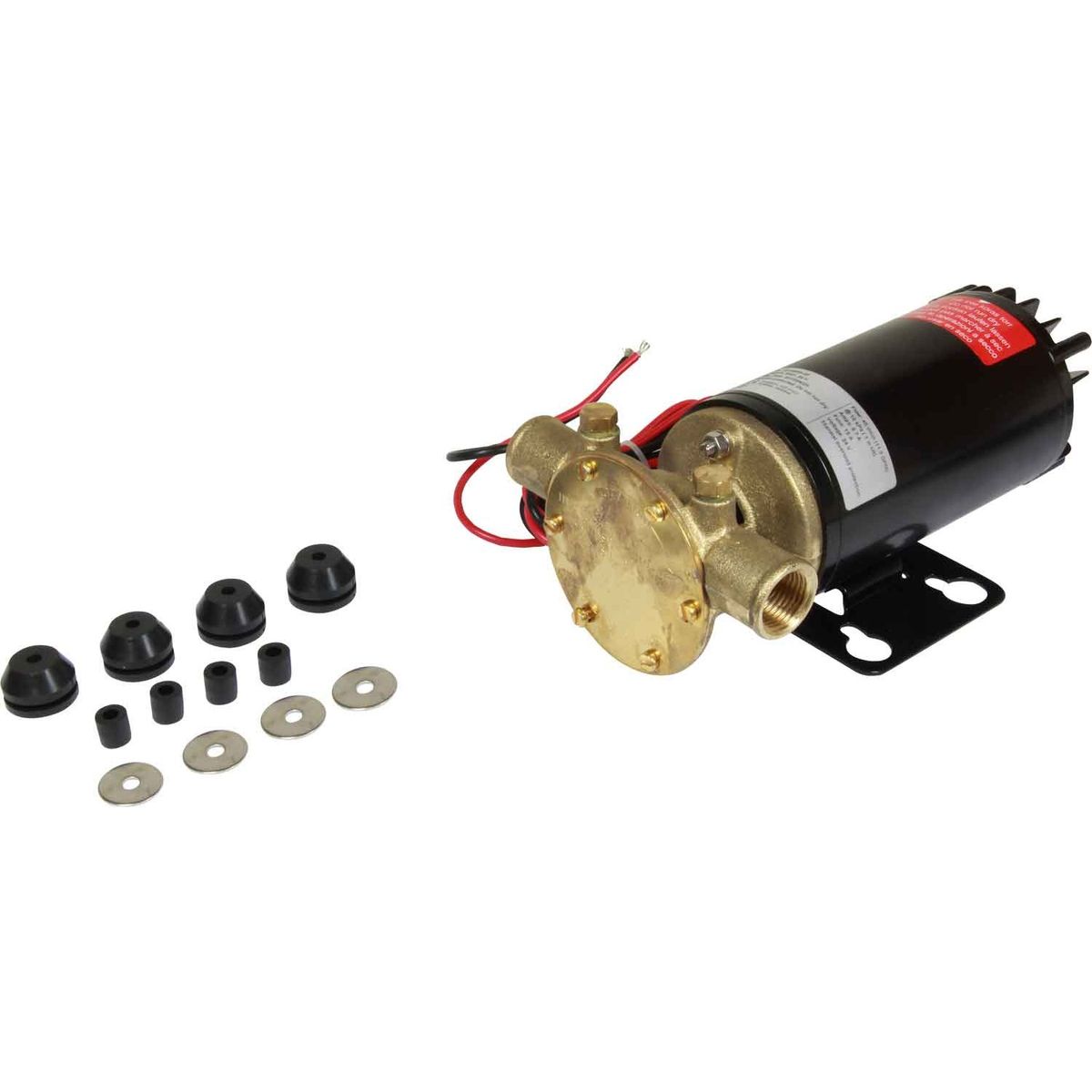

Johnson F4B-19 Electric Motor Pump (24V / 48lpm / 1/2" BSP) 10-24689-02

Johnson F4B-19 Electric Motor Pump (24V / 48lpm / 1/2" BSP) 10-24689-02

SKU:10-24689-02

Regular price £628.60
Regular price £628.60 Sale price £628.60
Sale Sold out
Tax included. Shipping calculated at checkout.
The Johnson F4B-19 electric motor pump is for 24V and can pump 48 litres per minute and self primes up to 4 metres. The Johnson pump has a nitrile impeller and 1/2" BSP connections. Bar | kPa | ft | LPM | US GPM | Amp Draw 24V 0.0 | 0.0 | 0.0 | 48 | 12.7 | 6.5A 0.1 | 10 | 3.4 | 45 | 11.9 | 6.7A 0.2 | 20 | 6.1 | 44.5 | 11.7 | 6.8A 0.3 | 30 | 10.1 | 41 | 10.8 | 7.1A 0.6 | 60 | 20.1 | 34 | 9.0 | 7.5A Johnson 10-24689-02 Spare Parts: Position | Spare Part | Part Number 1 | Body | 01-24452-1 2 | Motor (24V) | 01-24676-02 3 | Impeller | 09-824P-9 4 | Lip Seal | 0.2233.007 5 | End Cover | 01-42398 6 | O-Ring | 0.2173.470 7 | Screw | 0.0279.501 8 | Nut | 0.0185.069 9 | Washer | 0.0350.207 10 | Slinger | 0.2173.470 11 | Plug | 0.2500.805 12 | Foot Kit | 09-47194 | Service Kit | 09-46600 Johnson Pump Diagram
