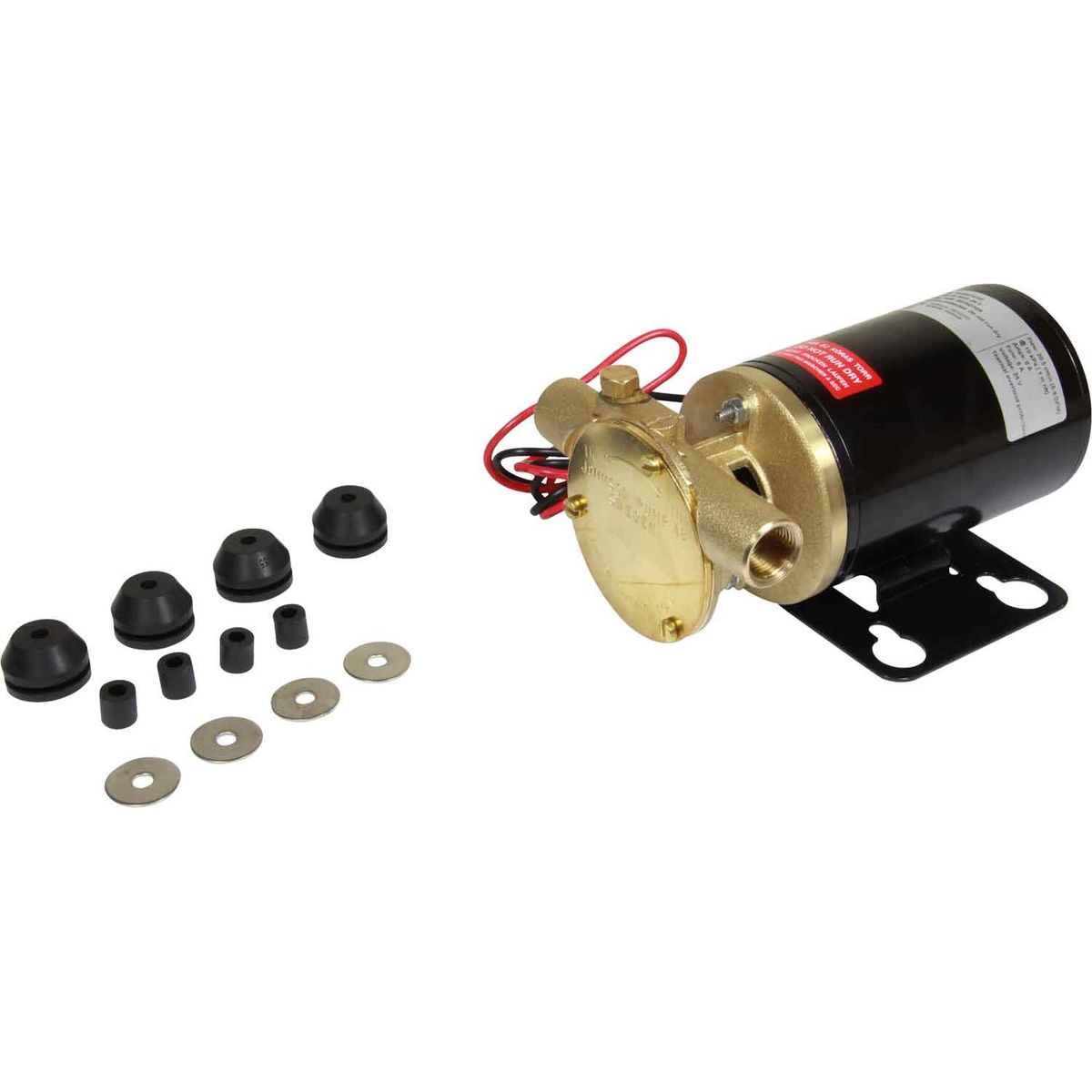

Johnson F3B-19 Electric Motor Pump (24V / 21lpm / 3/8" BSP) 10-24516-02

Johnson F3B-19 Electric Motor Pump (24V / 21lpm / 3/8" BSP) 10-24516-02

SKU:10-24516-02

Regular price £308.05
Regular price £370.95 Sale price £308.05
Sale Sold out
Tax included. Shipping calculated at checkout.
The Johnson F3B-19 electric motor pump is for 24V and can pump 21 litres per minute and self primes up to 4 metres. The Johnson pump has a nitrile impeller and a bronze construction with 3/8" BSP connections. Bar | kPa | ft | LPM | US GPM | Amp Draw 24V 0.0 | 0.0 | 0.0 | 21.0 | 5.5 | 4.0A 0.1 | 10 | 3.4 | 20.5 | 5.4 | 4.0A 0.2 | 20 | 6.1 | 20.0 | 5.3 | 4.1A 0.3 | 30 | 10.1 | 19.5 | 5.2 | 4.1A 0.6 | 60 | 20.1 | 17.8 | 4.7 | 4.2A Johnson 10-24516-02 Spare Parts: Position | Spare Part | Part Number 1 | Body | 01-24452-3 2 | Motor (24V) | 3 | Impeller | 09-824P-9 4 | Lip Seal | 0.2233.007 5 | End Cover | 01-42398 6 | O-Ring | 0.2173.470 7 | Screw | 0.0279.501 8 | Nut | 0.0185.389 9 | Washer | 0.0353-301 10 | Slinger | 0.2173.470 11 | Plug | 0.2500.805 12 | Foot Kit | 09-47194 | Service Kit | 09-46600 Johnson Pump Diagram
