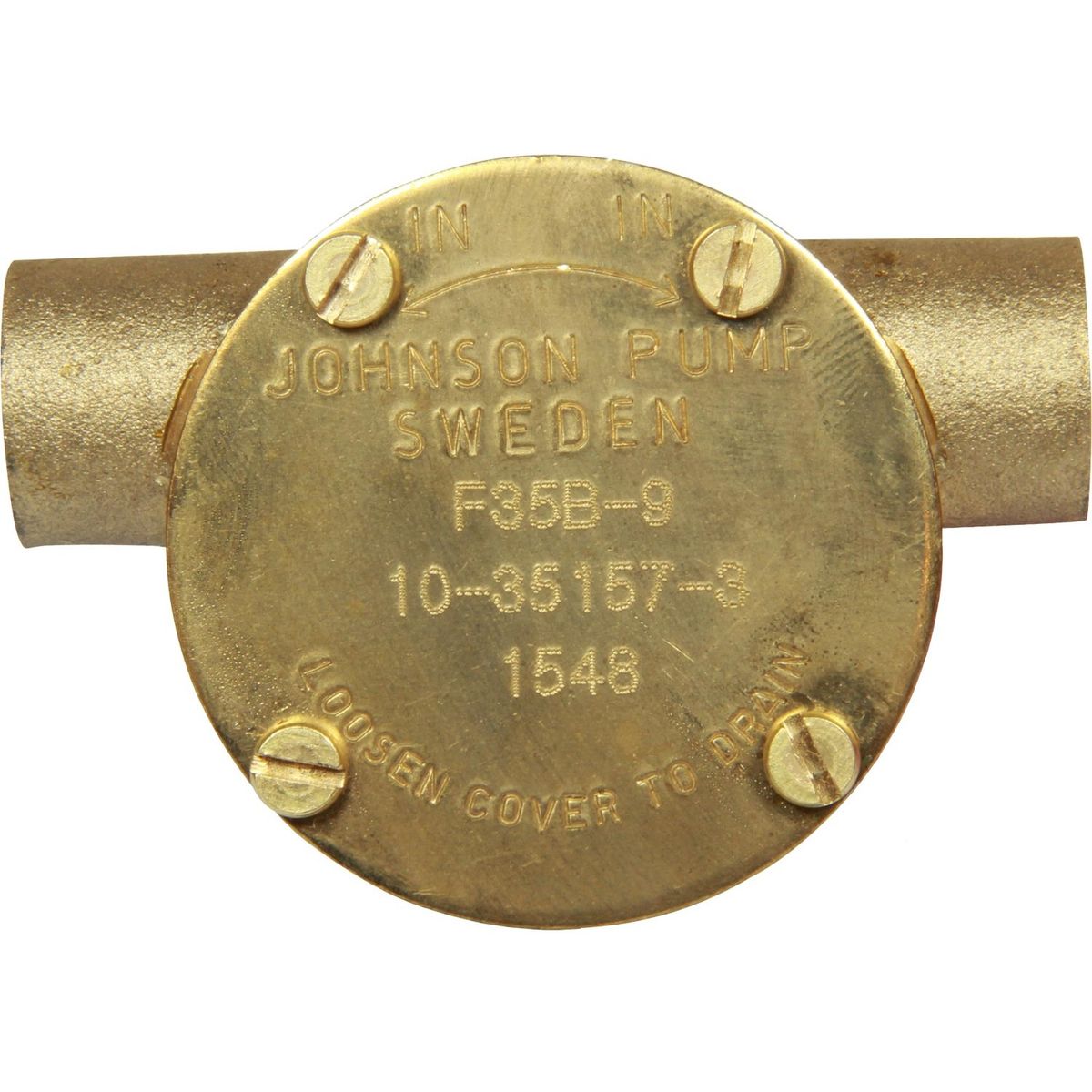

Johnson 10-35157-3 Engine Cooling Pump (F35B-9 / Flange Mount) 10-35157-3

Johnson 10-35157-3 Engine Cooling Pump (F35B-9 / Flange Mount) 10-35157-3

SKU:10-35157-3

Regular price £401.02
Regular price £400.95 Sale price £401.02
Sale Sold out
Tax included. Shipping calculated at checkout.
Johnson 10-35157-3 pump is a flange mounted, engine driven flexible impeller raw water pump for marine engine cooling. The Johnson water pump fits: - Flanged Volvo engines - Bukh DV 8 ME/SME, DV 10 LME/LSME, DV 10M, DV 10 ME/SME, DV 18 LME/LSME, DV 20M, DV 20 ME/SME and DV 24 ME/SME engines As well as Arona AD190, AD190/195M, AD195M, AD295M, Ducati DM286, GAE186, IS16/20, IS184/186, IS284/286, IS9/11, Grassetti FM10, Hydromarine DM12, Mandals Motorfabrik D8, MB10, Ruggerini CRD100/951, CRD951, PM105, PM105/2, RD100/2, RD100/951, RDM901 and RM80. This engine cooling pump features a bearing supported shaft with 3/8" BSP female ports. Replacement impeller: 09-808B. This engine cooling pump does NOT come with the o-ring that fits between the pump and the engine, this o-ring is our part number 05-06-521, available below. Johnson 10-35157-3 Spare Parts: Position | Spare Part | Part Number | Quantity 1 | Body | 01-35096-2 | 1 2 | Shaft | 01-45556 | 1 3 | Impeller | 09-808B | 1 4 | Cam | 01-42910 | 1 5 | End Cover | 01-43239 | 1 6 | Gasket | 01-43240 | 1 7 | Wear Plate | 01-46087 | 1 8 | Pin | 01-42400 | 1 9 | Screw | 05-04-123 | 1 10 | Screw | 05-04-163 | 4 11 | Screw | 05-04-114 | 1 12 | Washer | 05-01-120 | 1 13 | Lip Seal | 05-29-139 | 2 14 | Ball Bearing | 05-08-503 | 2 15 | Retaining Ring | 05-34-131 | 1 17 | Spacer | 01-45955 | 1
