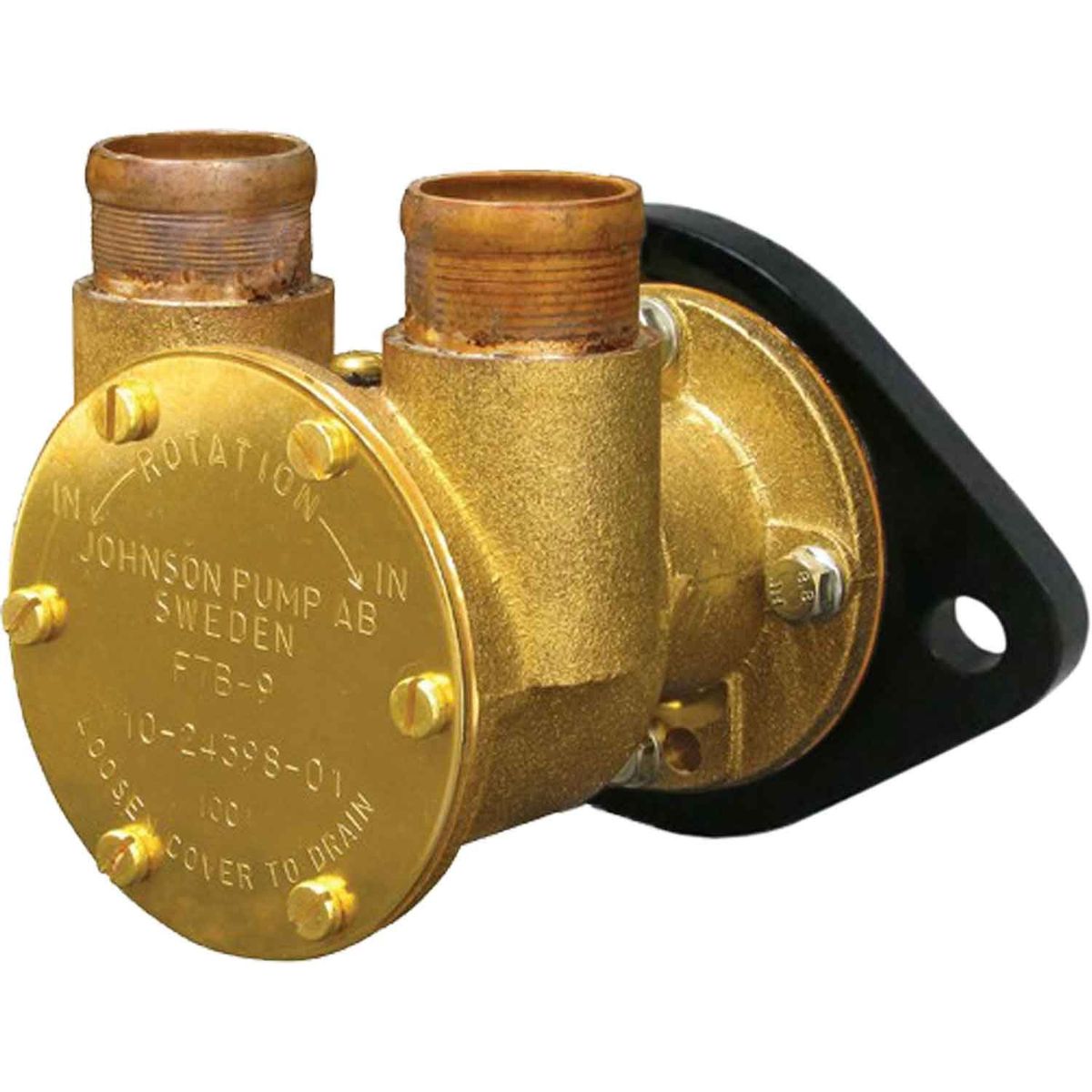

Johnson 10-24398-02 Pump F7B-9 for John Deere Engines 10-24398-02

Johnson 10-24398-02 Pump F7B-9 for John Deere Engines 10-24398-02

SKU:10-24398-02

Regular price £709.85
Regular price £1,060.95 Sale price £709.85
Sale Sold out
Tax included. Shipping calculated at checkout.
Johnson flexible impeller raw water pump for the following John Deere engines: - PowerTech 4.5L (4045DFM70 & 4045TFM75) - PowerTech 6.8L (6068TFM75 & 6068TFM76) Johnson pump 10-24398-02 is an F7B-9 flange mounted pump with a nominal bore of 1", that replaces John Deere RE503068 pumps. Johnson 10-24398-02 Spare Parts: Position | Spare Part | Part Number | Quantity 1 | Body | 01-24125-2 | 1 2 | Shaft | 01-35670 | 1 3 | Cam | 01-42679 | 1 4 | Impeller | 09-1028B | 1 5 | End Cover | 01-42441 | 1 6 | Gasket | 01-42445 | 1 7 | Washer | 01-45181 | 1 8 | Flange | 01-35213-2 | 1 9 | Gasket | 01-45754 | 1 10 | Screw | 0.0279.033 | 6 11 | Screw | 01-46794-01 | 1 12 | Tap Bolt | 0.0141.911 | 4 13 | Washer | 0.0353.402 | 4 14 | Lip Seal | 0.2233.001 | 2 15 | O-Ring | 0.2173.402 | 1 16 | Ext. Circlip | 0.0370.516 | 1 17 | Retaining Ring | 0.0371.040 | 1 18 | Ext. Circlip | 0.0370.017 | 1 19 | Ball Bearing | 0.3431.483 | 2 Johnson Pump Diagram
