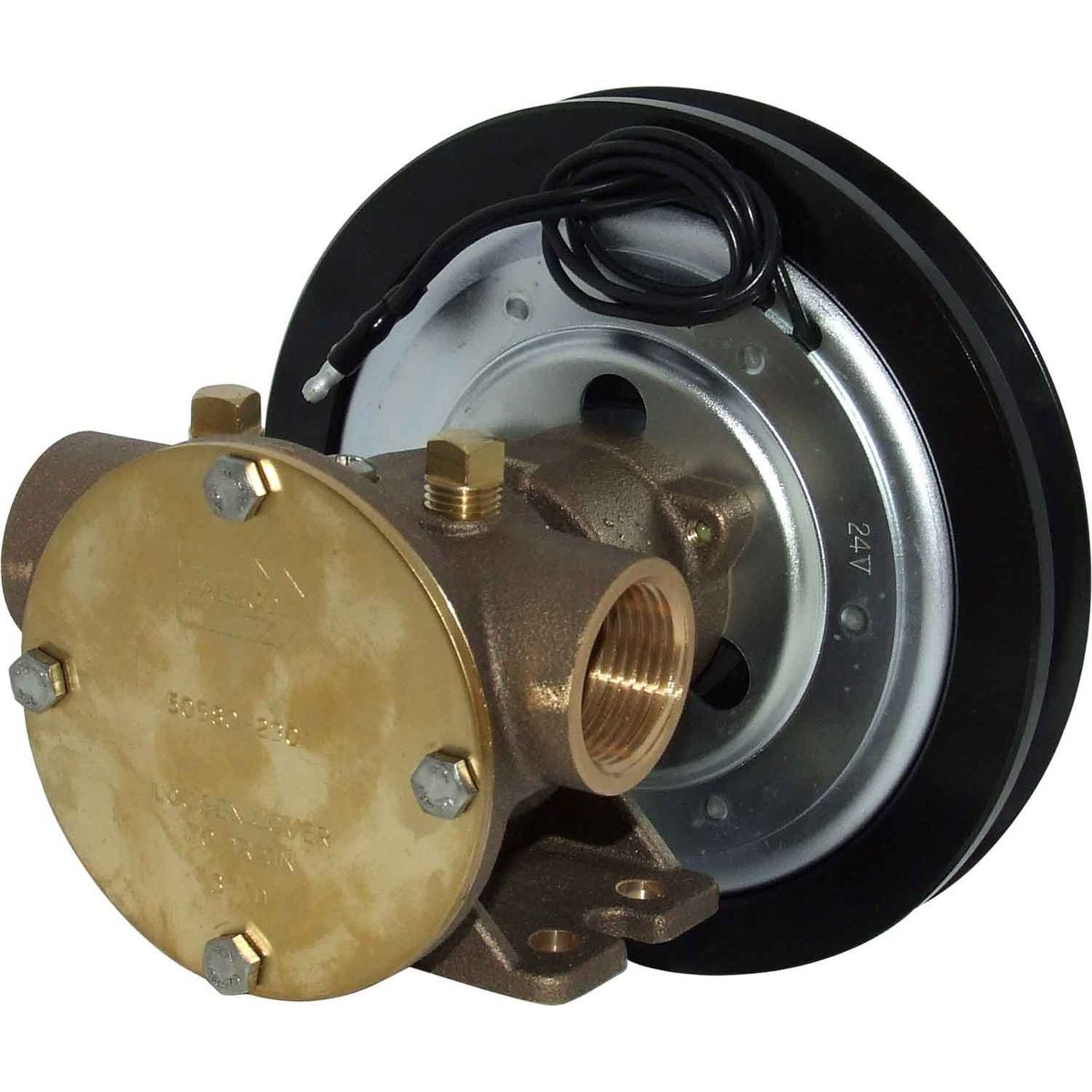

Jabsco 50580-2301 Bronze Clutch Pump (24V / 1" BSP / Single B) 505233

Jabsco 50580-2301 Bronze Clutch Pump (24V / 1" BSP / Single B) 505233

SKU:505233

Regular price £869.27
Regular price £1,397.95 Sale price £869.27
Sale Sold out
Tax included. Shipping calculated at checkout.
1" bronze bilge and deck wash pump, 80-size, foot mounted with BSP ports and a 24V DC electric clutch with 1B pulley. This Jabsco Clutch Pump has a 180mm diameter pulley with an Output at 1500 RPM: 80 LPM (17.5 GPM) at 3m total head. This pump has a bronze body, stainless steel shaft, mechanical shaft seal and a Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water (Nitrile option for use with oily water). Can handle moderate amounts of suspended solid matter. Jabsco Pump 50580-2301 Spare Parts: Part ID | Spare Parts | Part Number | Quantity 1 | Bearing | SP2601-0468 | 2 3 | Cam | 53082-0000 | 1 4 | End Cover | 50355-0000 | 1 5 | Electro Magnetic Clutch Field Coil (24V) | SP2300-0064FCUS | 1 6 | Screw | X3001-176FB | 7 7 | Impeller & Gasket Kit | 920-0001-P | 1 8 | Key | SP1401-10 | 1 9 | Seal Assembly | 96080-0620 | 1 10 | O-Ring | X4020-106A | 1 11 | O-Ring | X4020-215A | 1 12 | O-Ring (3 Pack) | 18753-0263 | 1 14 | Retaining Ring (3 Pack) | 91700-0620 | 1 15 | Retaining Ring (3 Pack) | 18713-0000 | 1 16 | Dowel Pin | SP3100-10 | 1 17 | Electro Magnetic Clutch Pulley Assembly (Twin A Groove) | SP2300-0061RA | 1 18 | Screw (10 Pack) | X3003-176F-P | 1 21 | Spline Plug (3 Pack) | 4345-0000 | 1 22 | Washer | 29706-0000 | 1 23 | Wearplate | 4156-0000 | 1
