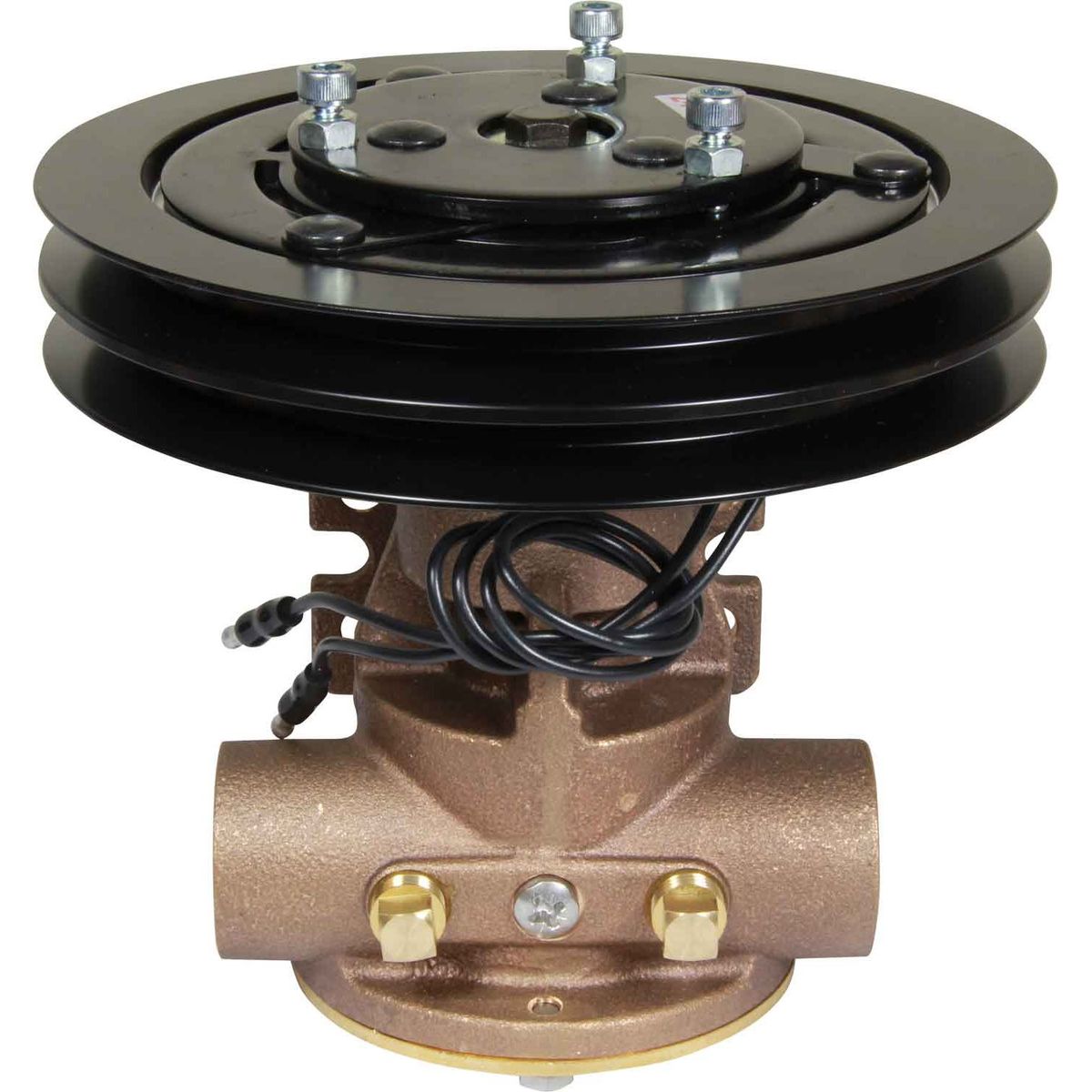

Jabsco 50580-2101 Bronze Clutched Pump (24V / 1" BSP / 13mm Pulley) 505231

Jabsco 50580-2101 Bronze Clutched Pump (24V / 1" BSP / 13mm Pulley) 505231

SKU:505231

Regular price £1,134.89
Regular price £1,389.95 Sale price £1,134.89
Sale Sold out
Tax included. Shipping calculated at checkout.
The Jabsco 24V foot mounted clutched pump is suitable for bilge and deckwash applications. The pump features 1" BSP female ports and measures 160mm long with a 180mm pulley diameter (2A pulley). The Jabsco clutched pump is capable of pumping 80 litres per minute (17.5 gallons) at 3 metres total head. This bilge and deckwash pump has a bronze body, stainless steel shaft, mechanical shaft seal and comes with a neoprene impeller fitted for maximum performance when pumping clean or slightly contaminated water. A nitrile impeller may be fitted for use with oily water applications. The pump can self-prime up to 2 metres of vertical lift and is tolerant to moderate amounts of suspended solids. Jabsco Pump 50580-2101 Spare Parts: Part ID | Spare Parts | Part Number | Quantity 1 | Bearing | SP2601-0468 | 2 3 | Cam | 53082-0000 | 1 4 | End Cover | 50355-0000 | 1 5 | Electro Magnetic Clutch Field Coil (24V) | SP2300-0064FCUS | 1 6 | Screw | X3001-176FB | 7 7 | Impeller & Gasket Kit | 920-0001-P | 1 8 | Key | SP1401-10 | 1 9 | Seal Assembly | 96080-0620 | 1 10 | O-Ring | X4020-106A | 1 11 | O-Ring | X4020-215A | 1 12 | O-Ring (3 Pack) | 18753-0263 | 1 14 | Retaining Ring (3 Pack) | 91700-0620 | 1 15 | Retaining Ring (3 Pack) | 18713-0000 | 1 16 | Dowel Pin | SP3100-10 | 1 17 | Electro Magnetic Clutch Pulley Assembly (Twin A Groove) | SP2300-0061RA | 1 18 | Screw (10 Pack) | X3003-176F-P | 1 21 | Spline Plug (3 Pack) | 4345-0000 | 1 22 | Washer | 29706-0000 | 1 23 | Wearplate | 4156-0000 | 1 50580-2101 Diagram
