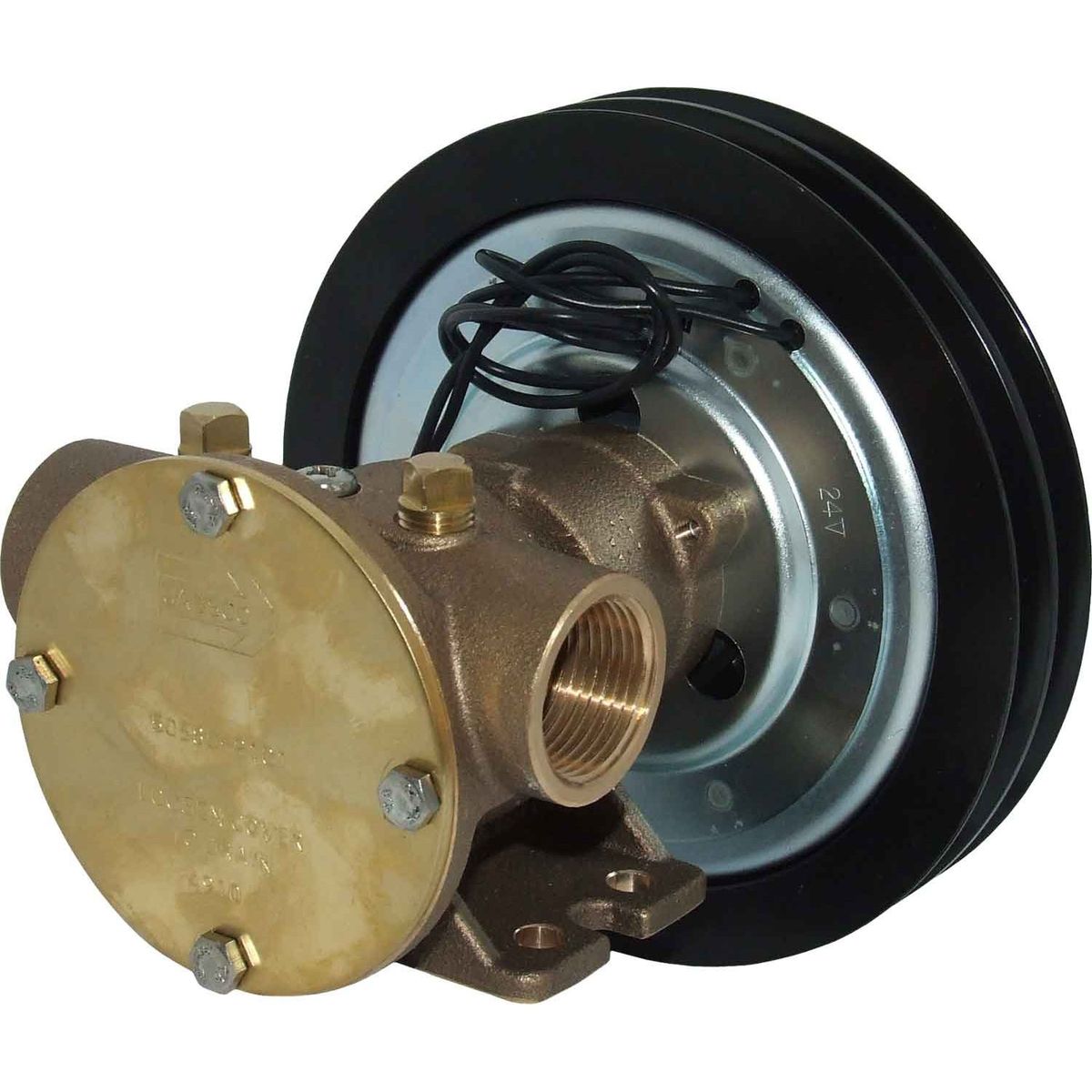

Jabsco 50580-2001 Bronze Clutched Pump (12V / 1" BSP / 13mm Pulley) 505230

The Jabsco 12V foot mounted clutched pump is suitable for bilge and deckwash applications. The pump features 1" BSP female ports and measures 160mm long with a 180mm pulley diameter (2A pulley). The Jabsco clutched pump is capable of pumping 80 litres per minute (17.5 gallons) at 3 metres total head. This bilge and deckwash pump has a bronze body, stainless steel shaft, mechanical shaft seal and comes with a neoprene impeller fitted for maximum performance when pumping clean or slightly contaminated water. A nitrile impeller may be fitted for use with oily water applications. The pump can self-prime up to 2 metres of vertical lift and is tolerant to moderate amounts of suspended solids. Jabsco 50580-2001 Spare Parts: Part ID | Spare Parts | Part Number | Quantity 1 | Bearing | SP2601-0468 | 2 3 | Cam | 53082-0000 | 1 4 | End Cover | 50355-0000 | 1 5 | E/M Clutch - Field Coil 12V | SP2300-0063FCUS | 1 6 | Screw | X3001-176FB | 7 7 | Impeller & Gasket Kit | 17937-0001-P | 1 8 | Key | SP1401-10 | 1 9 | Seal Assembly | 96080-0620 | 1 10 | O-Ring | X4020-106A | 1 11 | O-Ring | X4020-215A | 1 12 | O-Ring (3 Pack) | 18753-0263 | 1 14 | Retaining Ring (3 Pack) | 91700-0620 | 1 15 | Retaining Ring (3 Pack) | 18713-0000 | 1 16 | Dowel Pin | SP3100-10 | 1 17 | E/M Clutch Pulley Assembly (Twin 'A' Groove) | SP2300-0061RA | 1 18 | Screw (10 Pack) | X3003-176F-P | 1 21 | Spline Plug (3 Pack) | 4345-0000 | 1 22 | Washer | 29706-0000 | 1 23 | Wearplate | 4156-0000 | 1
