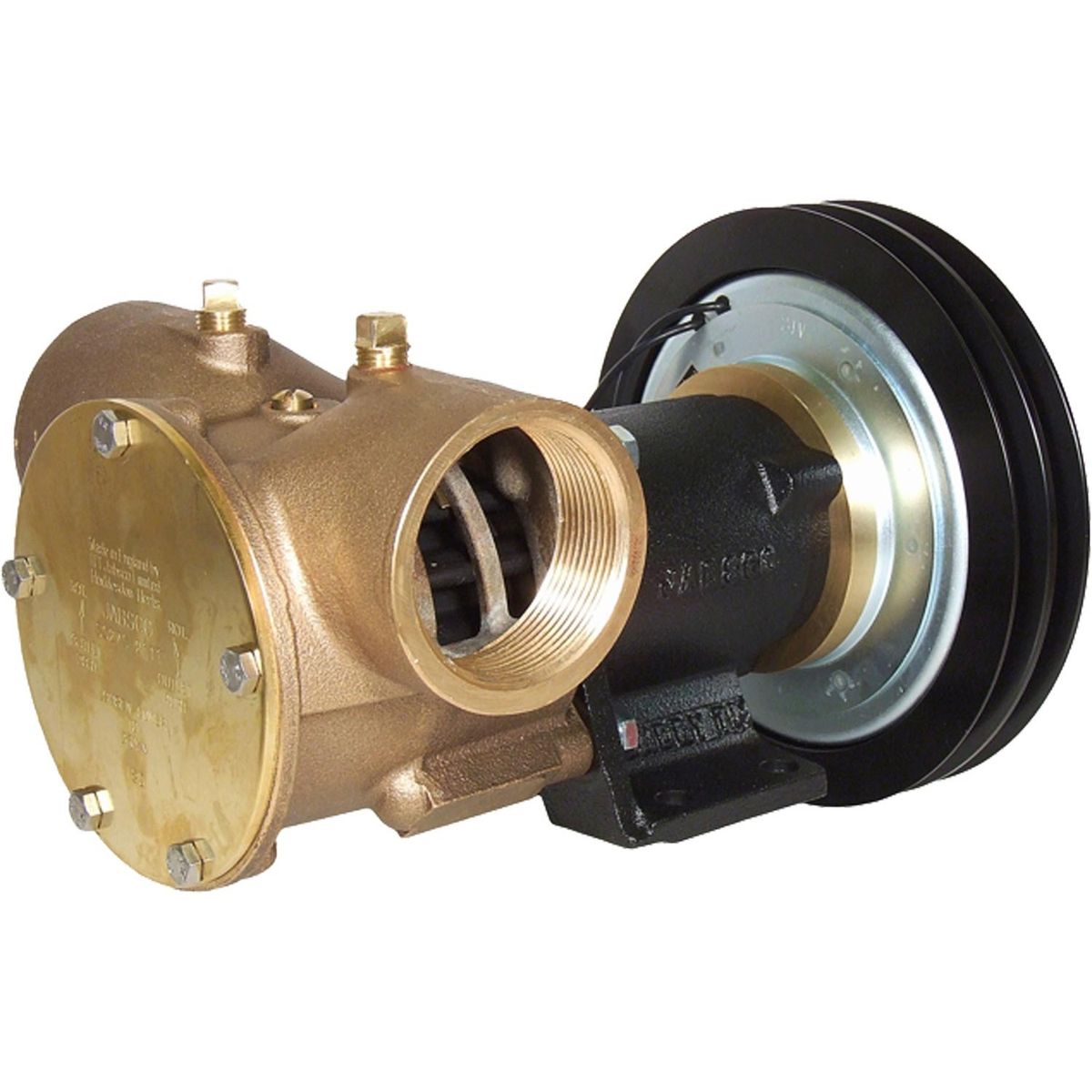

Jabsco 50270-2111 Bronze Clutch Pump (24V / 2" BSP / Twin A) JAB-50270-2111

The Jabsco 24V foot mounted clutched pump is suitable for bilge and deckwash applications. The pump features 2" BSP female threaded ports and measures 270mm long with a 180mm pulley diameter (2A pulley) and 173mm across the ports. The Jabsco clutched pump is capable of pumping 267 litres per minute (59 gallons) at 3 metres total head. This heavy duty bilge and deckwash pump has a bronze body, stainless steel shaft, mechanical shaft seal and comes with a neoprene impeller fitted for maximum performance when pumping clean or slightly contaminated water. A nitrile impeller may be fitted for use with oily water applications. The pump can self-prime up to 3 metres of vertical lift and is tolerant to moderate amounts of suspended solids. This Jabsco Pump 50270-2111 has the following Spare Parts: Part ID | Spare Parts | Part Number | Quantity 1 | End Cover | 12062-0000 | 1 2 | Gasket | 816-0000 | 1 3 | Impeller | 17936-0001B | 1 4 | Wearplate | 2574-0000 | 1 6 | Cam | 6988-0000 | 1 7 | Screw (3 Pack) | 91005-0040 | 1 9 | O-Ring | X4020-324A | 1 10 | Bearing Housing | 50273-0000 | 1 13 | Seal | 92701-0180 | 1 14 | Clutch Adaptor | 52201-0200B | 1 16 | E/M Clutch Field Coil (24V) | SP2300-0064FCUS | 1 17 | Screw | X3001-176FB | 3 18 | Screw | X3001-176FB | 5 19 | Seal Assembly | 21849 | 1 20 | Bearing | SP2601-0458 | 1 21 | Retaining Ring | Y5026-08 | 1 22 | Shaft | 50277-0000 | 1 23 | Key | SP1401-10 | 1 24 | Retaining Ring | Y5026-08 | 1 25 | Bearing | SP2601-0458 | 1 28 | E/M Clutch Pulley Assembly (Twin A Groove) | SP2300-0061RA | 1 | Service Kit | SK408-0011 | 1
