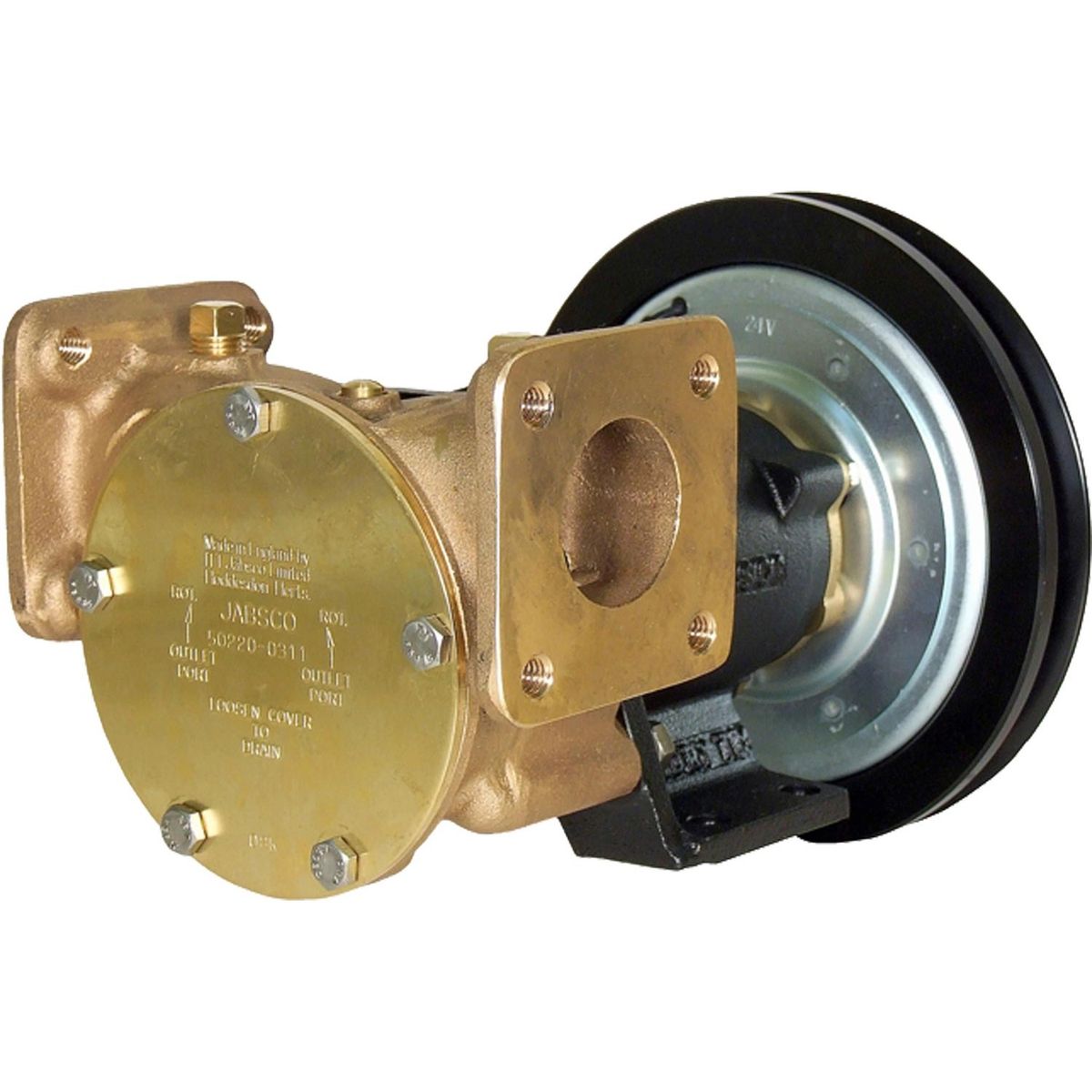

Jabsco 50220-0311 Bronze Clutch Pump (24V / 1-1/2" Flange / Single B) JAB-50220-0311

Jabsco 24V flange mounted clutched pump for bilge and deckwash applications. The Jabsco clutched pump has a 1-1/2" flange and is capable of pumping 195 litres per minute (43 gallons) at 3 metres total head. This heavy duty bilge and deckwash pump has a mechanical shaft seal with a neoprene impeller fitted for maximum performance when pumping clean or slightly contaminated water. The pump can self-prime up to 2.4 metres. (1B pulley). Jabsco Pump 50220-0311 Spare Parts: Part ID | Spare Parts | Part Number | Quantity 1 | End Cover | 12062-0000 | 1 2 | Gasket | 816-0000 | 1 3 | Impeller | 17935-0001B | 1 4 | Wearplate | 2574-0000 | 1 6 | Cam | 834-0001 | 1 7 | Screw (3 Pack) | 91005-0040 | 1 9 | O-Ring | X4020-324A | 1 10 | Bearing Housing | 50273-0000 | 1 12 | Bolt | SP1095-28 | 4 13 | Seal | 92701-0180 | 1 14 | Clutch Adaptor | 52201-0200B | 1 16 | E/M Clutch Field Coil 24V | SP2300-0064FCUS | 1 17 | Screw | X3001-176FB | 3 18 | Screw | SP1095-0640 | 5 19 | Seal Assembly | 21849 | 1 20 | Bearing | SP2601-0458 | 1 21 | Retaining Ring | Y5026-08 | 1 22 | Shaft | 50227-0000 | 1 23 | Key | SP1401-10 | 1 24 | Retaining Ring | Y5026-08 | 1 25 | Bearing | SP2601-0458 | 1 28 | E/M Clutch Pulley Assembly (Single B Groove) | SP2300-0063RA | 1 | Service Kit | SK407-0011 | 1
