Jabsco 50200-2011 Bronze Clutch Pump (12V / 1-1/2" BSP / Twin A) 505250

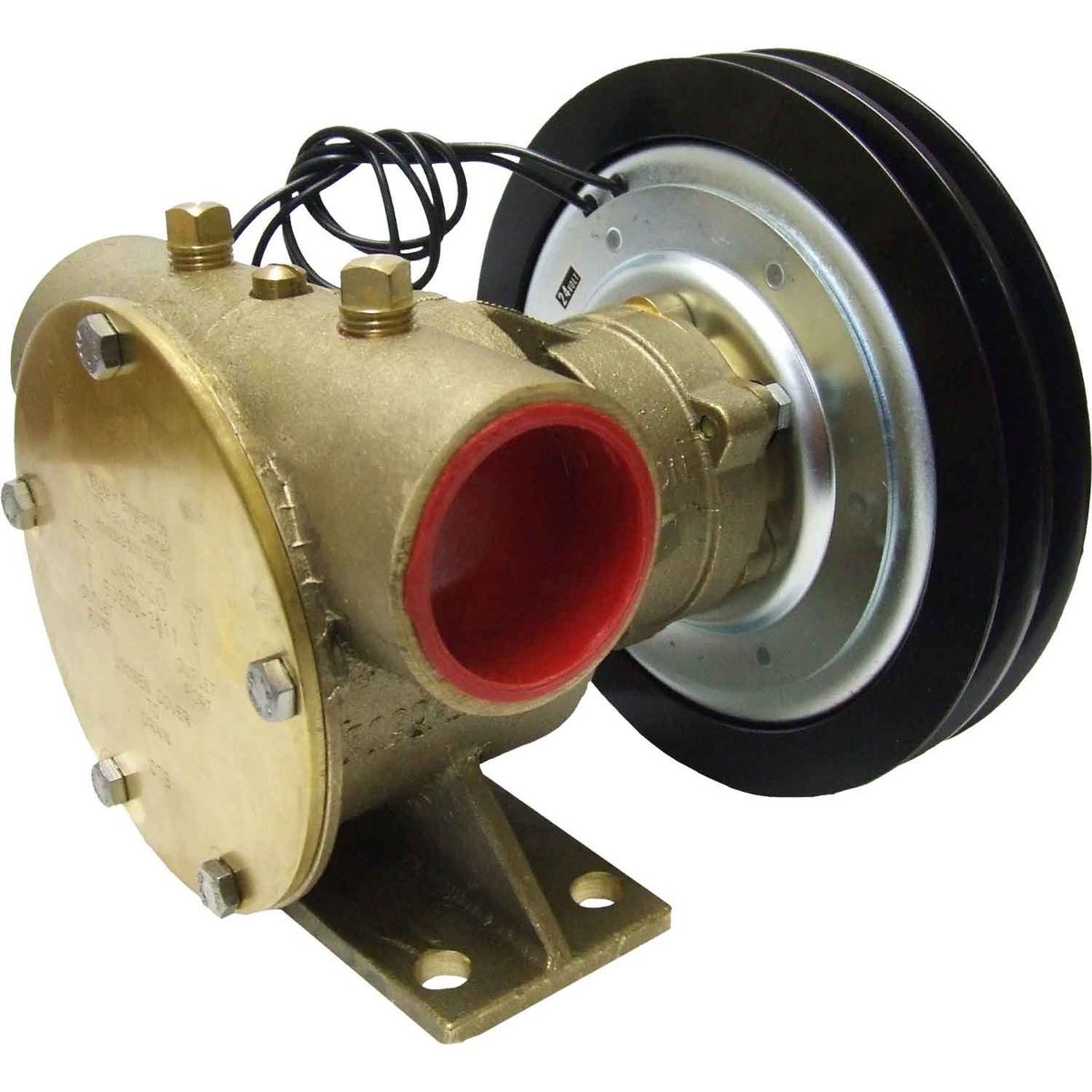

The Jabsco 12V foot mounted clutched pump is for bilge and deckwash applications. The pump has 1-1/2" BSP female ports and measures 200mm long with a 180mm pulley diameter (2A pulley) and 152mm across the ports. The Jabsco clutched pump is capable of pumping 195 litres per minute (43 gallons) at 3 metres total head. The starting torque of this clutch pump is 17.6Nm. This heavy duty bilge and deckwash pump has a bronze body, stainless steel shaft, mechanical shaft seal and comes with a neoprene impeller fitted for maximum performance when pumping clean or slightly contaminated water. A nitrile impeller may be fitted for use with oily water applications. The pump can self-prime up to 3 metres of vertical lift and is tolerant to moderate amounts of suspended solids. Jabsco Pump 50200-2011 Spare Parts: Part ID | Spare Parts | Part Number | Quantity 1 | Screw | X3001-176FB | 6 2 | End Cover | 12062-0000 | 1 3 | Gasket | 816-0000 | 1 4 | Impeller | 17935-0001B | 1 5 | Wearplate | 2574-0000 | 1 6 | Seal Assembly | 21849 | 1 8 | Cam | 834-0001 | 1 9 | Screw (3 Pack) | 91005-0040 | 1 11 | Slinger (3 Pack) | 3181-0000 | 1 12 | Seal | 817-0000 | 1 13 | Clutch Adaptor | 52201-0200B | 1 14 | Screw | X3001-180F | 3 15 | Electro Magnetic Clutch Field Coil (12V) | SP2300-0063FCUS | 1 16 | Screw | X3001-147F | 3 17 | Electro Magnetic Clutch Pulley Assembly (Twin A Groove) | SP2300-0061RA | 1 20 | Shaft | 50207-0000 | 1 21 | Key | SP1401-10 | 1 22 | Bearing | 92600-0040 | 1 23 | Retaining Ring (3 Pack) | 18711-0000 | 1 | Service Kit | SK407-0011 | 1
