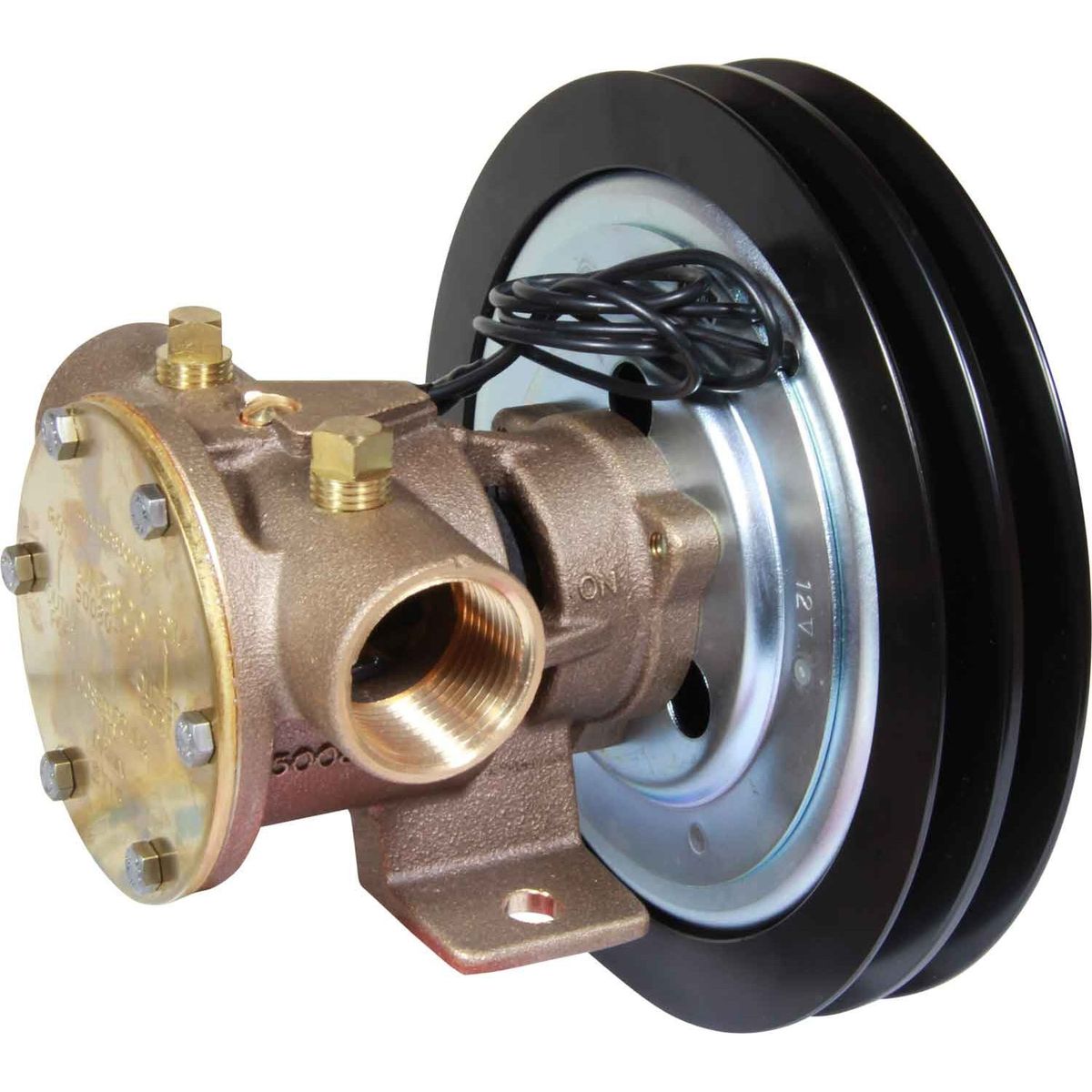

Jabsco 50080-2001 Bronze Clutch Pump (12V / 1" BSP / Twin A) 505240

The Jabsco 12V foot mounted clutched pump is suitable for bilge and deckwash applications. The pump features 1" BSP female threaded ports and measures 160mm long with a 180mm pulley diameter (2A pulley). The Jabsco clutched pump is capable of pumping 80 litres per minute (17.5 gallons) at 3 metres total head. This bilge and deckwash pump has a bronze body, stainless steel shaft and comes with a neoprene impeller fitted for maximum performance when pumping clean or slightly contaminated water. A nitrile impeller may be fitted for use with oily water applications. The pump can self-prime up to 2 metres of vertical lift and is tolerant to moderate amounts of suspended solids. Jabsco 50080-2001 Spare Parts: Part ID | Spare Parts | Part Number | Quantity 1 | Screw | X3001-147F | 6 2 | End Cover | 11831-0000 | 1 3 | Gasket | 890-0000 | 1 4 | Impeller & Gasket Kit | 17937-0001-P | 1 5 | Wearplate | 4156-0000 | 1 6 | Seal | SP2700-1027B | 1 8 | Cam | 934-0000 | 1 9 | Screw (3 Pack) | 91004-0090 | 1 11 | Slinger (3 Pack) | 3180-0000 | 1 12 | Seal | 913-0000 | 1 15 | Electro Magnetic Clutch Field Coil (12V) | SP2300-0063FCUS | 1 16 | Screw | X3001-176FB | 3 17 | Electro Magnetic Clutch Pulley Assembly (Twin 'A' Groove) | SP2300-0061RA | 1 20 | Shaft | 50087-0000 | 1 21 | Key | SP1401-10 | 1 22 | Bearing | 92600-0060 | 1 23 | Retaining Ring (3 Pack) | 18713-0000 | 1 | Service Kit | SK406-0001 | 1
