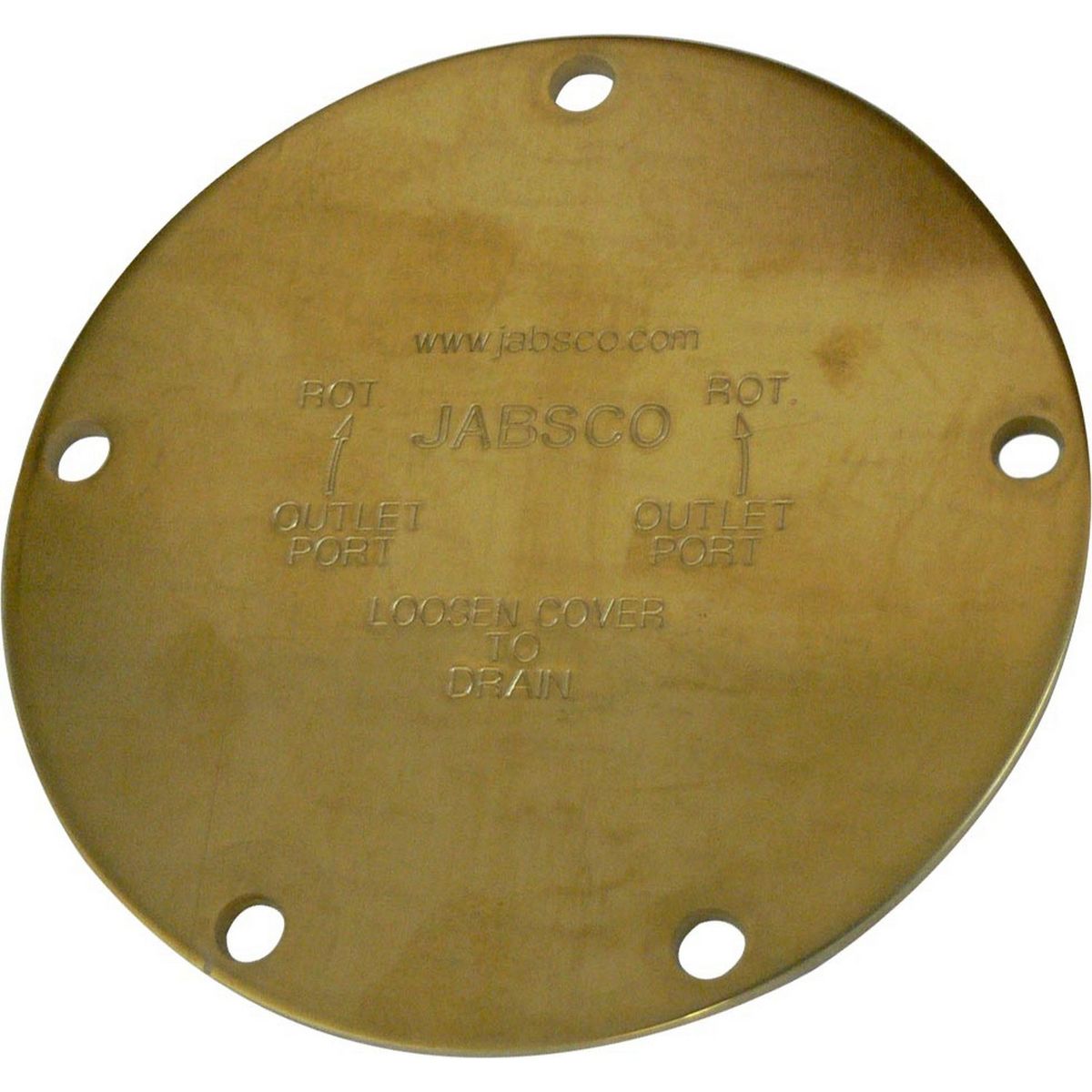

Jabsco 12062-0000 End Cover Plate (5 hole) JAB-12062-0000

Genuine Jabsco 12062-0000 replacement end cover plate for Jabsco engine cooling pumps, typical applications include many of the Jabsco 1.5" BSP and 2" BSP pumps. The Jabsco 12062-0000 pump end cover is the Jabsco USA part number for the Jabsco 9336 UK end cover, these are both the same end cover, which features 5 fixing holes. This Jabsco end cover can replace Johnson 01-42422, 01-42422-1 and 01-43136.

Jabsco 12062-0000 (9336) End Cover Pump Applications:
10590, 10590-0031, 10590-0041, 10590-0111, 10590-0141, 10590-0201, 10590-21, 10590-22, 10590-61, 10590-62, 10590-63, 10630, 10630-01, 10630-07, 10630-200, 10630-207, 10630-57, 10650, 10650-200, 10660, 10660-200, 10670, 10670-01, 10670-10, 10670-11, 10670-200, 10670-201, 10670-210, 10670-211, 10680, 10680-01, 10680-10, 10680-11, 10680-200, 10680-201, 10680-210, 10680-211, 10770-0051, 10770-0111, 10770-0151, 10770-0331, 10770-0351, 10770-0531, 10770-07, 10770-57, 10770-62, 10880-0051, 10880-0101, 10880-0151, 10880-07, 10880-21, 10880-2461, 10880-2561, 10880-2611, 10880-2661, 10880-62, 10980-0051, 10980-01, 11100-0101, 11100-01-01, 11100-0141, 11100-0151, 11100-0541, 11100-0601, 11100-0641, 11150-0011, 11790, 11790-01, 11870-0001, 11870-0003, 11870-0004, 11870-0005, 11870-0006, 11870-0007, 14300-0001, 14440-0001, 17520-0001, 17520-0002, 17520-0051, 17520-0052, 17810-1000, 18300-0000, 18310-0000, 18320-0000, 18320-0001, 18320-0002, 18330-0000, 18330-0001, 18330-0002, 18340-0000, 18370-0000, 21180, 21180-05, 21680-05, 21810, 21810-01, 21980, 21990, 22040-01, 22040-0131, 22040-0501, 22040-0531, 2570-0001, 2570-0011, 2570-0021, 2570-0051, 2570-0151, 2570-0211, 2570-3000, 29770-0001, 3110-0001, 3110-0011, 3240-0011, 3240-1001, 3570, 3570-0001, 4360, 4800-101, 4800-111, 4800-21, 4800-21-01, 4800-41, 4800-53, 4800-54, 4800-71, 50200-2003, 50200-2011, 50200-2103, 50200-2111, 50200-2203, 50200-2211, 50200-2303, 50200-2311, 50200-2903, 50200-9203, 50200-9303, 50200-9403, 50220-0011, 50220-0111, 50220-0211, 50220-0311, 50220-0903, 50230-0311, 50270-0011, 50270-0111, 50270-0211, 50270-0311, 50270-0911, 50270-0913, 50270-2011, 50270-2111, 50270-2211, 50270-2311, 50270-2313, 50270-2911, 50270-2913, 51200-2003, 51200-2011, 51200-9013, 51220-0011, 51270-0011, 51270-2011, 51270-2013, 51270-9013, 52200-2001, 52200-2003, 52200-2011, 52200-2041, 52200-2051, 52220-0011, 52220-0041, 52220-0051, 52230-0001, 52270-0011, 52270-2011, 52270-2013, 6400-0001, 6400-0004, 6400-0051, 6400-1051, 6400-200, 6400-205, 6400-207, 6590-0001, 6590-0003, 6590-0004, 6590-0005, 6590-200, 6590-237, 6980-0001, 6980-0002, 6980-0003, 6980-0004, 6980-0005, 6980-0006, 6980-0011, 6980-0411, 6980-3000, 7420-0001, 7420-0004, 7420-0101, 7420-1001, 7870-200, 7870-201, 7870-221, 7870-231, 7870-251 and 8950-0001.

The pump end cover (or end plate) is fitted to the end of the Jabsco pump and provides access to the pump impeller and internals. The end cover plate is designed as a service spare and will be worn by the impeller. Both the wear plate and the end cover are extremely important in ensuring that the pump works to designed specifications, and both the wear plate and the face plate should be checked at every impeller service / change and replaced if necessary.

Important Note: The pump model is almost always stamped on the end cover. Should a replacement end cover be fitted (not the existing one turned round) it is extremely important to note the original pump number as this will be needed when purchasing pump spares.
