Get A Sharper View From A Connected Helm

With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9-inch GPSMAP devices this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into the Garmin marine system.

See The World Below

Ultra High-Definition Scanning Sonar - Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid high-contrast colour palettes to help distinguish fish from structure. GPSMAP 943xsv also supports 1 kW CHIRP traditional sonar capabilities.

Panoptix Sonar Support - Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around the boat in real time.

Navigate With Eease

Faster Sharper Smarter - With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint it’s easy to retrofit this 9-inch plotter in a wider range of dash configurations.

Improved Display Optics - New higher-resolution 9-inch displays offer improved sunlight readability with 50% more pixels than previous-generation 9-inch GPSMAP devices.

Optional BlueChart G3 Vision Charts - These optional charts offer the best of Garmin and Navionics data Auto Guidance3 technology and other premium navigation features.

Optional Radar Bundle - To help avoid weather and traffic on the water the compact 4 kW GMR 18 HD+ dome radar is available as a bundled option with this GPSMAP chartplotter/sonar package.

Connect To Everything On The Boat

Garmin Marine Network - Share information - such as maps user data radar and IP camera video among multiple compatible Garmin devices on the boat.

NMEA 2000 And NMEA 0183 Networks - Connect to compatible autopilots digital switching weather Fusion-Link audio system media VHF AIS and more from one screen.

ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature smart notifications software updates Garmin Helm digital switching Garmin Quickdraw Community data and more.

Integrated ANT Technology - Connect with devices such as quatix marine watches gWind Wireless 2 transducers transducers GNX Wind marine instruments and wireless remote controls.

J1939 Connectivity - Connect the chartplotter to different kinds of engines including select Yamaha engines.

OneHelm Feature - This exclusive feature brings together all the operations and capabilities of select third-party devices such as EmpirBus digital switching on one screen.

In The Box

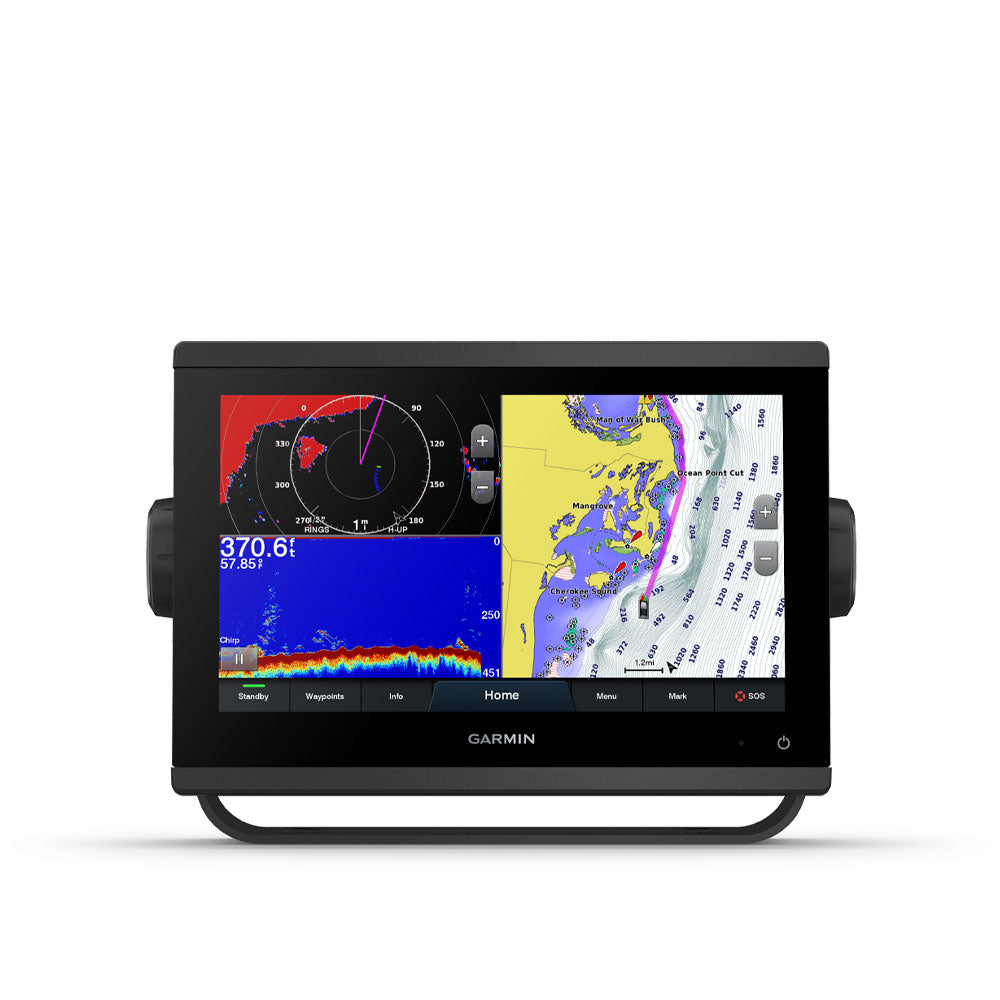

• GPSMAP 923xsv chartplotter
• microSD card preinstalled
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 metres)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
