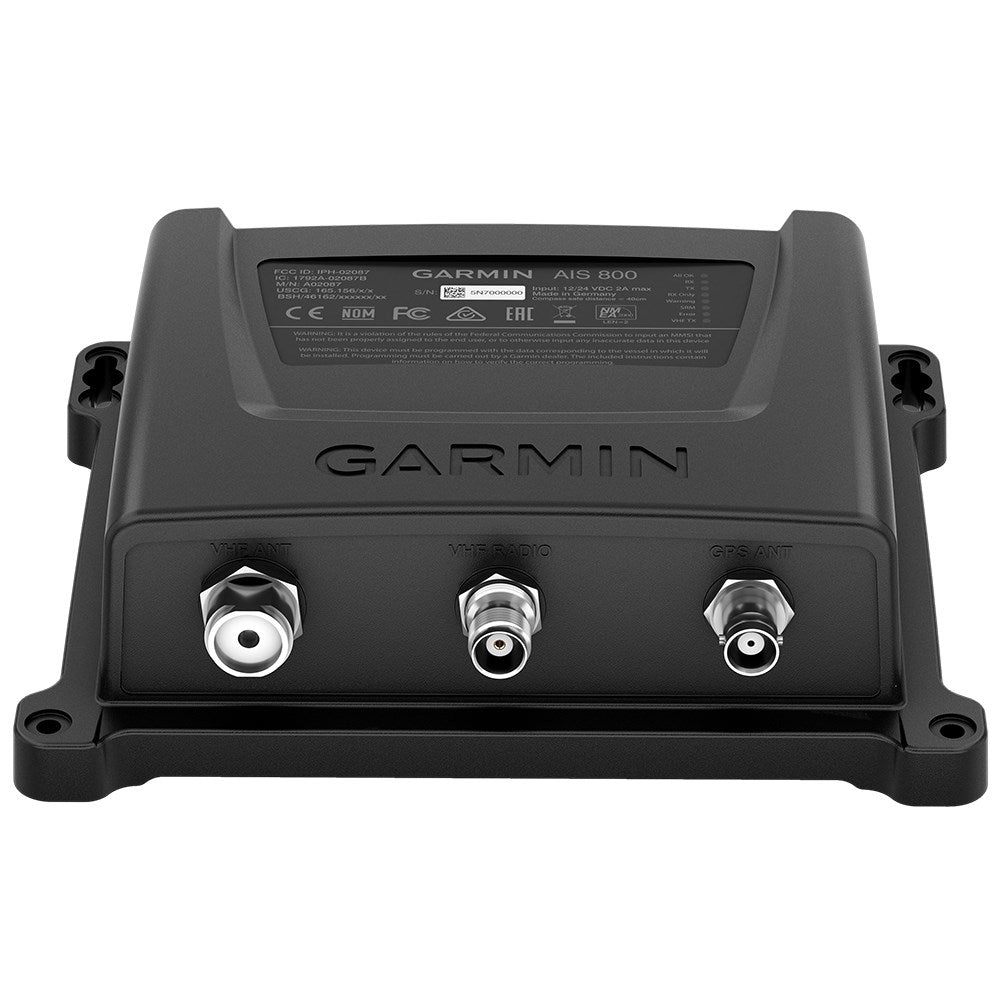

Garmin AIS 800 Blackbox Transceiver
Garmin AIS 800 Blackbox Transceiver
SKU:230-0100208700
Couldn't load pickup availability
- Dimensions: 17.5 x 14.2 x 5.5 cm
- Weight: 414 g
- Operating temperature range: -15°C to 55°C
- Waterproof rating: IPX7
- Compass safe distance: 40 cm
- Operating voltage: 9.6 - 31.2 Vdc
- Current drain: 12Vdc: < 400 mA; 24Vdc: < 250 mA
- Antenna connector: S0-239 (50 Ω)
- GPS refresh rate: 1 Hz
- Max antenna gain: 9 dB
- Transmitter power: 5 W
- NMEA 2000 LEN: 2
Help avoid running into trouble on the water
- Easy-to-use reliable communication transmits your vessel information to other AIS receivers in your area while receiving AIS target data
- 5 watts of transmit power with Class B/SO provides faster positioning reporting than ever before (When cruising above 14 knots.)
- Built-in GPS with connector for optional external antenna
- NMEA 2000® connectivity for easy integration with compatible chartplotters and multifunction displays
- Internal VHF antenna splitter allows VHF and AIS to share a single antenna
Increase your situational awareness and confidence on the water with the Garmin AIS 800 transceiver. It has 5 watts of transmit power and provides faster position reporting than ever before (when cruising above 14 knots). It transmits your vessel information to other AIS receivers in your area while it receives their AIS target data. Garmin AIS 800 has an internal VHF antenna splitter which allows the VHF and AIS to share a single antenna. It includes a built-in GPS (with connector for optional external antenna) and integrates seamlessly into the Garmin on-board system.
The transceiver features NMEA 2000/0183 connectivity for easy integration with compatible chartplotters and multifunction displays. And it’s all packed into an easy-to-install black box unit with a small footprint.
