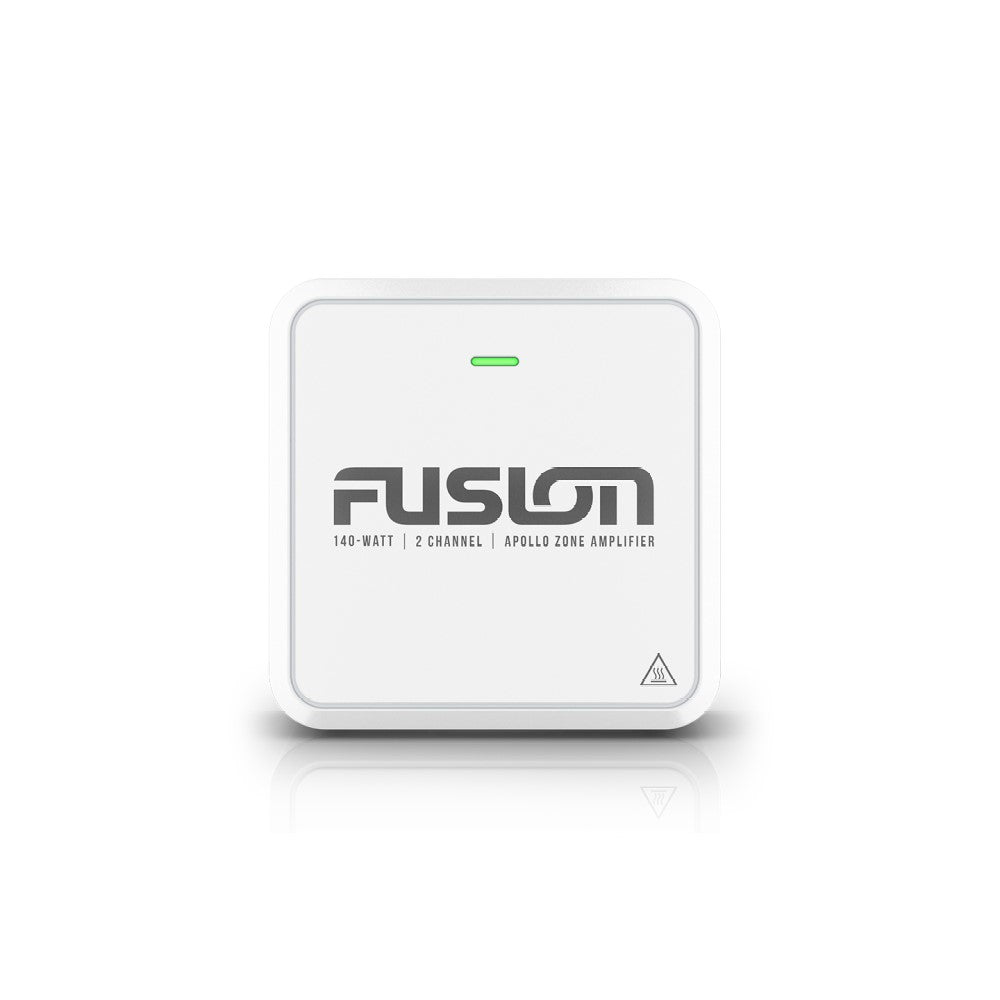

Fusion Apollo AP-DA214 2 Channel Marine Zone Amplifier

• Physical Dimensions Without Bracket: 3.94\" x 3.94\" x 1.57\" (100 x 100 x 40mm)
• Weight: 1.01 lb (460g)
• Water Rating: IPX7
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 20-watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD
• Peak Power: 140-watt
• Operating Voltage: 10.8 V - 32 V DC
• Power Consumption (StandBy): < 1 mA @ 14.4 V input
• Power Consumption (Max): 10 A
• Fuse Rating: 16 A electronic fuse (no replacement necessary)
• Operating Temperature Range: 32° to 122° F (0° to 50° C)
• Warranty: 3 years

Amplify the moment with an Apollo™ marine amplifier – designed specifically for use with any Fusion® DSP-enabled marine stereo and Fusion speakers.

This efficient zone amplifier provides audio zone expansion for high-quality sound in more areas on the boat. With 20-watt RMS per channel (at 4 ohm) this 2 channel amplifier allows the addition of an extra pair of speakers on board. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link™ app on a compatible smartphone).

Features:

RMS Power: 20-watt RMS per channel (at 4 ohm) allowing you the addition of an extra pair of speakers on board.

Efficient Class-D Design: Uses less power listen to music for longer at higher volumes with less drain on the battery.

Easy Tune Feature: Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).

Compact Design: The compact size of the zone amplifier makes it a versatile option for mounting on board.

LED Indicator: Show issues with electrical currents and shorts as well as temperature.

Less Total Harmonic Distortion: The amplifier is designed with minimal distortion and noise allowing for better quality audio.

Ignition Protected: Intelligent electronic fuse prevents damage from over/under current temperature output short and other faults.

Conformal Coated PCBs: The amplifier circuit board has been specially coated to provide enhanced protection from the marine elements.

Powder Coated Aluminum Finish: Salt fog temperature vibration and UV tested with a modern aesthetic stylish design.

Easy Installation: A mounting bracket is included in the box simply clip the amplifier in place for a clean finish.

12- and 24-Volt Compatible: The zone amplifier is designed to work with both 12- and 24-volt electrical systems.

True-Marine™ Design: Designed to withstand the harshest marine environments season after season the zone amplifier is IPX7 rated and comes with a 3-year warranty.

Designed Specifically For Fusion Audio Systems

The Apollo™ marine amplifiers are designed specifically for use with Fusion® DSP-enabled stereos (Apollo RA770 Apollo RA670 Apollo WB670 and MS-RA210) and Fusion speakers/subwoofers to deliver an unparalleled audio experience to your boat.

Power and Efficiency

The Apollo marine amplifiers provide the best performance and most impressive power for a superior audio experience. This zone amplifier has a Class-D design to produce an efficient 20-watt RMS per channel (at 4 ohm) with less drain on the battery allowing to easily add an extra pair of speakers on board to provide high-quality audio in more zones on the boat.

Easy Tune Feature

The Easy Tune feature allows easy setup of the  Apollo marine amplifier without the need to fine-tune or adjust complex audio settings.

Simply select the relevant DSP audio profiles from the Fusion-Link™ app on a compatible smartphone to tune and sync your amplifier for optimal audio reproduction. The audio settings will be adjusted automatically for the best possible sound quality.

Note: Fusion DSP-enabled marine stereo (Apollo RA770 Apollo RA670 Apollo WB670 MS-RA210) and Fusion speakers/subwoofers required.
