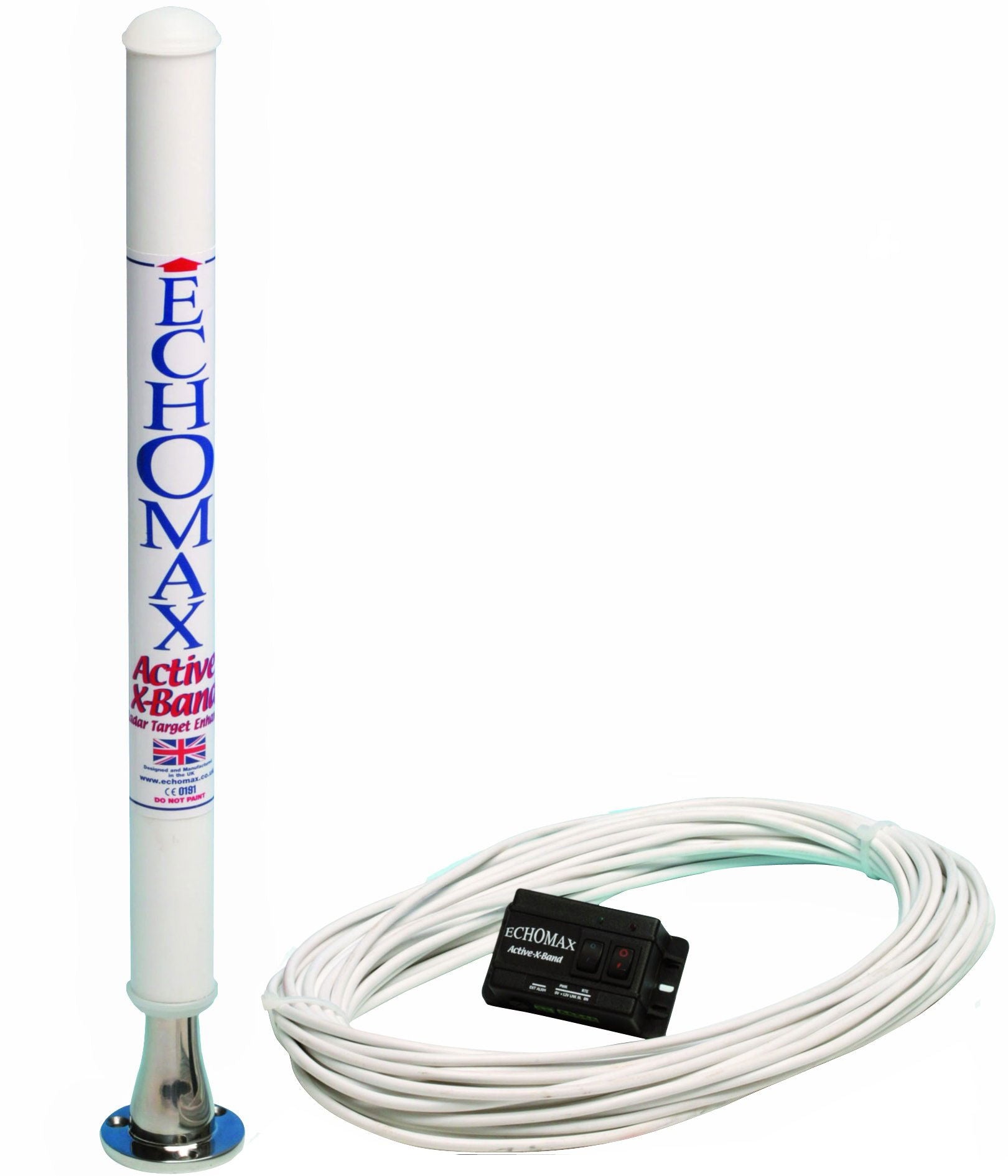

Echomax Active X with Standard Control Box & 24m Cable
Echomax Active X with Standard Control Box & 24m Cable
SKU:38075.1
Couldn't load pickup availability
Echomax Active X Radar Target Enhancer (RTE) responds to X band radar exceeding the X band requirements ISO 8729-2 standard
● Control unit for interior installation
● On off switch and red LED
● When radar pulse is received Green LED illuminates & optional buzzer
● Relay contact for wiring remote indicators/alarm
● Alternative base or rear wiring facility
● Externally accessible fuse
● Panel to mount unit flush available as an extra
● FCC certified
Fitting
The RTE has a 1"- 14 female thread in the bottom through which the cable passes. Mast mount with the "38147 Mast Bracket" or the "38146 Ocean Mast Bracket". *When supplied with lights the cable specification and length supplied is a 5m, 4 core cable.
Specification
Reception frequency: X band 9.32 - 9.5 GHz. Voltage: 12V DC (surge and cross polarity protected) X BAND Performance Response No heel: 111.36m2 +/-10˚ of heel: 78.96m2 +/-20˚ of heel: 20.80m2
Current Consumption
Standby current: <15mA, 5 interrogating radar: <23mA, 10 interrogating radar: <32mA
Position accuracy: Within 1 metre
Dimensions & Weight
Antenna : 478 x 40.5mm
Weight: 327g excl. cable
Control Box : 51 (H) x 92 (W) x 38 (D)mm
Cable : 24m 2 core 0.5mm2. Cable Weight: 969g
