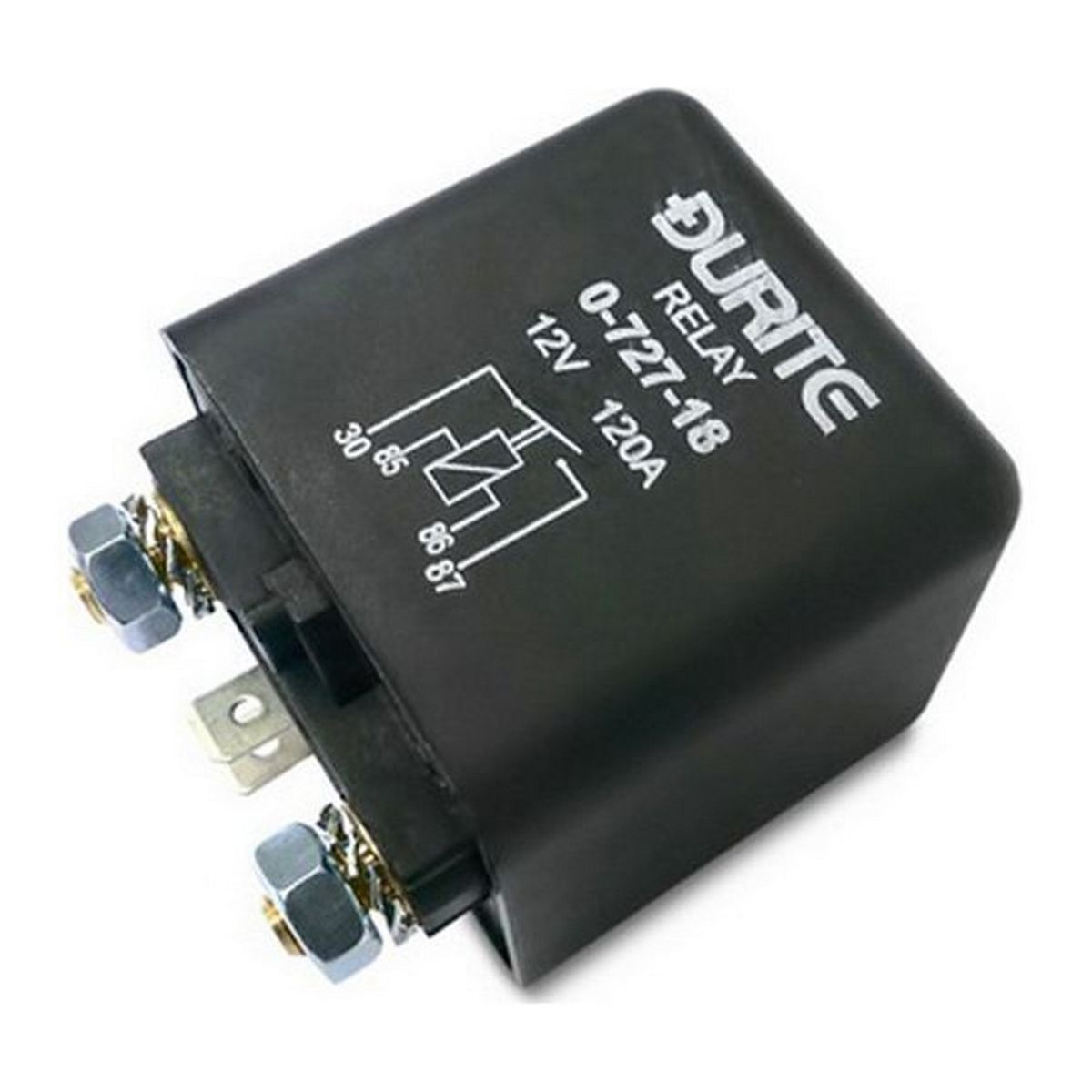

Durite 0-727-18 Relay Extra Heavy Duty (12V / 120A)
Durite 0-727-18 Relay Extra Heavy Duty (12V / 120A)
SKU:VS-105
Couldn't load pickup availability
Durite 12V 120A extra heavy duty make and break relay 0-727-18 with fixing bracket. Rated 120A at 12V DC. 2 x 6.3mm blade type terminals. 2 x M6 studs.
Current: 120A continuous, 180A intermittent
Excitation voltage 7.2V
Coil dropout voltage 3.8V
Coil current 0.3A
Coil resistance 40 ±5%
Terminal voltage drop 0.2 - 0.3V
M6 Stud Brass
Torque 5 N/m (maximum)
Case material Nylon PA6 with 15% Glass Fibre
Operating temperature range -30?C to +80?C
Storage temperature range -40?C to +85?C
Operating life 5 x 104 (electrical)
Weight: 96g
Dimensions: length 45.9mm x width 45.9mm x height 62.8mm (excluding terminals)
