Digital Yacht Navdoctor NMEA200 Diagnostics Tool

• NMEA 2000 Wireless Diagnostic Tool
• Self powered from NMEA 2000 bus – fits in seconds
• Creates its own wireless network on the boat or can join an existing network in the workshop
• No apps required NAVDoctor’s simple web interface displays in your browser
• Lists all devices on the NMEA network and all PGNs being transmitted
• Health page gives you an immediate snapshot of the networks key performance parameters
• Can log all data to text file for in-depth analysis
• Generates a Network Health Report that you can either print or save to PDF
• You can give a health report to the customer or you can retain for your own installation records

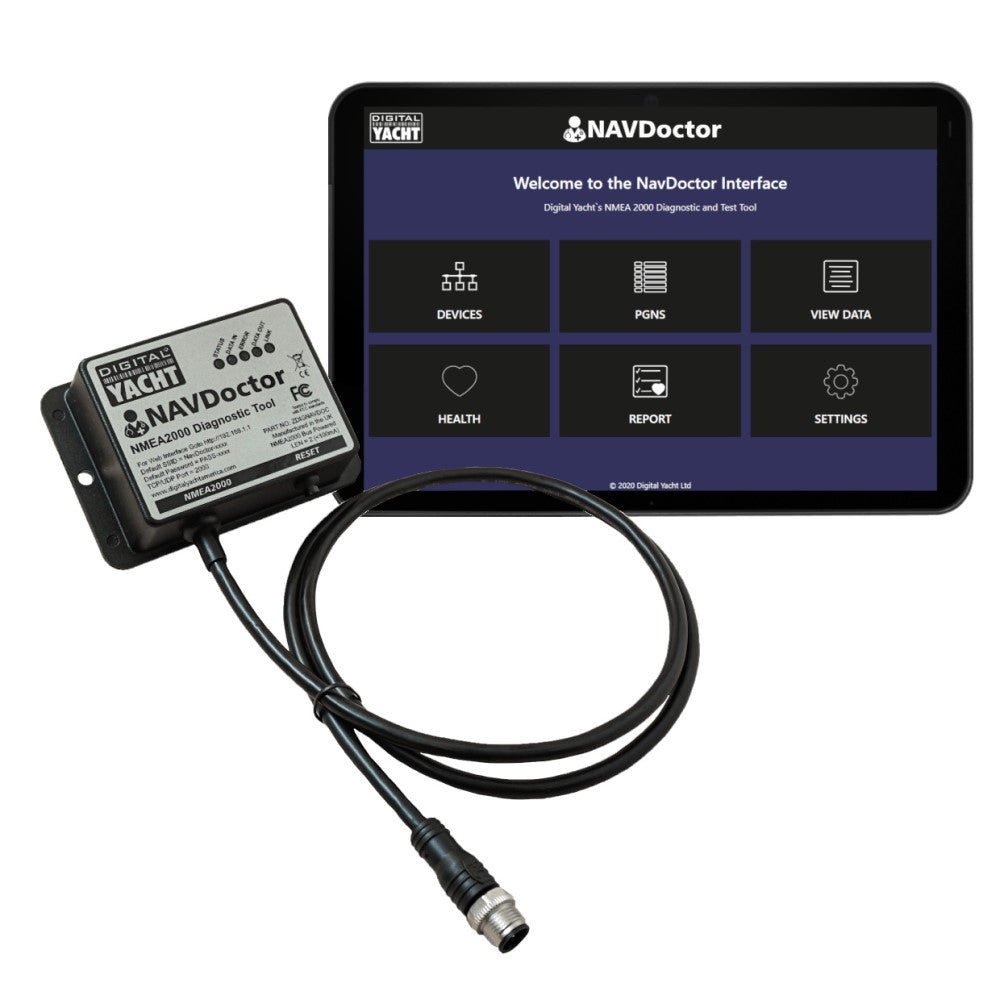

NAVDoctor is a portable NMEA 2000 network diagnostic tool/tester. It allows you to quickly check and diagnose the NMEA 2000 network. It combines the functionality of existing NMEA 2000 display programs and test equipment into a single cost effective simple plug ‘n play box.

It’s self powered from the network and creates a local wifi point for a mobile phone tablet or PC to connect.  Once connected you simply access functions through a web browser so there’s no complicated software to install.

NMEA 2000 networks are based on a robust Canbus architecture but one bad device cable or termination can have a detrimental effect on performance.  Fault finding can be time consuming and tricky so having a NAVDoctor in your toolkit will save you time money and frustration.

NAVDoctor is an essential tool for every marine electronics technician or installer and also offers the capability of printing a network health check certificate to validate an installation and improve customer service.
