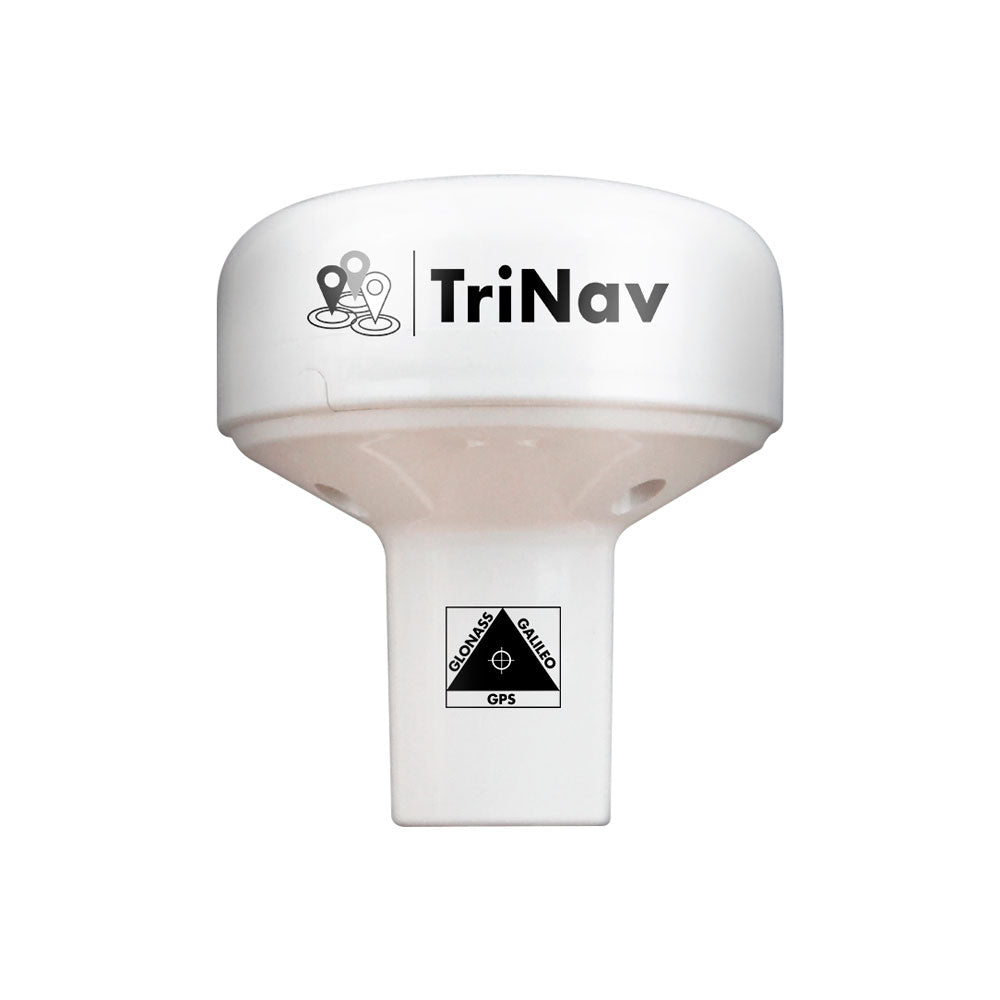

Digital Yacht GPS160 NMEA0183

• 72 channel GPS Glonass and Galileo GNSS positioning receiver
• Typically sub 1m accuracy thanks to TriNav™ technology –combines all satellite data for optimum accuracy
• Can be configured as dedicated GPS Glonass or Galileo only device
• Refined anti-spoofing algorithm for robust performance of position and interference rejection
• Available Seatalk1 (with Seatalk converter) NMEA 2000 (with iKonvert interface) and wireless (with WLN10SM) variants
• GPS160USB also available with USB connection for PC/MAC
• User/field can select 4800 38400 and 115200 baud operation through simple internal DIP switches
• Many formats of NMEA data output including datum information –user can configure through internal DIP switches
• Up to 18Hz update rate (user can select)
• Ultra low (<20mA) power consumption at 12V DC
• 10m cable
• Input for MOB switch/system –when triggered generates synthetic AIS MOB NMEA output to activate MOB position on plotter
• Efficient system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
• Puck installation or fits 3rd party industry standard 1” x 14TPI threaded mount

Digital Yacht have unveiled their TriNav™ GPS160 a GPS antenna with NMEA 0183. This is a new high performance positioning sensor using GPS Glonass and the new Galileo satellite systems. Therefore providing exceptional position accuracy and redundancy. Typical accuracy is better than 1m. Data can also be set to output at up to 18Hz for smoother plotter track displays. TriNav™ software technology also improves positioning inaccuracy that could occur through spoofing and local interference.

The device has a variety of modes through field programming. This includes single GNSS operation (eg Galileo only) as well as output configurations such as update rate NMEA sentence structure etc.

The GPS160 with NMEA 0183 output (4800 38400 and 115200 baud programmable). As well as a USB variant for PC MAC and Linux. For NMEA 2000 systems we offer a bundle with a Digital Yacht iKonvert NMEA 2000 gateway. Therefore allowing the easy and flexible install of NMEA 2000 without the need for cumbersome drop cables.

The GPS160 also supports a simple external MOB (man-over-board) switch or device. When triggered the GPS160 creates a “synthesised” AIS SART MOB message on its NMEA output. This can then interface with a local plotter to identify the MOB. Most modern plotters support this with a clear MOB icon. As well as instant bearing and distance data to navigate to the casualty.

To learn how to wire the GPS16o to your navigation system click here

Galileo
Galileo is the new global navigation satellite system (GNSS) that has been in development over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is now fully operational as of 2020.

There are currently 22 satellites in usable condition. This means the satellite is working and adds to the service provision. There are then 2 satellites that are in “testing” and 2 more are marked as not available. The final constellation now consists of 30 satellites (24 operational and 6 spares) as of 2020.
