For boat owners looking for ultra-fast internet on board the new 5G Xtream from Digital Yacht offers 4G and 5G connectivity as well as integration with Starlink satellite systems for the best and affordable blended internet afloat.

The 5G Xtream can support 5G (shoreside) connection speeds up to 3.1GB/s but also integrates a 4G Cat 20 modem which offers connectivity up to about 25NM from shore at speeds of up to 2GB/s.  The system uses three external antennas with dual high gain vertical antennas and a separate compact dome for the higher 5G frequencies.  This MIMO technology and critically separate antennas gives optimum performance.  There’s support for dual SIMs with auto (failover) or manual switching between operators.

The 5G Xtream features dual band (2.4 & 5GHz) wireless connections so users on board simply search for the secure wifi point and connect.  There’s also 4 LAN ports (10/100/1000MBs) for wired devices like Smart TVs and a WAN port which is optimised for Starlink satellite connectivity allowing the 5GX to act as a sophisticated and fast router for all on board internet communications.

The Wi-Fi router can also be configured to access marina wifi hotspots as an additional method of internet access.  This also supports the very latest 5GHz marina wifi services and there’s a high gain external wifi antenna also available as an accessory.
For advanced users the 5G Xtream allows for user management VPNs blacklists and IOT applications.  NMEA 0183/2000 data can also be connected using Digital Yacht’s LANLink devices.   The integrated GPS allows for SMS reporting of boat position or even a geofence/drift setting when the boat is at anchor on in port.

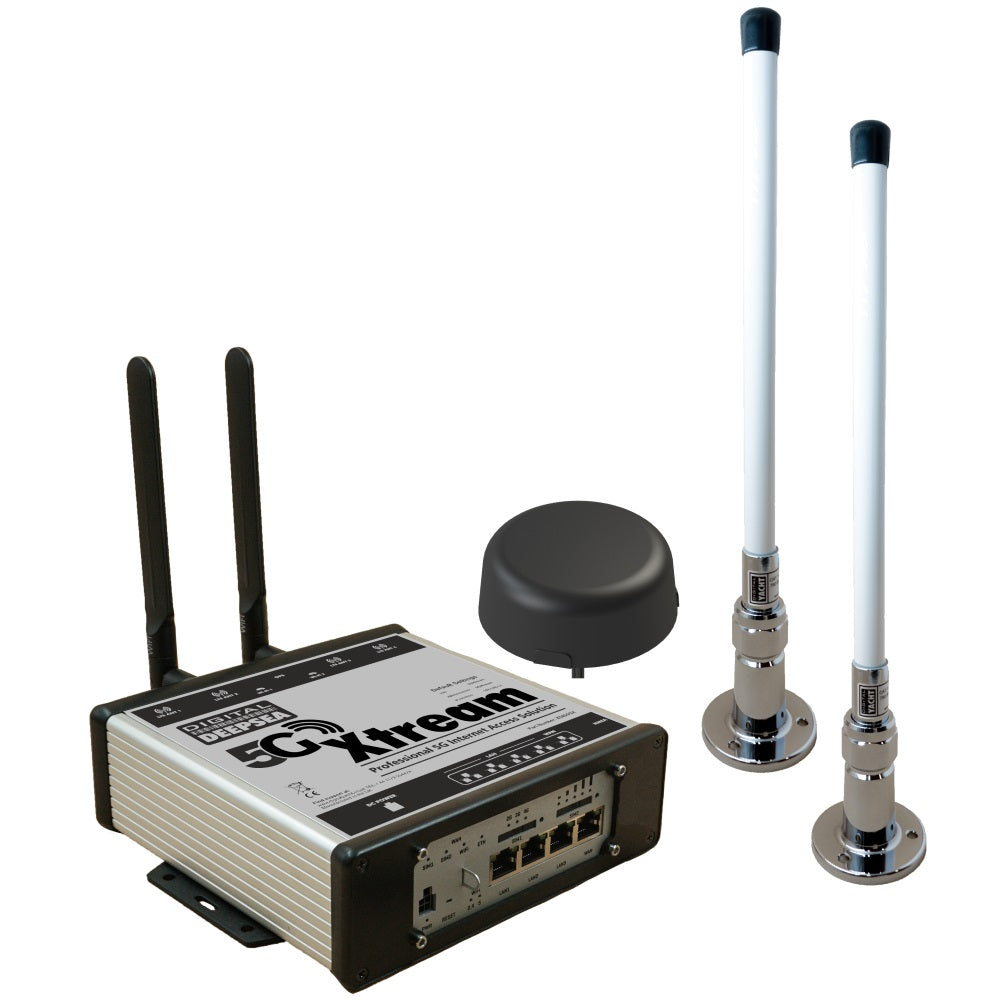

The Digital Yacht 5G Xtream is supplied as a complete solution with antennas mounts and cabling – all that’s additionally required is a cellular SIM.

Configuration

Configuration is very simple. Just insert the SIM cards. The 5G Xtream has two standard SIM slots and it is possible to fit two SIMs from two different network operators. By default the 5G Xtream will query the SIM that is installed and automatically select the APN settings from its internal database.

However it is very important that you “lock down” your wireless network with your own network name (SSID) and wireless password. This task only takes a couple of minutes and is dona via the 5G Xtream web interface.

User Interface

Accessing 5G Xtream functionality is via an easy web interface.  Any locally connected device can simply enter the IP address to the password protected interface to set up functions view traffic and logs and configure wifi.

Once set up there should be no requirement to login other than for diagnostics and configuration.  Users simply access the internet through the wifi connection just as they would in the home or office.
