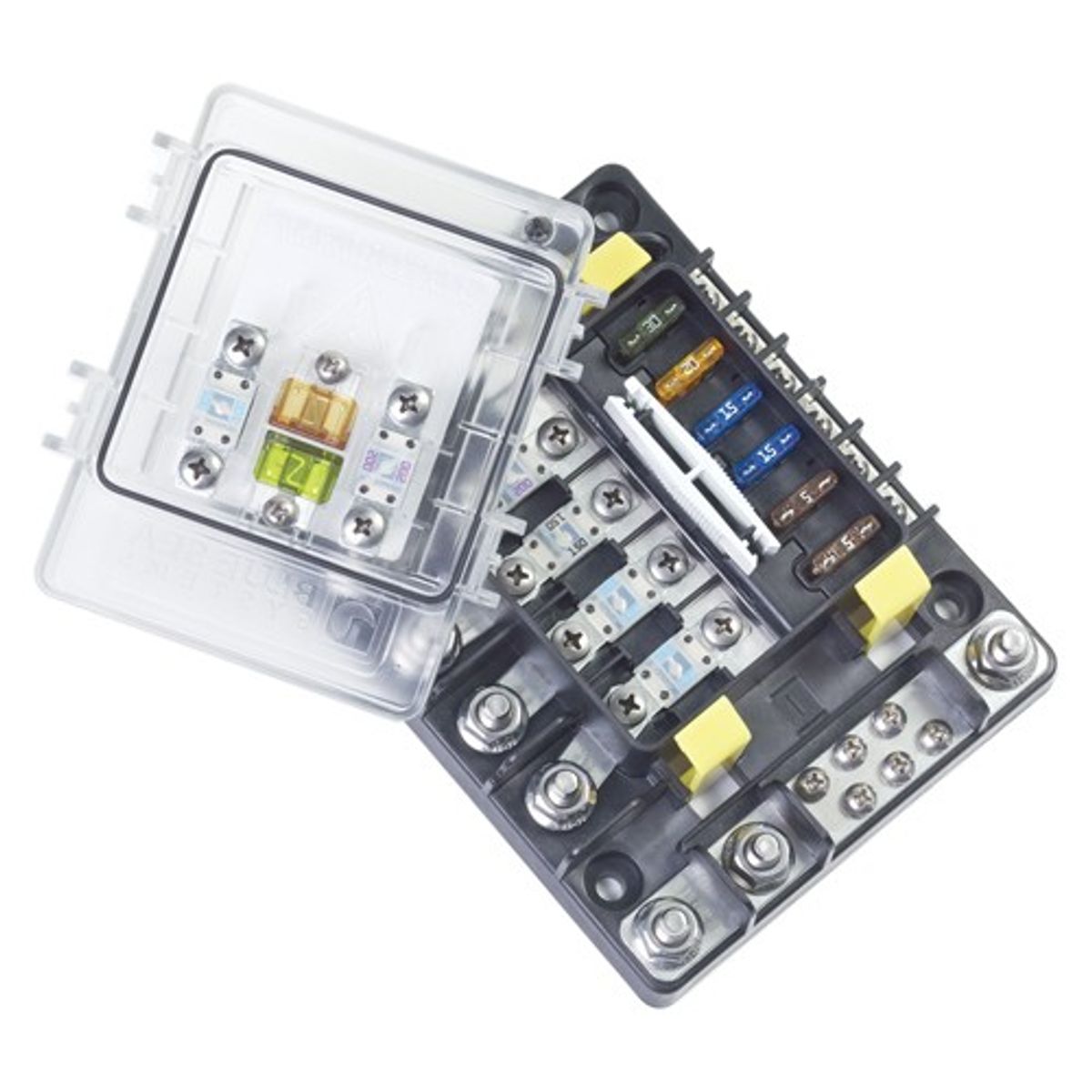

Blue Sea Safetyhub 150 Fuse Block 10 Circuit (600A Max)

Blue Sea SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to ten fused circuits.
Four 30A?200A MIDI® or AMI® Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
Six 1A?30A ATO® or ATC® Fuses for low amp circuits including bilge pumps, electronic and lights.
Sealed cover protects fuses from the harsh marine environment
Negative bus provides common location for negative collection
Circuit identification label with write-on capability
Fuse puller easily removes ATO® or ATC® fuses
Cover provides storage space for two spare ATO® or ATC® and two spare MIDI® or AMI® fuses and mounting screws
Fuses sold separately
Regulatory:
CE marked. Meets ISO 8846 ignition protection, and SAE J1171 external ignition protection requirements.
IP66 - protected against powerful water jets.

Circuits: 10
Stud Size: M8 x 1.25
Operating Voltage: 12V, 24V, 32V
Amperage Maximum Operating - combined: 200A (Using 2/0 Cable), 350A (Using 4/0 Cable), 600A (Using 2 x 4/0 Cable)
Recommended Ring Terminal: M8 (5/16")
Screw Torque 8-32: 18in-lb (2.03 Nm)
Screw Torque M5: 27in-lb (3.05 Nm)
Stud Torque: 180 in-lb (20.34 Nm)
Weight: 3.50lb (1.59 kg)
