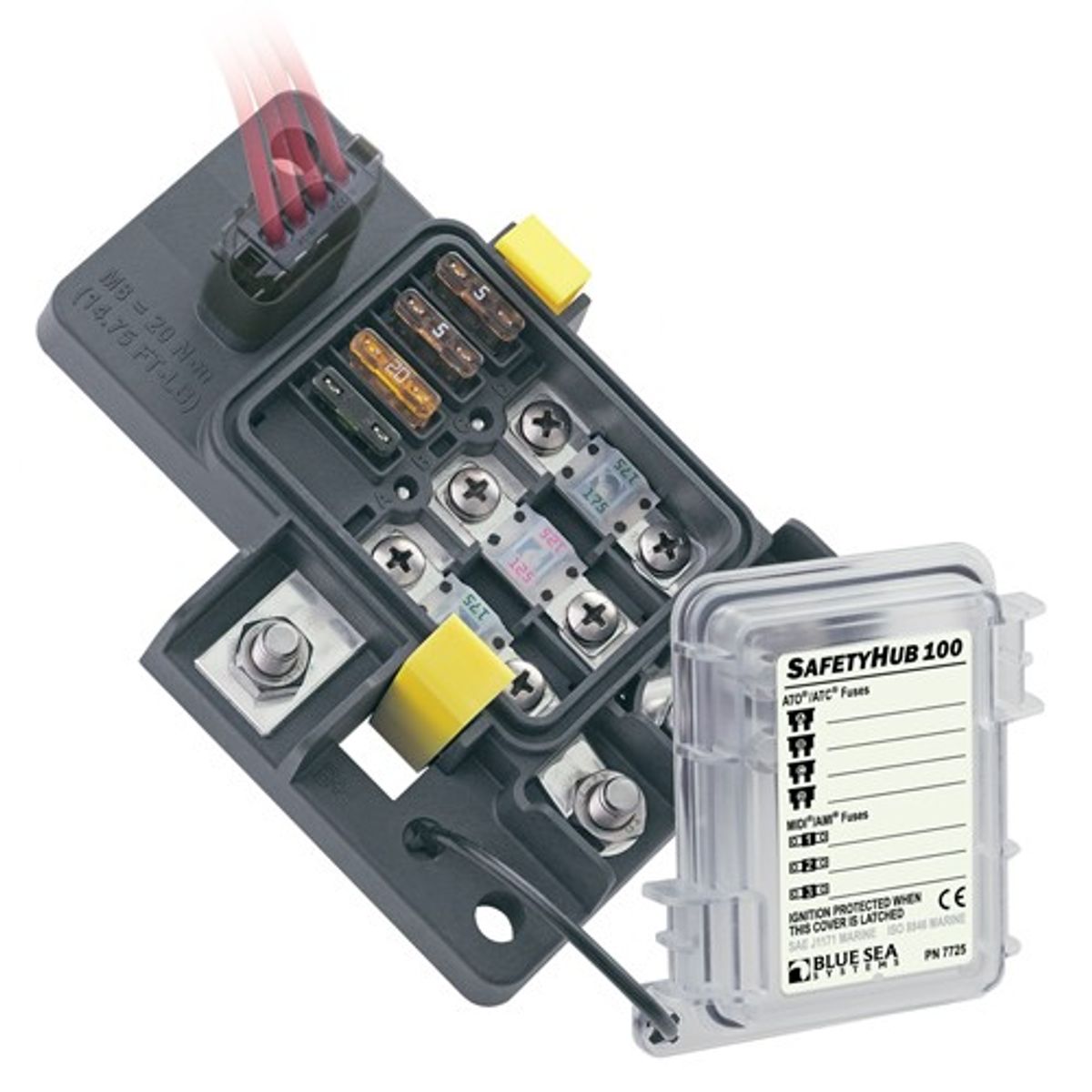

Blue Sea Safetyhub 100 Fuse Block 7 Circuit (280A Max)

Blue Sea SafetyHub 100 fuse block is capable of consolidating and protecting multiple 1A to 200A circuits. It is ignition protected for use on gasoline powered boats, and the reduced wiring connections make it easy to install. The SafetyHub can be used for main or branch circuit protection. This fuse block is able to consolidate multiple fuses into a compact space and is highly suited for vessels ranging from ski boats to offshore fishing boats. Whether used by boatbuilders to decrease cost and weight in new boats, or by installers to upgrade an existing electrical system, the SafetyHub fuse block provides a safe and reliable approach to circuit protection.
The SafetyHub 100 combines an ignition protected fuse block and integrated connecting plugs. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.
Three 30A?200A MIDI® or AMI® Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
Four 1A?30A ATO® or ATC® Fuses for circuits including bilge pumps, electronics and lights
Sealed cover protects fuses from the harsh marine environment
Integrated connector plug eliminates loose wires & provides a secure, waterproof connection
Fuses sold separately
Regulatory:
CE marked. Meets ISO 8846 ignition protection, and SAE J1171
external ignition protection requirements.
IP66 - protected against powerful water jets.

Circuits: 7
Stud Size: M8 x 1.25
Operating Voltage: 12V, 24V, 32V
Amperage Maximum Operating - combined: 280A
Recommended Ring Terminal: M8 (5/16")
Screw Torque 8-32: 18in-lb (2.03 Nm)
Screw Torque M5: 27in-lb (3.05 Nm)
Stud Torque: 180 in-lb (20.34 Nm)
Weight: 3.20lb (1.45 kg)
