Blue Sea PowerBar 1000 Busbar (8 x 3/8" Studs)
Blue Sea PowerBar 1000 Busbar (8 x 3/8" Studs)
SKU:8-21990
Couldn't load pickup availability

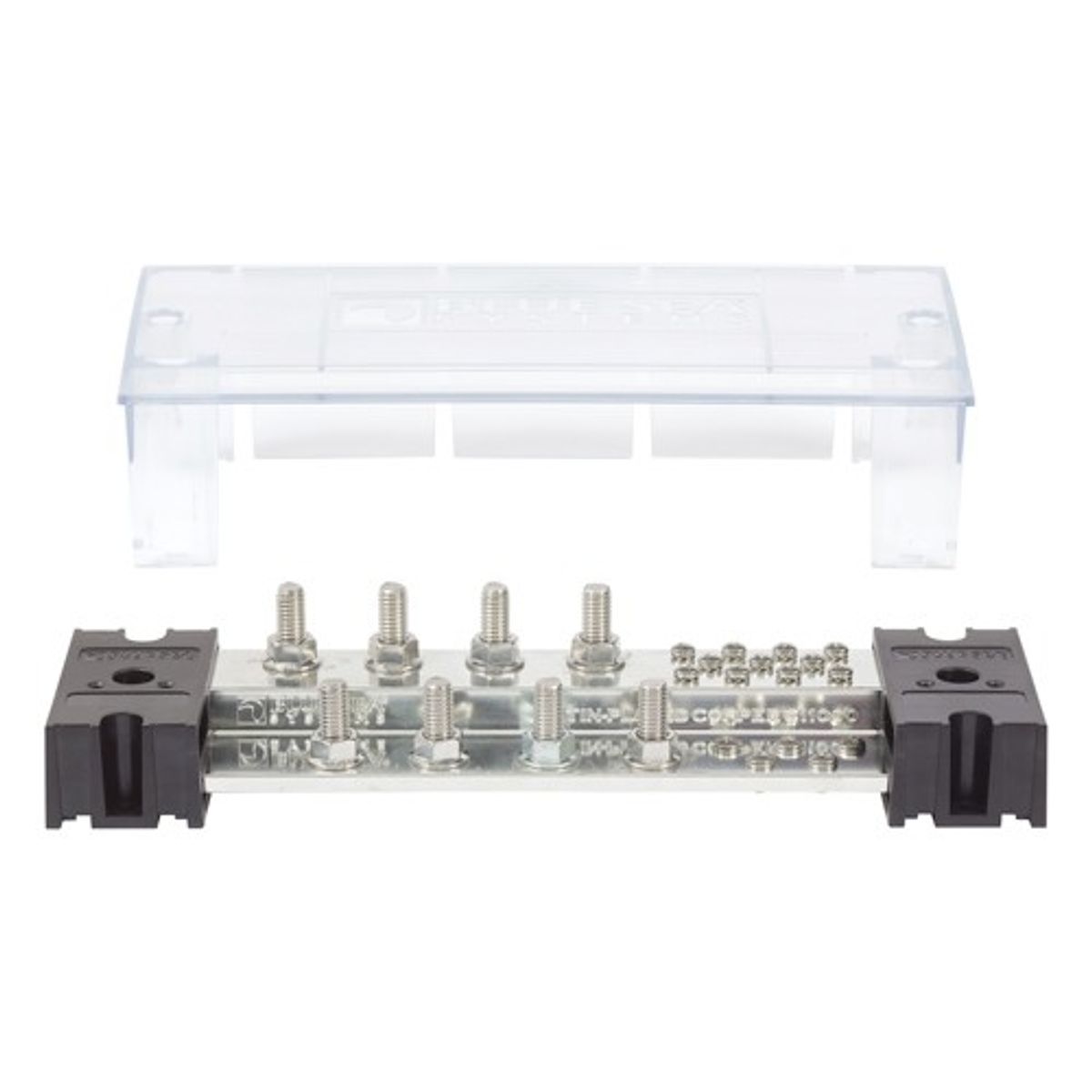

Blue Sea PowerBar 1000 (1000A) Common BusBar with 8 x 3/8" terminal studs.
Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000A busbar with various size studs and screws to connect conductors and fuse blocks. A snap-on insulating cover is included.
1,000 Amp busbar for large complex wiring systems
Tin plated pure electrical copper for maximum conductivity
Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
One-piece serrated flange nuts ensure correct and secure connections
Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
Busbar may be cut to a shorter length to accommodate constricted spaces
Bi-directional busbar end caps allow the ganging of additional busbars
Snap on insulating cover meets ABYC & USCG requirements & includes label recess
3/8" terminals
Specifications:
Continuous Rating: 1000A
Max Operating voltage; 150V
Mounting Holes: Accepts #10 (M5) Screws
Bus Material: Tin Plated Copper C11000
