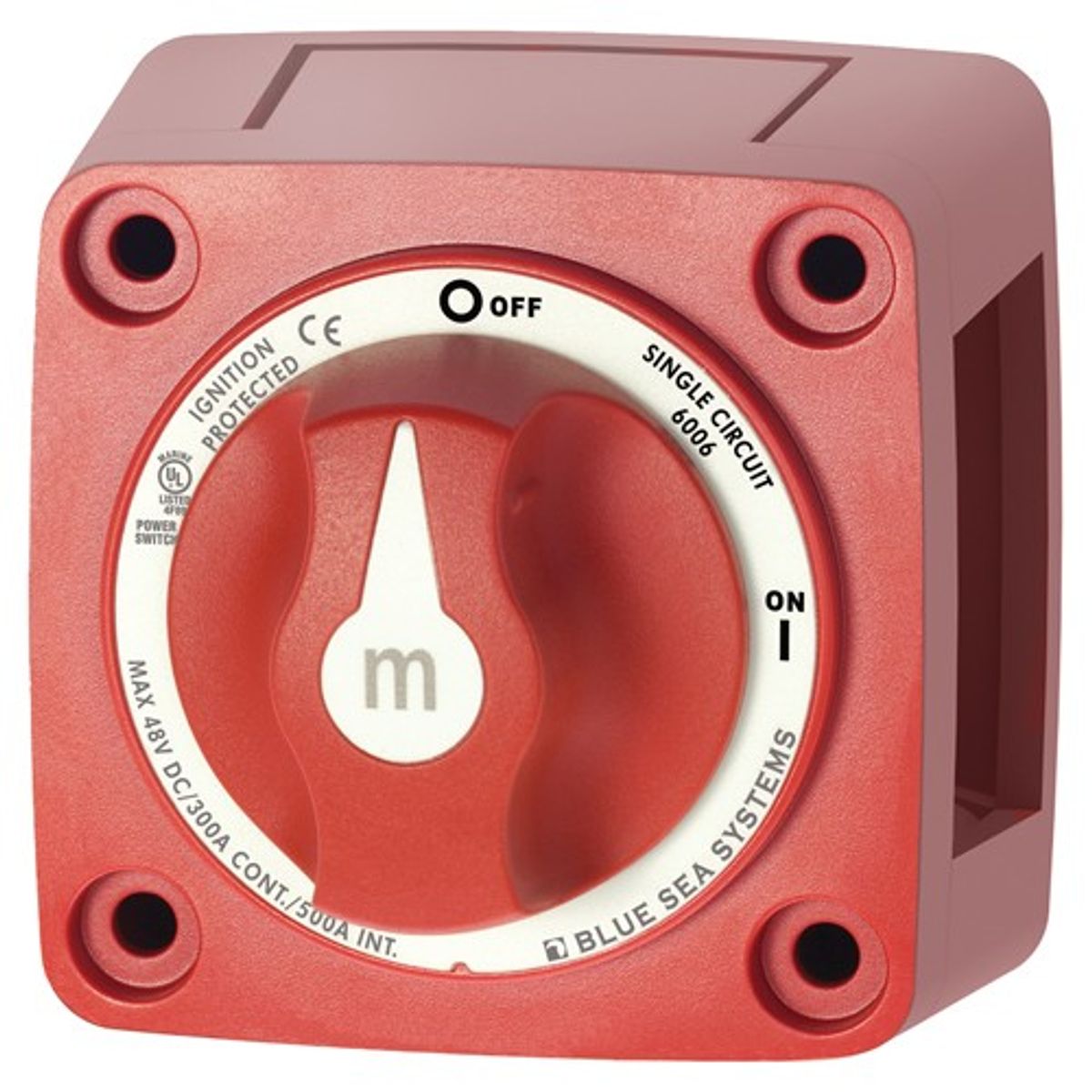

Blue Sea Mini Switch with Knob (300A / On/Off / Red)

Blue Sea Mini Switch with Knob (300A / On/Off / Red)

SKU:8-26006

Regular price £36.90
Regular price £45.95 Sale price £36.90
Sale Sold out
Tax included. Shipping calculated at checkout.

Blue Sea 6006 M-Series Battery Switch with 300 amp continuous rating for outboards and small gasoline or diesel engines.
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
One-piece terminal stud design never loosens over time
7/8" (22.22mm) stud length accepts multiple cable terminals
Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
Case design allows surface, rear, or front panel mounting options

Paralleling Link BUS 8-29159

Specifications:
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 120 in-lbs
Mounting Holes: Accept #10 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance: 1.12" (28.4mm)
