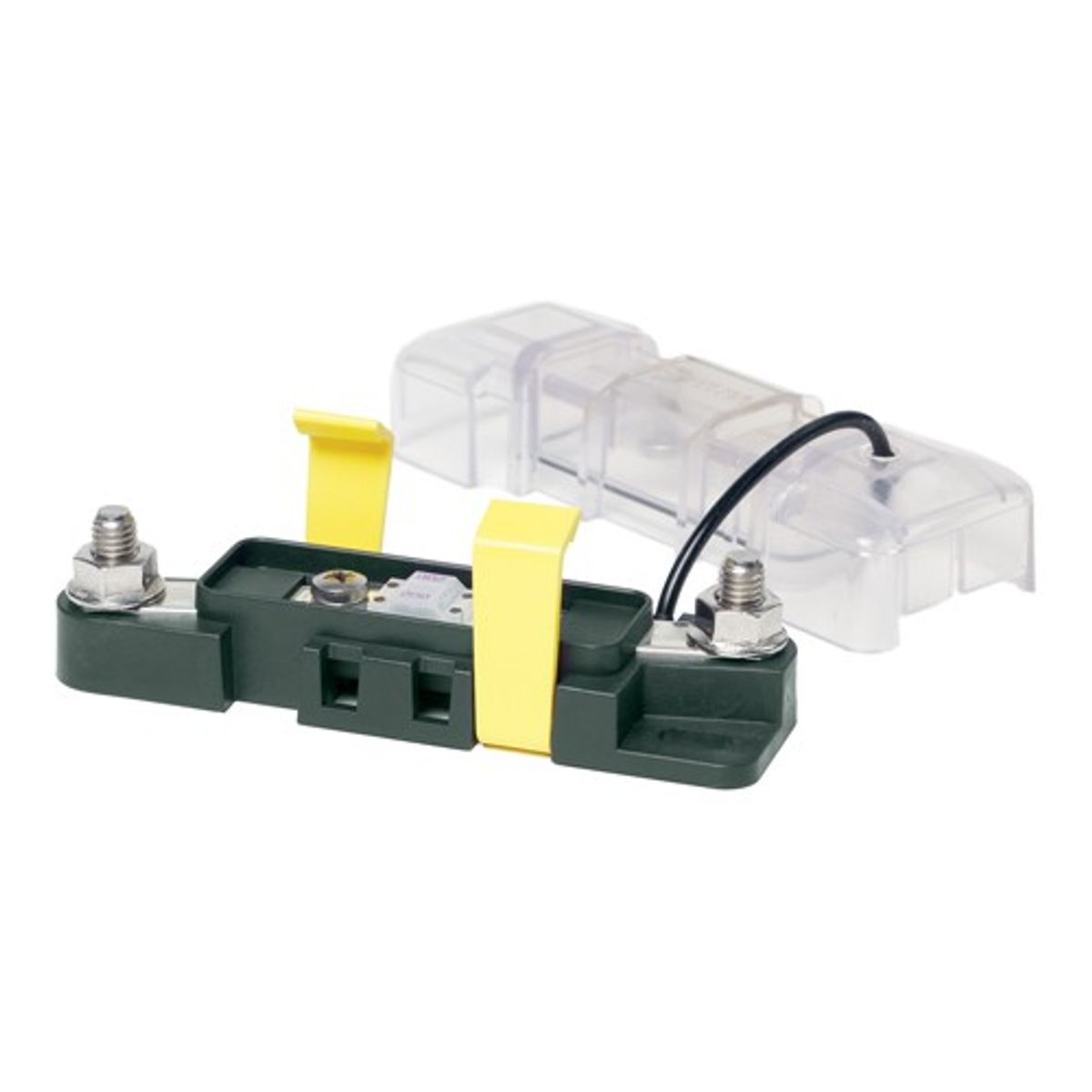

Blue Sea Midi / AMI Safety Fuse Block (200A Max)
Blue Sea Midi / AMI Safety Fuse Block (200A Max)
SKU:8-27720
Couldn't load pickup availability
Blue Sea Midi / AMI safety fuse block is ignition protected for installation aboard gasoline or diesel powered boats.
- Sealed cover protects fuses from the harsh marine environment.
- Insulating cover satisfies ABYC/USCG insulation requirements.
- Cover breakouts allow wire access in any direction.
- 200A maximum with 2/0 cable.
- Fuse sold separately.
Maximum Amperage: 200A with 4/0 AWG (70mm) cable
Maximum Voltage: 32V DC
Stud Size: M8 x 1.25
Fuse Screw: M5 x 0.8
Recommended Screw Torque: 27 in-lb (3.05 N·m)
Recommended Stud Torque: 120 in-lb (13.56 N·m)
Ring Terminal Size: M8 (5/16")
Weight: 0.15lb (0.07 kg)
Approvals: CE, Ignition Protected, IP66, ISO 8846 Marine, SAE J1171 Marine, UKCA
