Blue Sea MaxiBus Busbar (250A / 6 x 5/16" Connections)
Blue Sea MaxiBus Busbar (250A / 6 x 5/16" Connections)
SKU:8-22126
Couldn't load pickup availability

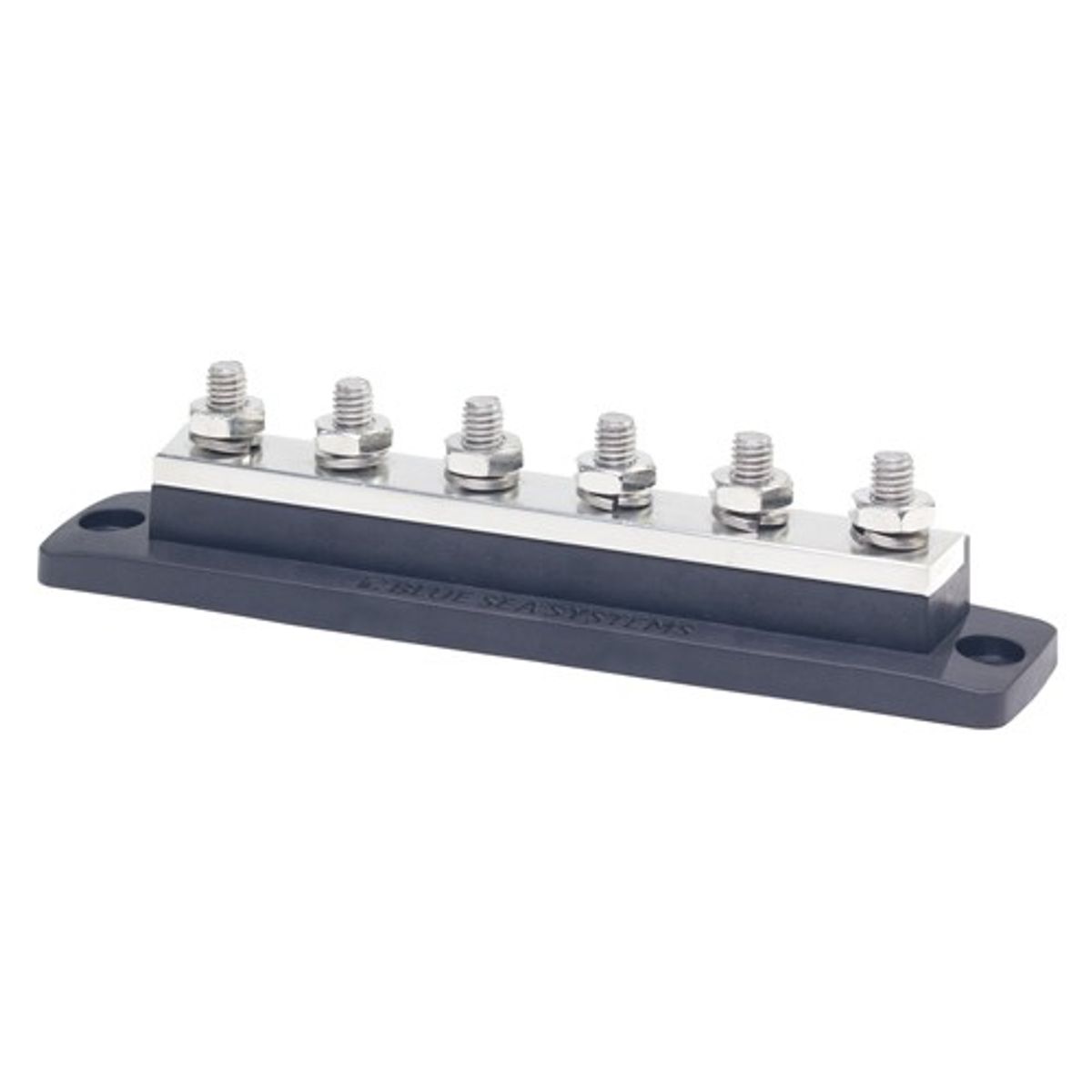

Blue Sea 2126 MaxiBus 250A common busbar with insert moulded stainless steel studs that eliminate the need for a securing nut and allow high torquing for excellent electrical contact.
Busbars are used to consolidate multiple wires or feed multiple circuits.
The raised bus provides easy access to multiple wires on a single stud. The UL 94-V0 rated glass reinforced plastic base resists high heat.
Recessed mounting holes eliminate accidental shorts to aluminium and steel mounting surfaces.
Specifications:
Continuous Rating: 250A AC & DC
Voltage Maximum Operating: 300V AC / 48V DC
Number of Terminal Studs: 6
Terminal Size: 5/16"-18 Stud
Recommended Stud Torque: 132 in-lb (14.91 N·m)
Mounting Holes: Accepts #10 (M5) Screws
Bus Material: Tin-Plated Copper (CDA 110/UNS C11000)
Approvals: CE marked & UKCA
8-22718 - Fully enclosed insulating cover available to purchase separately. Insulating cover with breakouts for easy wire access and meets ABYC insulation requirements.
