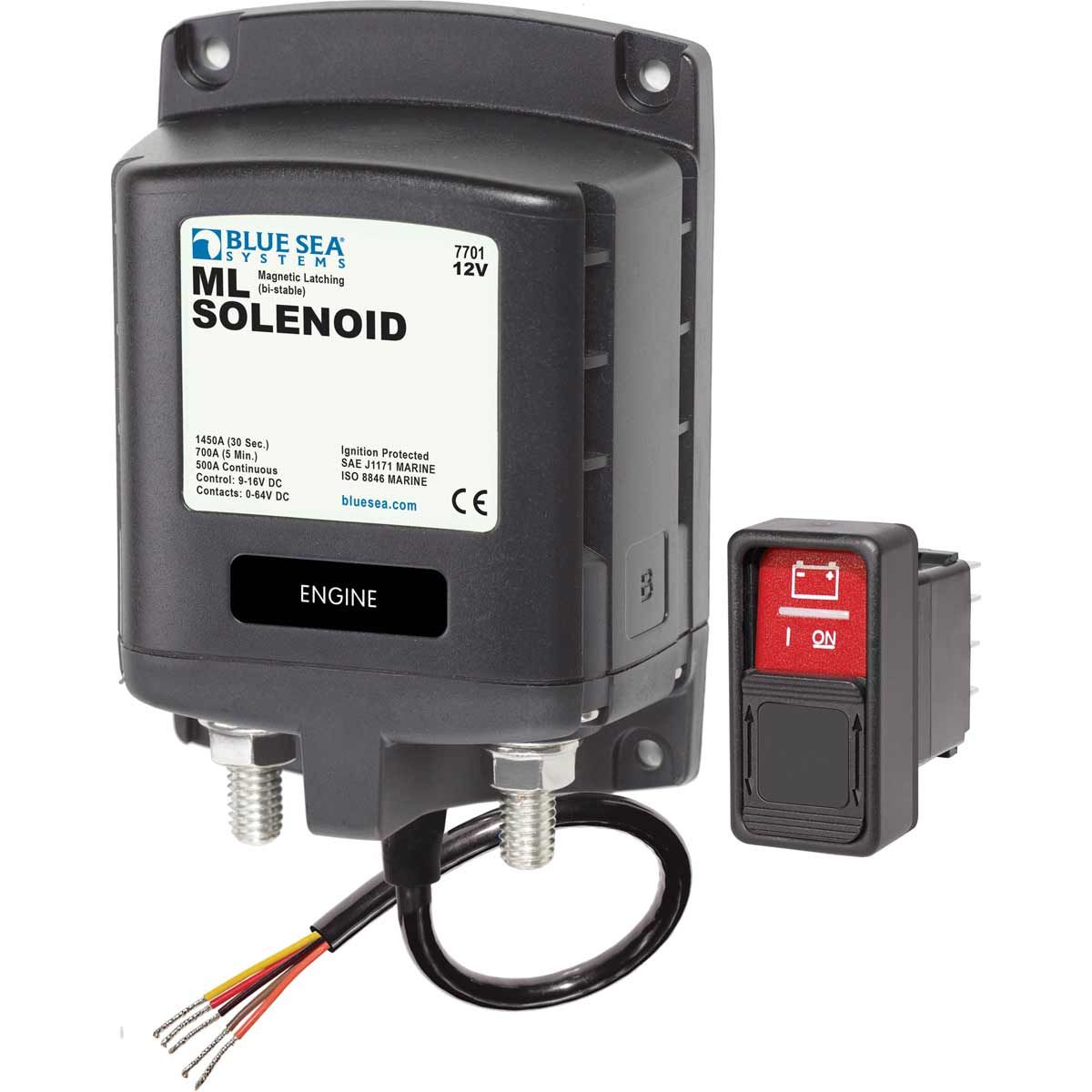

Blue Sea Magnetic Latching Solenoid Switch (12V)

Blue Sea Magnetic Latching Solenoid Switch (12V)

SKU:8-27701

Regular price £460.97
Regular price £460.97 Sale price £460.97
Sale Sold out
Tax included. Shipping calculated at checkout.

Blue Sea 500 Ampere Bi-Stable Magnetic Latching Solenoid 7701 allows high-amp switching under load where manual control is not required. For engine, inverter, house loads, and emergency battery combine.
500 Ampere continuous rating
Bi-Stable Magnetic Latch (ML) - draws no current in the ON or OFF state
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7/8" (22mm) stud length accepts multiple cable terminals
Label recesses for circuit identification
Silver alloy contacts provide high reliability for switching live loads
Label recesses for circuit identification
Retail packaging includes ML-Series Remote Control Contura Switch 2145

Control Circuit Connection: Tinned Wire
Nominal Voltage: 12V DC
Manual Control: No
Coil Function: Bi-Stable
Mounting: #10
Amperage Operating Current continuous: 0A
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Continuous Rating: 500A
Intermittent Rating (5 min): 700A
Starting Rating 30 sec: 1450A DC
Cable Size to Meet Ratings: 2x (4/0)
Stud Material: Tinned Copper
Switching Rating: 25A
Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
Terminal Stud Length: 0.875" (22.23 mm)
Terminal Stud Size: 3/8" - 16 (M10)
Weight: 2.03lb (0.92 kg)

Approvals: CE, Ignition Protected, IP66, ISO 8846 Marine, SAE J1171 Marine
