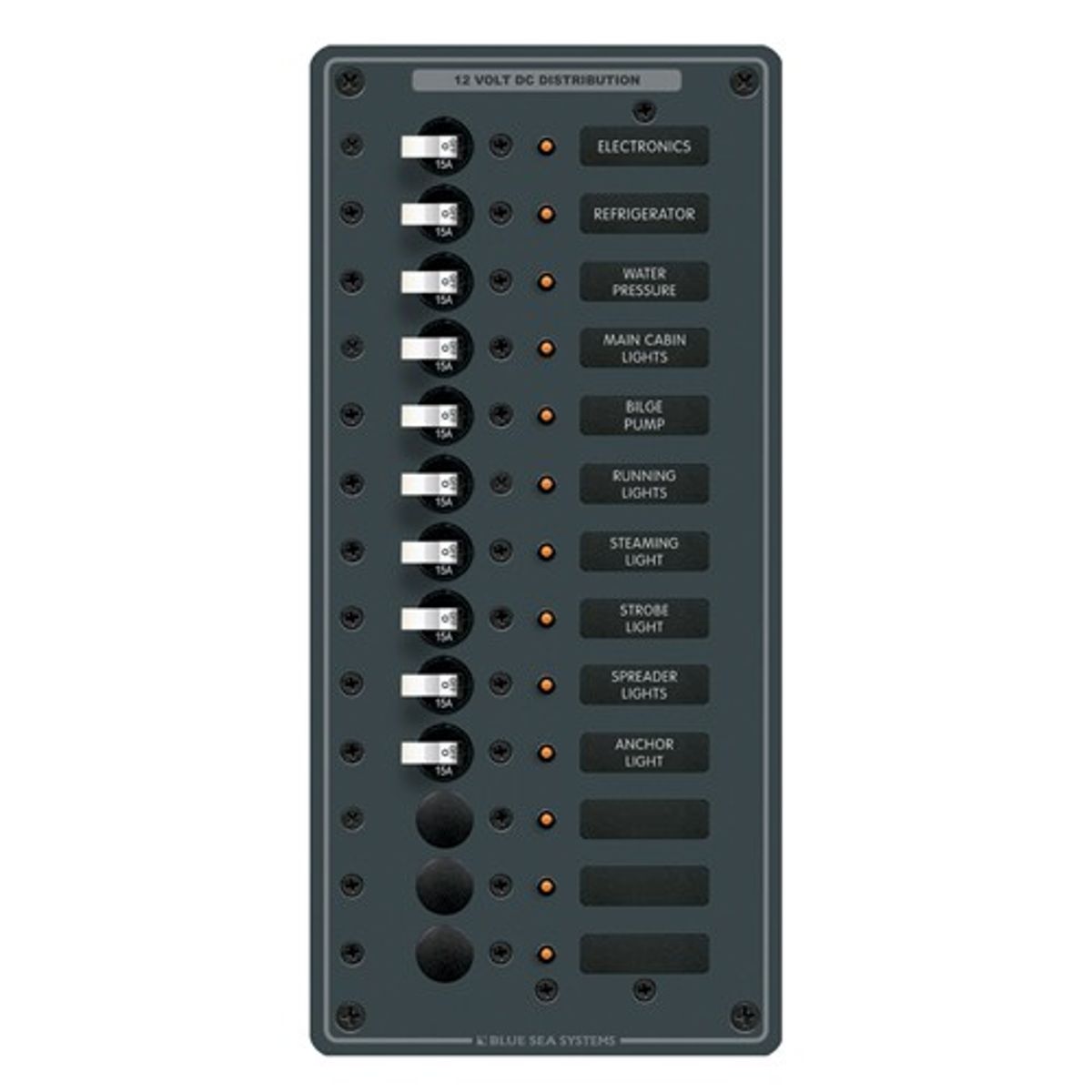

Blue Sea DC Circuit Breaker Panel Vertical (12V & 24V / 13-Way / 15A)
Blue Sea DC Circuit Breaker Panel Vertical (12V & 24V / 13-Way / 15A)
SKU:8-28376
Couldn't load pickup availability
Blue Sea traditional metal 12V / 24V DC circuit breaker panel 13-position, featuring 10 toggle circuit breakers and 3 blanks.
Detailed installation instructions and cut-out template
Ten 15 Amp A-Series circuit breakers installed
Includes set of 30 common DC labels
All positive, neutral & safety ground buses installed, fully pre-wired
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions
Maximum Amperage: 100A per bus
Includes:
10x A-Series White Toggle Circuit Breaker - Single Pole 15A (7210)
Basic DC Panel Label Set - 30 Labels (8030)
The Elements of a Superior Electrical Panel:
Countersunk mounting holes throughout
Heavy 1/8" aluminium 5052 alloy
Immersion Undercoating for lifetime corrosion resistance
Two-part polyurethane slate grey finish
Flush fitting backlightable labels (with label backlighting pre-installed)
"ON" indicating LED's for each circuit
Over 500 labels available worldwide
Industry standard circuit breakers
Industry standard height and width - allowing them to be stacked together
Wide range of compatible DC Analogue and Digital Meters
