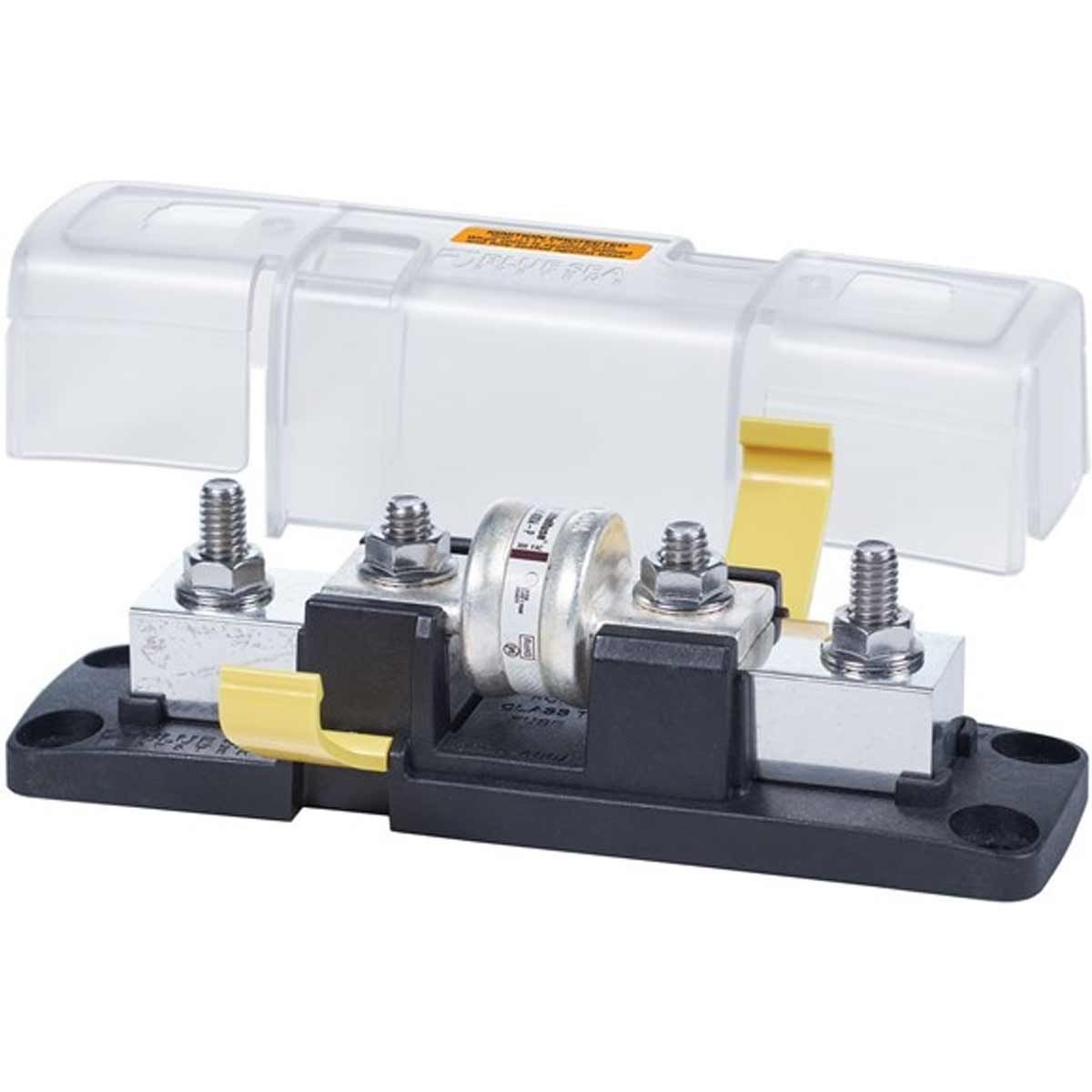

Blue Sea Class T Fuse Block Ignition Protected (225-400A)
Blue Sea Class T Fuse Block Ignition Protected (225-400A)
SKU:8-25502100
Couldn't load pickup availability
Blue Sea Class-T Fuse Block 5502100 suitable for 225 amp to 400 amp fuses, supplied complete with insulating cover. This fuse block allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics.
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
- Ignition Protected
Cable Size: Up to 4/0 AWG
Ignition Protected: Yes
Maximum Amperage: 320A, 300A if inside engine space and continuous
Maximum Voltage: 160V DC
Fuse Mounting Blocks: Tin-Plated Copper
Mounting Fastener Size: 1/4" or M6 Hardware
Terminal Stud Size: 5/16"-18 (M8)
Weight: 0.5 kg (1.10lb)
Approvals: Ignition Protected, ISO 8846 Marine & SAE J1171 Marine
