Blue Sea Class T Fuse Block Ignition Protected (110-200A)
Blue Sea Class T Fuse Block Ignition Protected (110-200A)
SKU:8-25007100
Couldn't load pickup availability

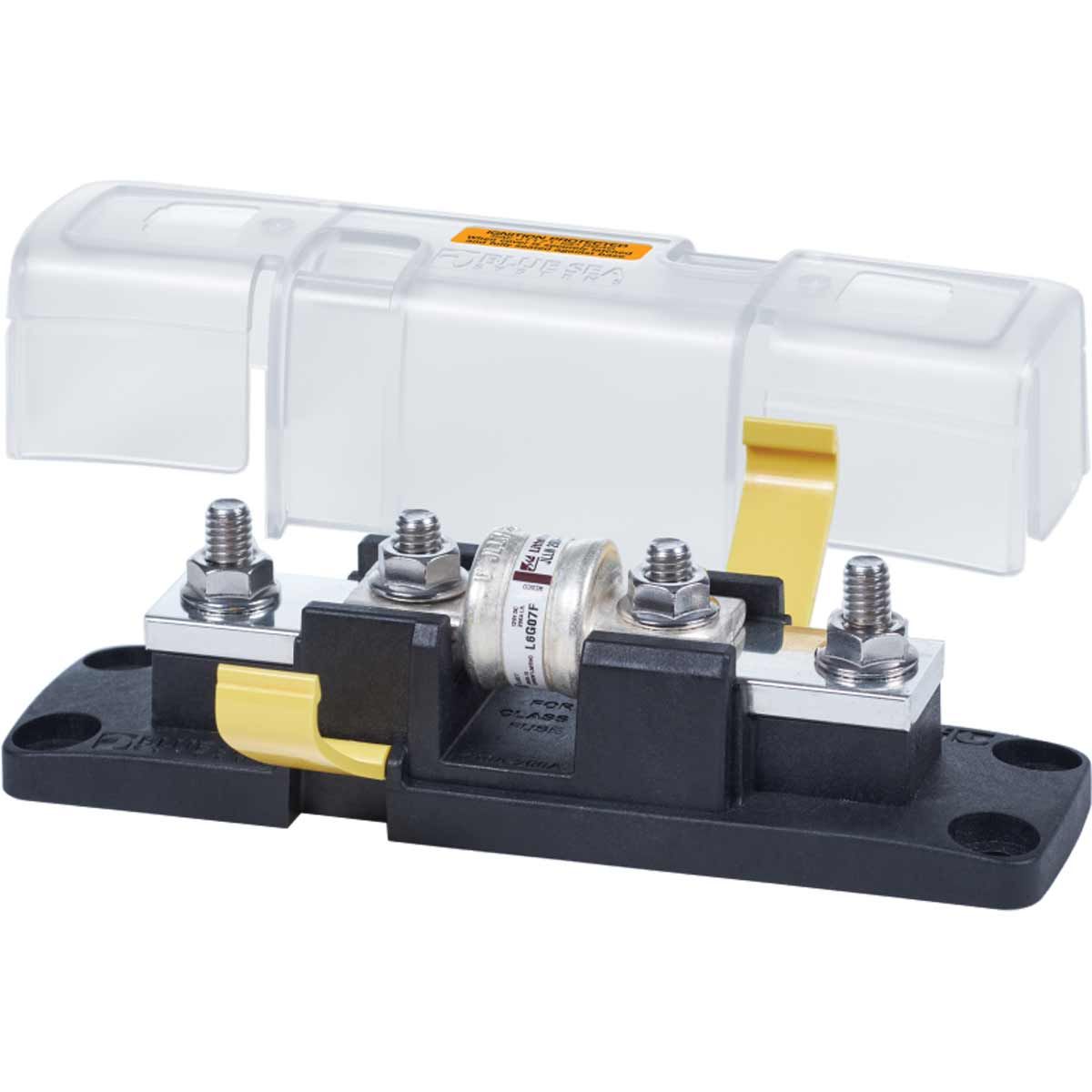

Blue Sea Class T Fuse Block 5007100 with insulating cover suitable for 110A to 200A. This fuse block allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics. Featuring a four stud design which provides ample access around connecting stud to install large cable lugs without obstruction from the fuse.
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
- Ignition Protected
Cable Size: Up to 4/0 AWG
Ignition Protected: Yes
Maximum Amperage: 160A
Maximum Voltage: 160V DC
Fuse Mounting Blocks: Tin-Plated Copper
Maximum Torque: 190 in-lb (21.47 Nm), 72 in-lb (8.13 Nm)
Mounting Fastener Size: 1/4" or M6 Hardware
Terminal Stud Size: 1/4"-20 (M6)
Weight: 0.5 kg (1.10lb)
Approvals: Ignition Protected, ISO 8846 Marine & SAE J1171 Marine
