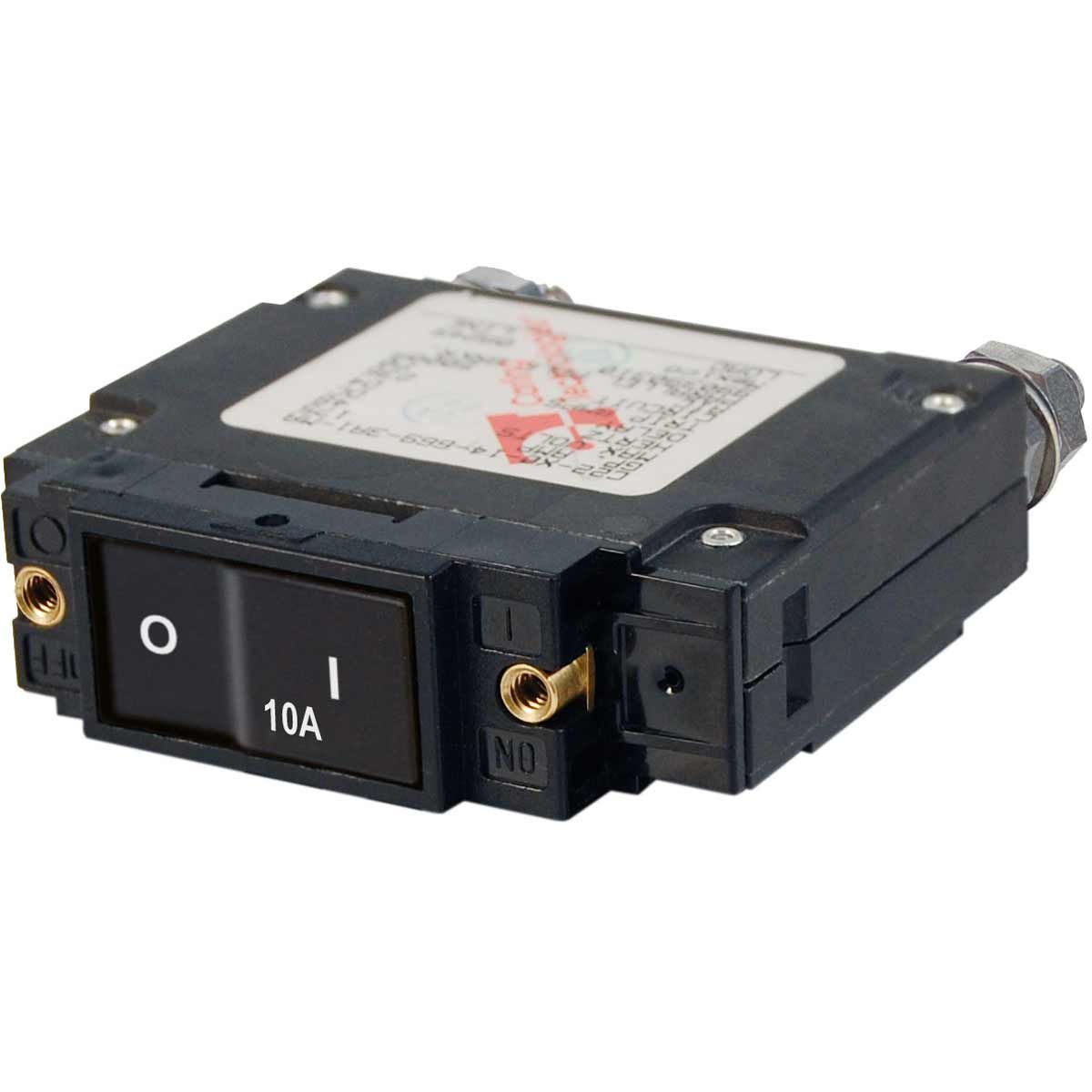

Blue Sea C Series Flat Rocker Circuit Breaker (10A / Single Pole)
Blue Sea C Series Flat Rocker Circuit Breaker (10A / Single Pole)
SKU:8-27541
Couldn't load pickup availability
Blue Sea C-Series Flat Rocker Circuit Breaker Switch - Single Pole 10A (AC/DC)
Standard circuit breaker used on the 360 Panel System (1200 Series)
Flat actuator resists accidental switching by being flush in the ON position
Single pole is frequently used for AC or DC Branch circuit protection
International ON & OFF symbols support vertical or horizontal mounting
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
- Colour actuator indicates "OFF" position
- Provides overcurrent protection for inverters, bow thrusters and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
- Ignition protected - safe for installation aboard gasoline powered boats
Actuator Style: Flat Rocker actuator resists accidental switching by being flush in the ON position
Poles: 1
Circuit Breaker Type: Magnetic Hydraulic - trip free
Terminal Stud: 1/4"-20 Tin-Plated Brass
Terminal Stud Torque: 35 in-lb (3.95 Nm)
Interrupt Capacity: 3000A @ 120V AC, 3500A @ 240V AC, 5000A @ 32V DC
Mounting Screw: 6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Switching Cycles: 10000
Weight: 0.28lb (0.13 kg)
