Blue Sea Black MaxiBus Busbar (250A / 2x 5/16" & 12 x 10-32)
Blue Sea Black MaxiBus Busbar (250A / 2x 5/16" & 12 x 10-32)
SKU:8-22105
Couldn't load pickup availability

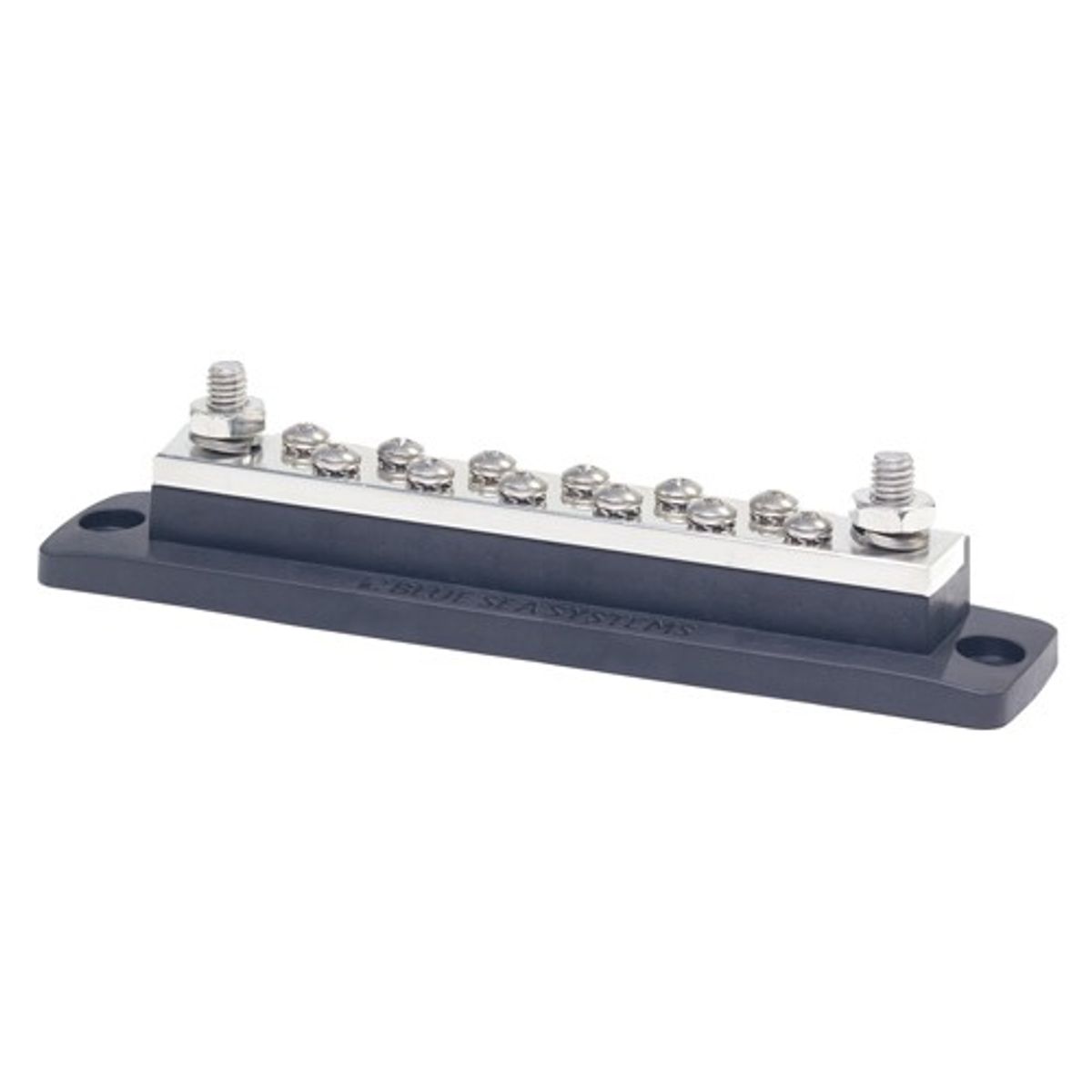

Blue Sea 2105 MaxiBus 250A common busbar with insert moulded stainless steel studs that eliminate the need for a securing nut and allow high torquing for excellent electrical contact.
Busbars are used to consolidate multiple wires or feed multiple circuits.
Raised bus provides easy access to multiple wires on a single screw or stud
UL 94-V0 rated glass reinforced plastic base resists high heat
Recessed mounting holes eliminate accidental shorts to aluminium and steel mounting surfaces
Specifications:
Continuous Rating: 250A AC & DC
Voltage Maximum Operating: 300V AC / 48V DC
Number of Screw Terminals: 12
Number of Terminal Studs: 2
Terminal Size: #10-24 Screws and 5/16"-18 Studs
Mounting Holes: Accepts #10 (M5) Screws
Bus Material: Tin-Plated Copper (CDA 110/UNS C11000)
Recommended Screw Torque: 23 in-lb (2.6 N·m)
Recommended Stud Torque: 132 in-lb (14.91 N·m)
Approvals: CE & UKCA
8-22718 Fully enclosed insulating base and cover available to purchase separately. Insulating cover features breakouts for easy wire access and meets ABYC insulation requirements.
