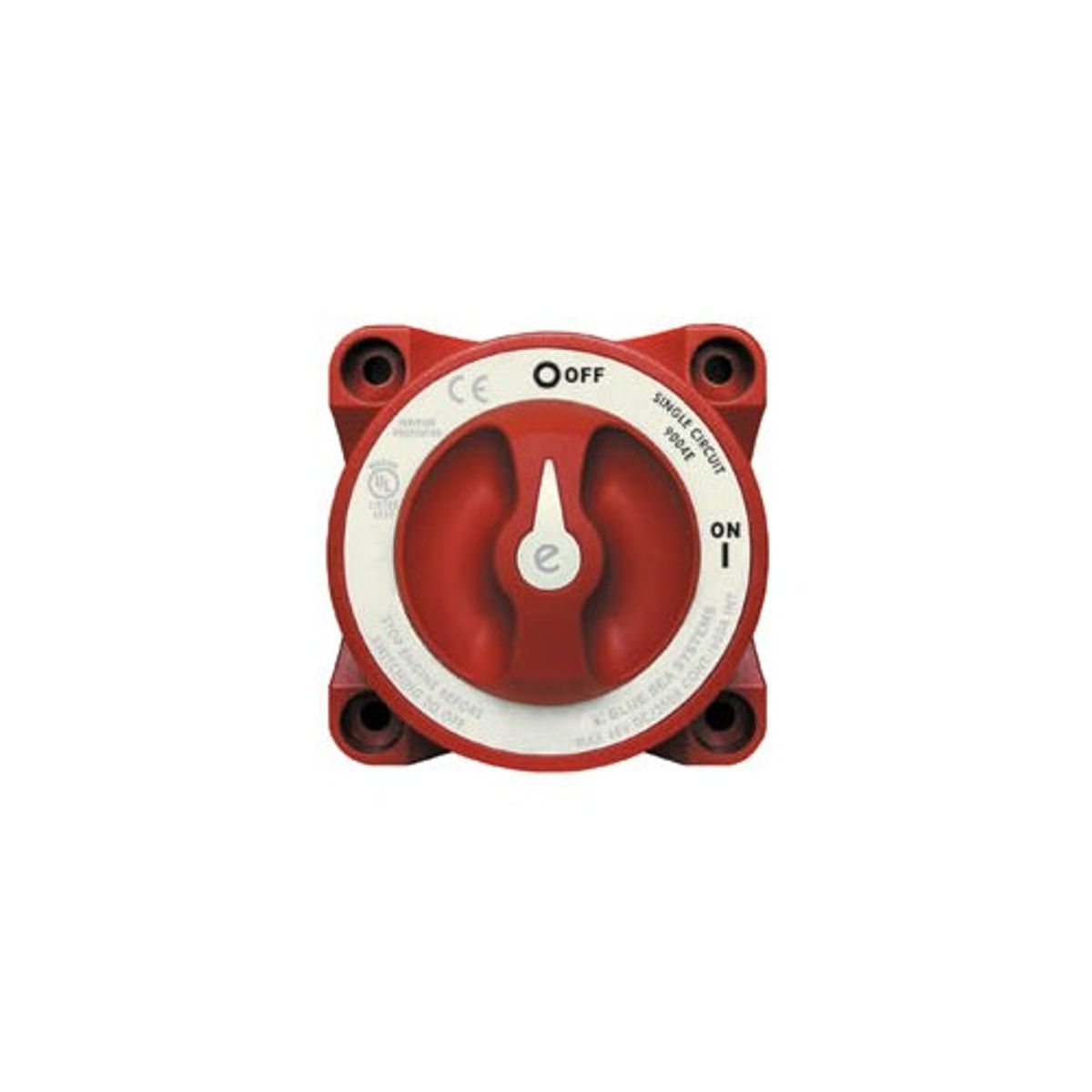

Blue Sea Battery Switch 9004E with AFD (350A / On/Off)

Blue Sea Battery Switch 9004E with AFD (350A / On/Off)

SKU:8-29004

Regular price £121.78
Regular price £114.95 Sale price £121.78
Sale Sold out
Tax included. Shipping calculated at checkout.

Blue Sea 9004e E-Series Battery Switch with 350 amp continuous rating for inboard gasoline and diesel engines. Switches a single battery to a single load group. This battery switch includes Alternator Field Disconnect (AFD).
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
One-piece terminal stud design never loosens over time
Case design allows surface or rear panel mounting options
Label with international legends
Tactile indicator conveys knob position by feel

Specifications:
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 140 in-lbs
Mounting Holes: Accepts M6 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance: 1.10" (28mm)
