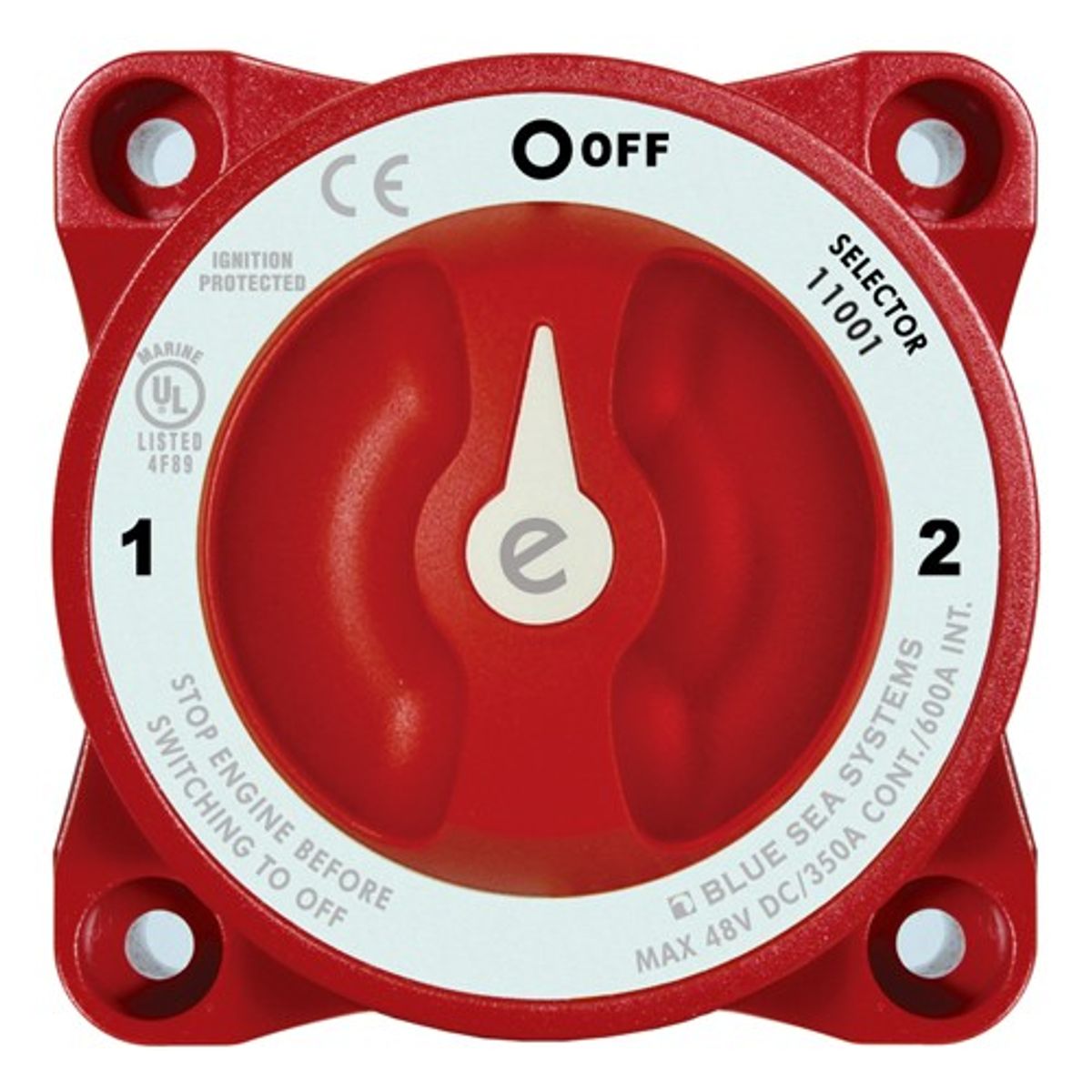

Blue Sea Battery Switch 11001 with AFD (350A / 1/Off/2)
Blue Sea Battery Switch 11001 with AFD (350A / 1/Off/2)
SKU:8-28992
Couldn't load pickup availability
Blue Sea 11001 E-Series Battery Switch with 350 amp continuous rating for inboard gasoline and diesel engines. Switches a single battery to a single load group. This battery switch includes Alternator Field Disconnect (AFD).
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
One-piece terminal stud design never loosens over time
Case design allows surface or rear panel mounting options
Label with international legends
Tactile indicator conveys knob position by feel
Regulatory
CE marked, ISO 8846
UL Listed - UL 1107 electric power switches
Meets ABYC requirements
Meets UL1500 and SAE J1171 external ignition protection requirements
IP66 protects against powerful water jets
Specifications
Cranking Rating: 10 sec. 2000A
Intermittent Rating: 5 min. 600A
Continuous Rating: 350A
Voltage Maximum Operating: 32V DC
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 140 in-lbs
Mounting Holes: Accept M6 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance: 1.10" (28mm)
