Blue Sea Auto Charging Relay Battery Link (12V/24V DC / 120A)
Blue Sea Auto Charging Relay Battery Link (12V/24V DC / 120A)
SKU:8-27611
Couldn't load pickup availability
Blue Sea 7611 BatteryLink™ Automatic Charging Relay automatically shares single source of charge with auxiliary battery.
Features
120 Amp continuous rating
12/24V DC auto ranging voltage input
Senses charging on two battery banks
Side and bottom knockouts for cable connections
Clip-on cover insulates terminal connections
7/8" (22 mm) stud length to accept multiple cable terminals
Integrated LED indicates ACR status
1?4" x 0.032" male quick connect terminals for ground and optional features
Largest battery bank cannot exceed Group 27
Optional Features
Optional Auxiliary Battery Priority connection shares the alternator charge with the Auxiliary battery longer when the engine is running to allow the use of auxiliary loads for an extended period of time
Remote LED remotely indicates ACR states - requires optional LED

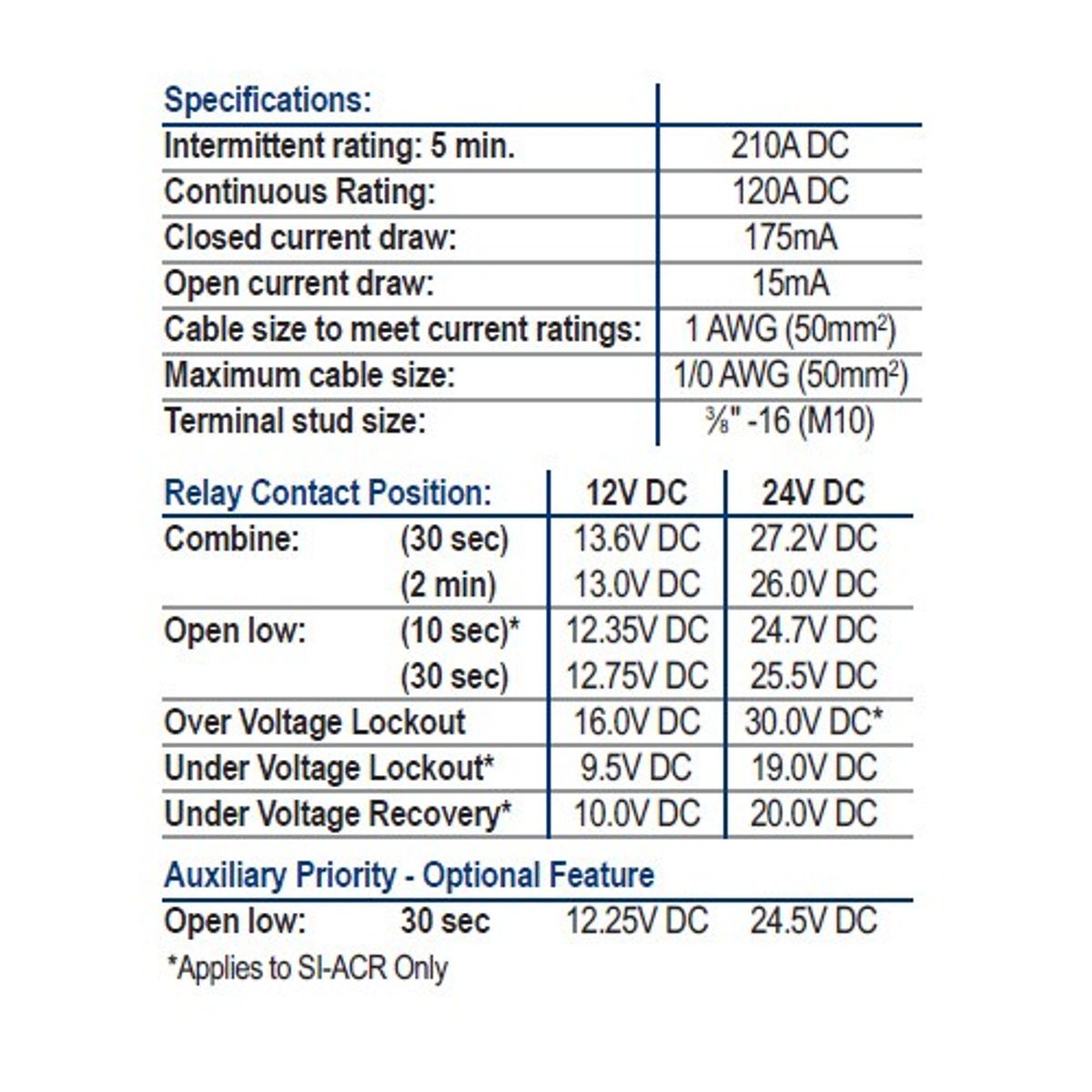

Specifications
Nominal Voltage: 12V DC & 24V DC
Auxiliary Battery Priority: Yes
Amperage Operating Current: 175mA @ 12V (Combine), 115mA @ 24V (Combine), 15mA (Open)
Continuous Rating: 120A
Intermittent Rating (5 min): 210A
Maximum Cable Size: 1/0 AWG
Maximum Torque: 140 in-lb (15.82 Nm)
Stud Material: Tinned Copper
Terminal Stud Size: 3/8" - 16 (M10)
Relay Contact Position
Combine 30 sec: 13.6V @ 12V, 27.2V @ 24V
Combine 2 Min: 13.0V @ 12V DC, 26.0V @ 24V DC
Open Low: 12.75V @ 12 V, 25.5V @ 24 V
Overvoltage Lockout: 16.0V @ 12 V, 32.0V @ 24 V
Auxiliary Priority
Open Low: 12.25V @ 12V, 24.5V @ 24V
Weight: 1.25lb (0.57 kg)
Approvals: CE, Ignition Protected, IP67, ISO 8846 Marine, SAE J1171 Marine
