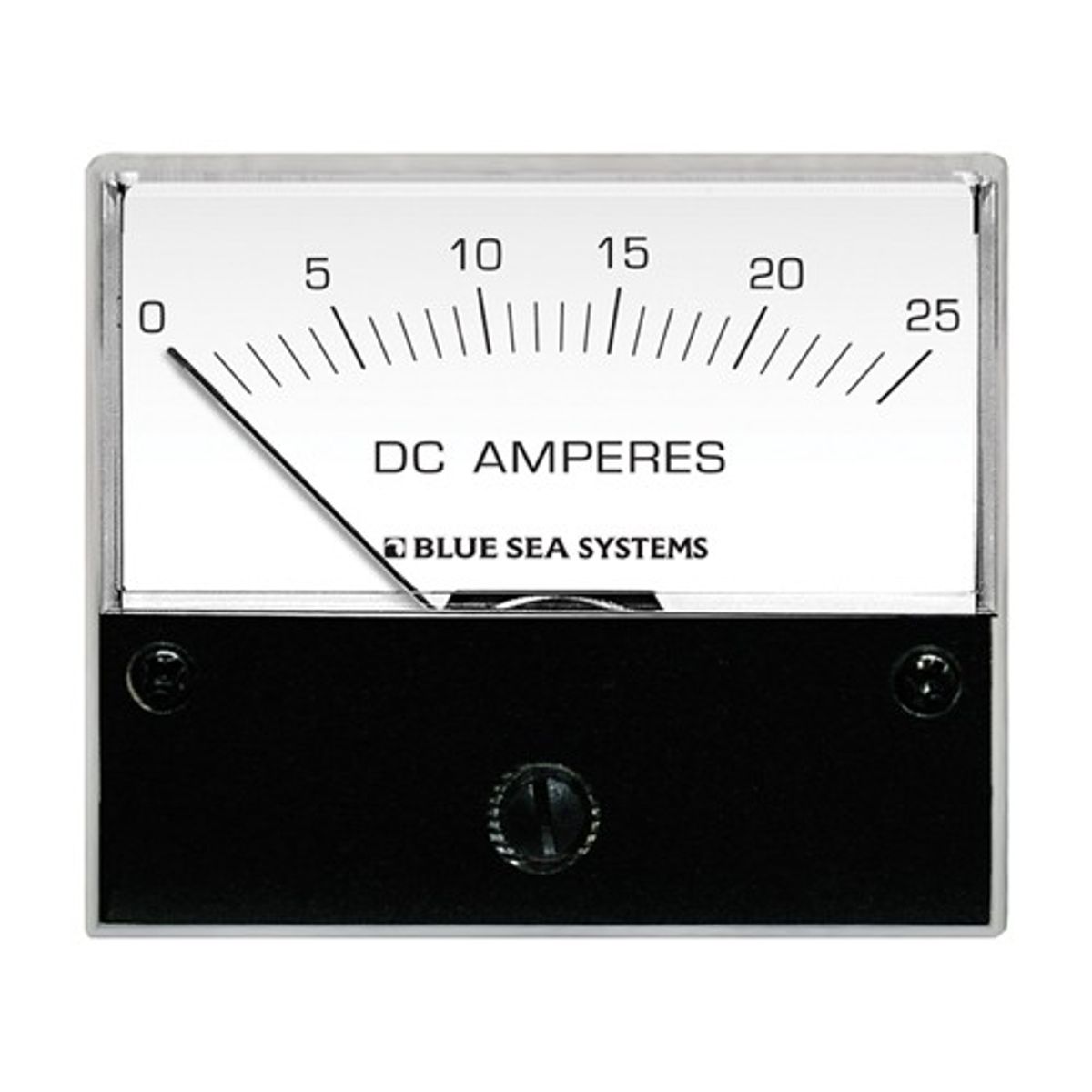

Blue Sea Ammeter Analogue (0-25 Amps) 8-28005

Blue Sea Ammeter Analogue (0-25 Amps) 8-28005

SKU:8-28005

Regular price £77.46
Regular price £105.95 Sale price £77.46
Sale Sold out
Tax included. Shipping calculated at checkout.

Blue Sea 8005 DC analogue ammeter with simple 2 wire connection from shunt, no other power required. The meter senses and powers from shunt connection. Backlit meter face (separate 12 or 24V DC backlight connections).
Accuracy: 3% of scale range
Operating Amperage at full scale: 1 Milliamp
Dimensions
Standard: 60.33 x 71.12mm (2.375" x 2.8")
Meter: Current
Face Size: 69.85mm (2.75")
Function: 0 to 25A
Backlighting Amperage: 16mA @ 12V DC, 20mA @ 24V DC
Shunt Type: Internal
Weight: 0.26lb (0.12 kg)
