Blue Sea A-Series Toggle Circuit Breaker (40A / White / Single Pole)
Blue Sea A-Series Toggle Circuit Breaker (40A / White / Single Pole)
SKU:8-27226
Couldn't load pickup availability

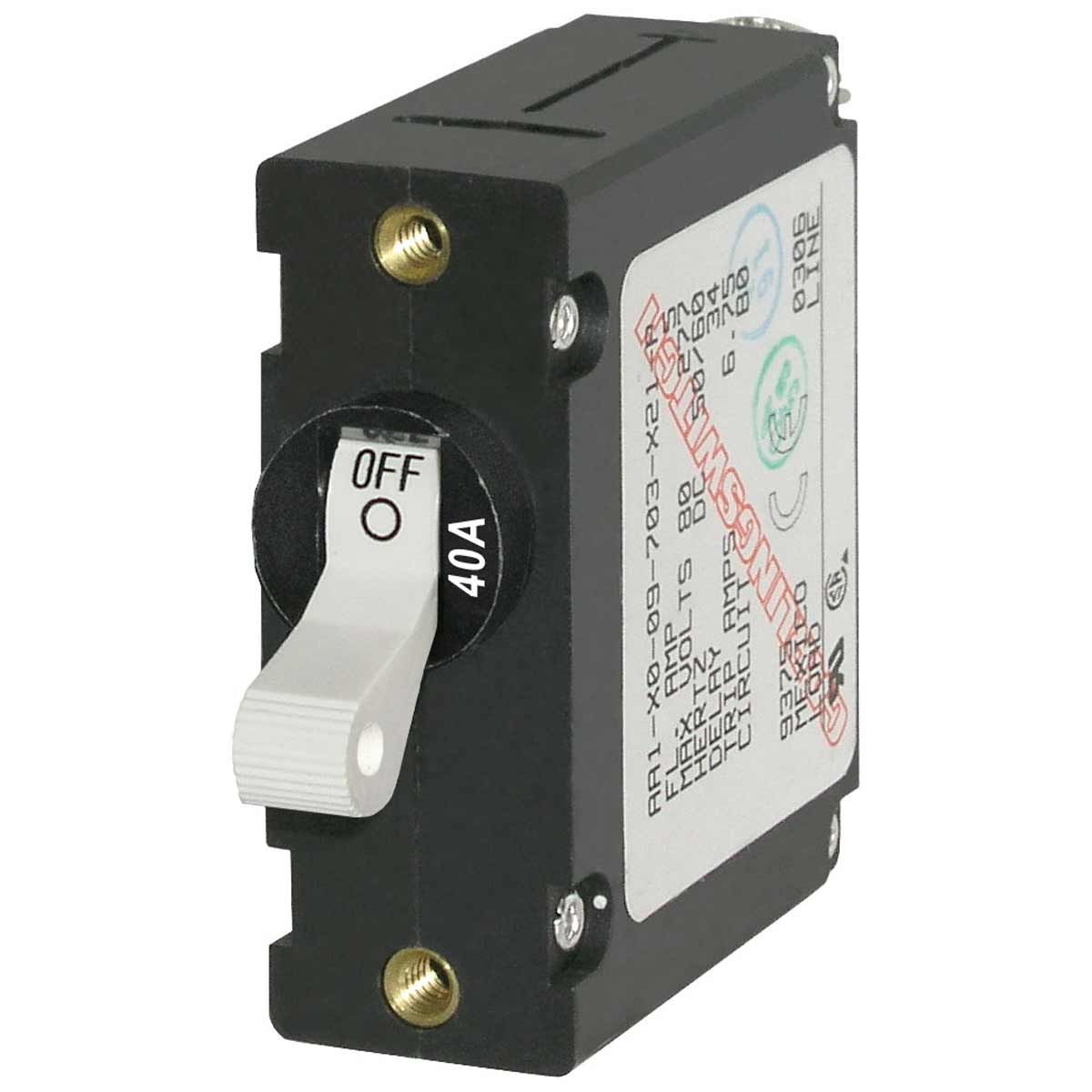

Blue Sea 7226 A-Series white toggle circuit breaker is a single pole magnetic AC / DC breaker rated 40 amps.
Meets American Boat and Yacht Council (ABYC) standards
The industry standard circuit breaker for Blue Sea Systems' electrical panels
Combines switching and circuit protection into a single device
"Trip Free" design cannot be held "ON" during fault current condition
Specifications
• Amperage: 40A AC / 40A DC
• Colour: White
• Actuator Style: Toggle
• Poles: 1
• Maximum Voltage: 240V AC / 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A @ 120V AC // 1500A @ 240V AC [TUV] // 3000A @ 240V AC [UL 1077] // 7500A @ 65V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screws: #10-32 Stainless Steel
• Weight: 0.17lb (0.08 kg)
• Approvals: CE, SA, TÜV, UL 1077
