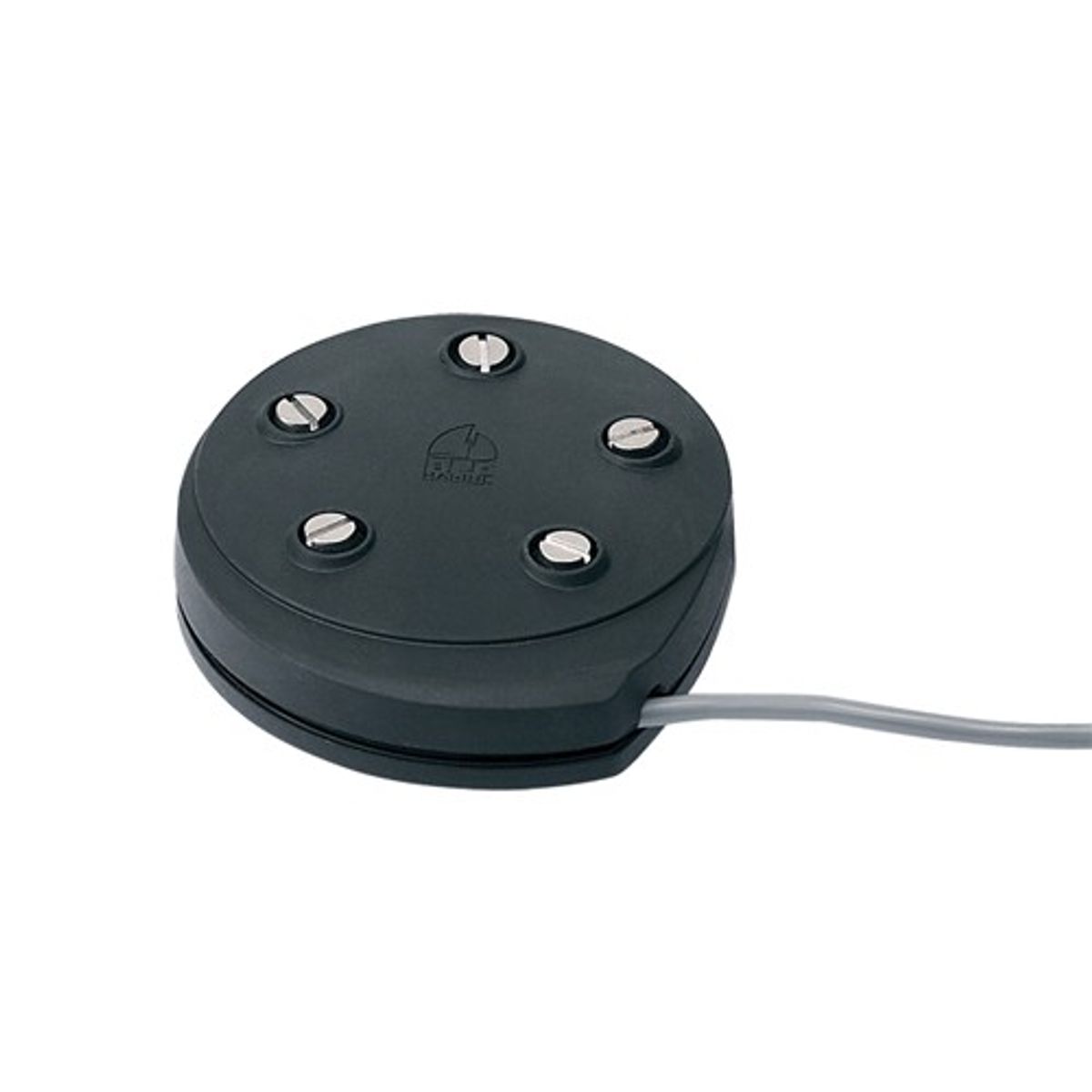

BEP Ultrasonic Tank Sender TS1 8-94150

BEP TS1 Ultrasonic Tank Sender - No Moving Parts.
• Handles common outputs – 240-33, 10-180, Vetus 10-300 for analogue resistive gauges (not suitable for resistive digital gauges or CAN systems) and 0-5V tanks from BEP, Teleflex, Faria, VDO and many other popular instrument brands. (When connecting to non-adjustable gauges the TS1 must be pre-calibrated)
• Low Profile Design and standard SAE 5 hole mounting pattern, allowing it to be retrofitted to practically all other sender brands
• Can be set for tank dimensions via computer using BEP Marine’s proprietary TS1 software, avoiding experimental tank filling on site.
• Connects directly to the DC systems monitors (80-600-0021-00 & 80-600-0022-00) when configured to a 0-5V output
• Is set for 0-2000 mm depth off the shelf (not suitable for tank depths less than 200 mm) 8"
• Operating voltage: 10–32V
• Current draw: 25 mA with 5V gauge output
• Measurement method: Acoustic sonic measurement
• Tank depth: 0–6.5 ft (2000 mm)
• Accuracy Distance: 0–6.5 ft (2000 mm) at 2 mm accuracy
• Environmental temperature: 39.2–149°F (4–65°C)
• Chemical resistance: Petrol, diesel, water, toilet chemicals

BEP's proprietary Window's based software application allows for TS1 senders to be programmed specific to tank shape, size and fluid type via a computer's USB port. Programming is a simple process and can be carried out by downloading free software from www. BEP marine. com and purchasing a programming kit TS1-PK Part No. 8-94151. Once programmed, the specific tank parameters are stored in the non-volatile memory of the TS1.
