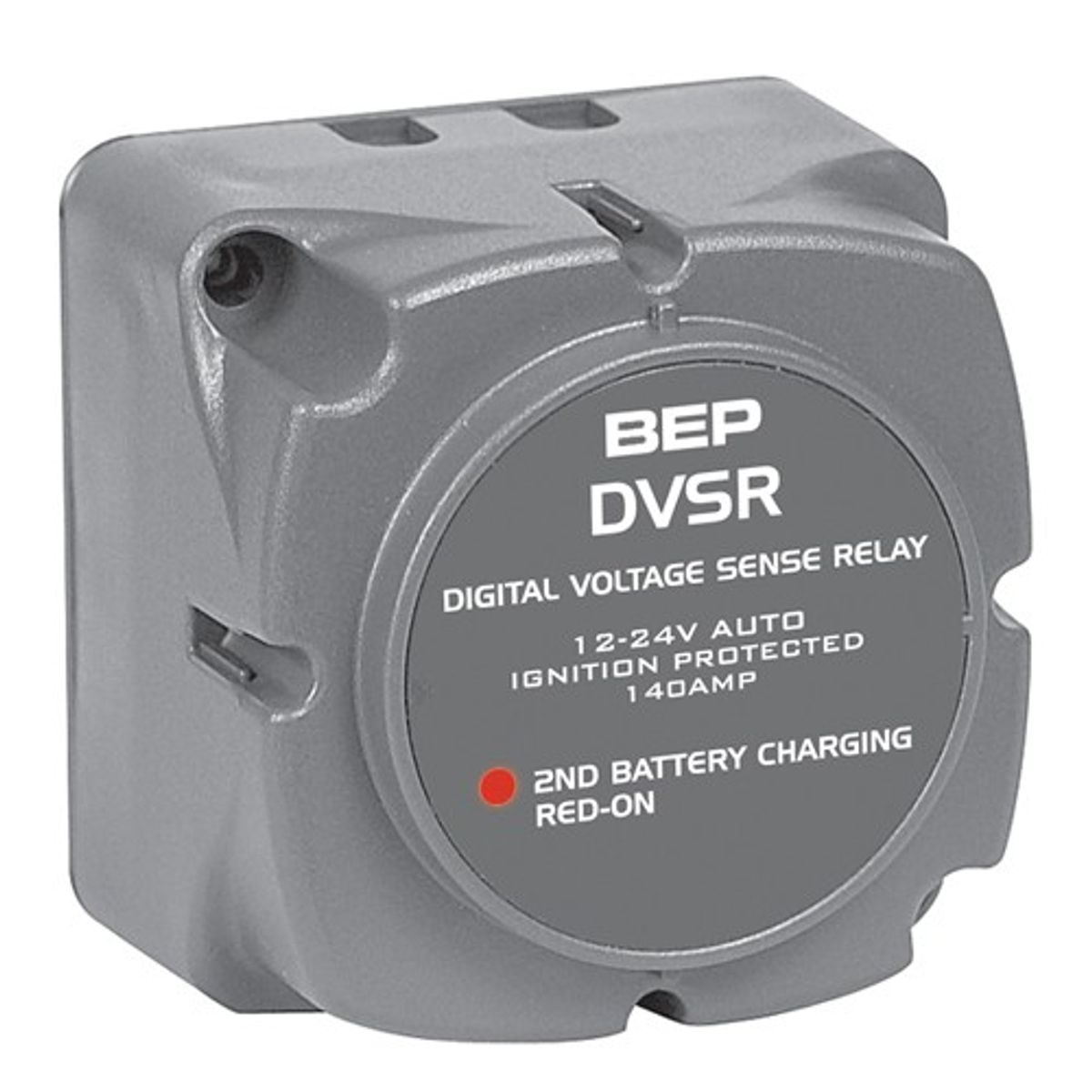

BEP DVSR Digital Voltage Sensing Relay (12V / 24V / 125A)
BEP DVSR Digital Voltage Sensing Relay (12V / 24V / 125A)
SKU:8-90060
Couldn't load pickup availability
The BEP Digital VSR (Voltage Sensing Relay) combines all of the market proven features of the existing VSR with a host of new functionality. The Voltage Sensing Relay (VSR) allows the charging of a second battery from a single charging source. When the voltage on the start battery rises to a level indicating a 60% charge, the VSR engages allowing the 2nd battery to charge. When charging stops and voltage falls the VSR will disengage isolating the two batteries from each other. Dual sensing functionality enables the sensing of two battery banks allowing two way charging.
- Safely charge two or more independent battery banks from one charge source (alternator, battery charger…)
- Charges engine starting batteries before combining auxiliary bank for charging
- Protects start batteries from becoming flattened by domestic loads
- Isolates electronics from harmful electrical surges from starter and winch motors
- Simple to install 3 wire connection, leaves alternator wiring intact
- No volt drop vs. diode isolators
- Ignition protected
- Surface or panel mountable
- Replaces previous models 710-125A and OEM 710-140A-B
Digital Technology Provides:
- Multi voltage, auto selects between 12V and 24V DC operation
- Digital circuits provide very low power consumption (<2mA in standby, up to 8x more efficient than analogue models) and enhanced performance
- Remote sensing circuitry allows optional connection from ignition switch, provides same functionality as single sense VSR and zero power consumption when engine is off
- Zero stand by current draw when remote sensing circuit utilized with storage mode switch fitted (switch in open position)
- Remote status LED output option
Part # 710-140A
OEM # 710-140A-B
LxWxH: 69mm x 69mm x 50mm (2.75" x 2.75" x 2")
Voltage: 12V / 24V DC
Rating Continuous: 125A
Rating Intermittent: 140A
Engages: 13.4V / 26.8V DC
Disengages: 12.8V / 25.6V DC
Cable to meet rating: 8 AWG (8mm2)
