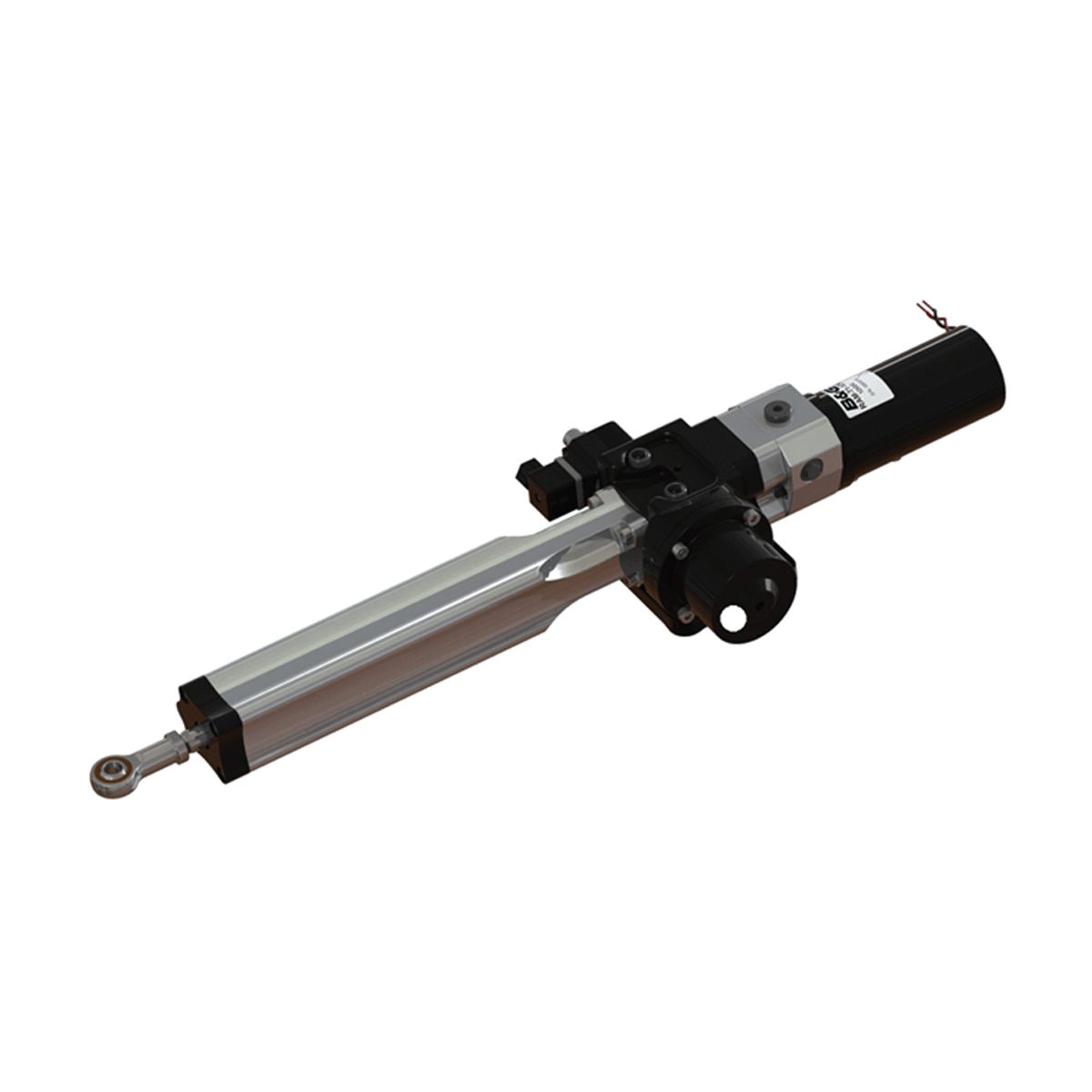

B&G Hydraulic Autopilot Ram T2 (12V)

B&G Hydraulic Autopilot Ram T2 (12V)

SKU:RAM-T2-12V

Regular price £2,264.41
Regular price £2,791.95 Sale price £2,264.41
Sale Sold out
Tax included. Shipping calculated at checkout.

A high power, efficient 12V hydraulic autopilot drive unit that enables the Power Steer Mode on a Pilot to be used in case of manual steering failure.

- Model: T2 12V
- Max boat size: 20,000kg
- Stroke: 250mm
- Hard over time: 9 seconds
- Tiller arm: 213mm
- Thrust: 700 kg/f
- Rudder torque: 149 kg/m
- Computer: NAC-3/H5000

- Typical Amp-hour 60kg at 25% duty (12V): 2.5
- Typical current intermittent 650kg (12V): 25.0
- Ingress protection: IP67
- EMC protection: BS EN 60945:2002 (DC)
- Ignition protection: BS EN 28846:1993
- Declaration of Conformity: EMC Directive 2014/30/EU
- Ambient operating temperature: -15 to + 55 deg C
- Max operating thrust: 700kg (Intermittent)
- Relief valve setting: 62 bar (730kg)
- Orientation - Red lead to positive - Extends
- Orientation - Black lead to positive - Retracts
- Clutch coil: 12 watt
- Clutch connection: DIN 43650 (6-8mm cable)
- Fluid: ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV

The following commercial fluids are suitable: Fuchs Renolin B 15 HV1, Seastar HA5430
